#include "fastjet/PseudoJet.hh"
#include "fastjet/ClusterSequenceActiveArea.hh"
#include <iostream>
#include <sstream>
#include <vector>

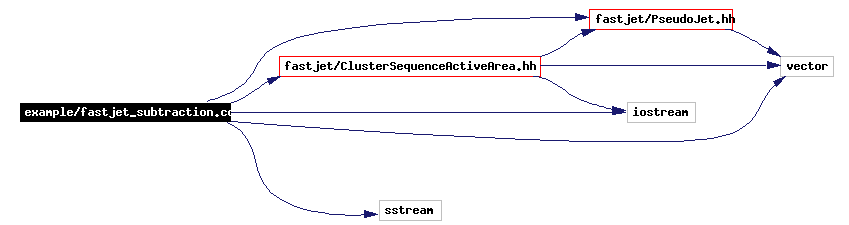

Include dependency graph for fastjet_subtraction.cc:
Go to the source code of this file.
Functions | |
void | print_jets (const fastjet::ClusterSequenceActiveArea &, const vector< fastjet::PseudoJet > &) |
a function that pretty prints a list of jets, and performs the subtraction in two different ways | |
int | main (int argc, char **argv) |
an example program showing how to use fastjet |
|
an example program showing how to use fastjet
Definition at line 59 of file fastjet_subtraction.cc. References fastjet::Best, fastjet::ClusterSequence::inclusive_jets(), fastjet::kt_algorithm, print_jets(), fastjet::PseudoJet::rap(), fastjet::PseudoJet::set_user_index(), and fastjet::ClusterSequence::strategy_string(). 00059 { 00060 00061 // since we use here simulated data we can split the hard event 00062 // from the full (i.e. with pileup added) one 00063 vector<fastjet::PseudoJet> hard_event, full_event; 00064 00065 // maximum rapidity that we accept for the input particles 00066 double etamax = 6.0; 00067 00068 // read in input particles. Keep the hard event generated by PYTHIA 00069 // separated from the full event, so as to be able to gauge the 00070 // "goodness" of the subtraction from the full event which also 00071 // includes pileup 00072 string line; 00073 int nsub = 0; 00074 while (getline(cin, line)) { 00075 istringstream linestream(line); 00076 // take substrings to avoid problems when there are extra "pollution" 00077 // characters (e.g. line-feed). 00078 if (line.substr(0,4) == "#END") {break;} 00079 if (line.substr(0,9) == "#SUBSTART") { 00080 // if more sub events follow, make copy of hard one here 00081 if (nsub == 1) hard_event = full_event; 00082 nsub += 1; 00083 } 00084 if (line.substr(0,1) == "#") {continue;} 00085 valarray<double> fourvec(4); 00086 linestream >> fourvec[0] >> fourvec[1] >> fourvec[2] >> fourvec[3]; 00087 fastjet::PseudoJet psjet(fourvec); 00088 psjet.set_user_index(0); 00089 // push event onto back of full_event vector 00090 if (abs(psjet.rap()) < etamax) {full_event.push_back(psjet);} 00091 } 00092 00093 // if we have read in only one event, copy it across here... 00094 if (nsub == 1) hard_event = full_event; 00095 00096 // if there was nothing in the event 00097 if (nsub == 0) { 00098 cerr << "Error: read empty event\n"; 00099 exit(-1); 00100 } 00101 00102 00103 // create an object that represents your choice of jet finder and 00104 // the associated parameters 00105 double R = 0.7; 00106 fastjet::Strategy strategy = fastjet::Best; 00107 fastjet::JetDefinition jet_def(fastjet::kt_algorithm, R, strategy); 00108 00109 // create an object that specifies how we to define the (active) area 00110 double ghost_etamax = 6.0; 00111 int active_area_repeats = 1; 00112 double ghost_area = 0.01; 00113 fastjet::ActiveAreaSpec area_spec(ghost_etamax, active_area_repeats, 00114 ghost_area); 00115 00116 // run the jet clustering with the above jet definition. hard event first 00117 fastjet::ClusterSequenceActiveArea clust_seq(hard_event, 00118 jet_def, area_spec); 00119 00120 00121 // extract the inclusive jets with pt > 5 GeV, sorted by pt 00122 double ptmin = 5.0; 00123 vector<fastjet::PseudoJet> inclusive_jets = clust_seq.inclusive_jets(ptmin); 00124 00125 // print them out 00126 cout << "" <<endl; 00127 cout << "Hard event only"<<endl; 00128 cout << "Number of input particles: "<<hard_event.size()<<endl; 00129 cout << "Strategy used: "<<clust_seq.strategy_string()<<endl; 00130 cout << "Printing inclusive jets with pt > "<< ptmin<<" GeV\n"; 00131 cout << "---------------------------------------\n"; 00132 print_jets(clust_seq, inclusive_jets); 00133 cout << endl; 00134 00135 00136 // repeat everything on the full event 00137 00138 // run the jet clustering with the above jet definition 00139 fastjet::ClusterSequenceActiveArea clust_seq_full(full_event, 00140 jet_def, area_spec); 00141 00142 // extract the inclusive jets with pt > 20 GeV, sorted by pt 00143 ptmin = 20.0; 00144 inclusive_jets = clust_seq_full.inclusive_jets(ptmin); 00145 00146 // print them out 00147 cout << "Full event, with pileup, and its subtraction"<<endl; 00148 cout << "Number of input particles: "<<full_event.size()<<endl; 00149 cout << "Strategy used: "<<clust_seq_full.strategy_string()<<endl; 00150 cout << "Printing inclusive jets with pt > "<< ptmin<<" GeV (before subtraction)\n"; 00151 cout << "---------------------------------------\n"; 00152 print_jets(clust_seq_full, inclusive_jets); 00153 cout << endl; 00154 00155 00156 }
|
|
a function that pretty prints a list of jets, and performs the subtraction in two different ways
Definition at line 162 of file fastjet_subtraction.cc. References fastjet::ClusterSequenceActiveArea::area(), fastjet::ClusterSequenceActiveArea::area_4vector(), fastjet::PseudoJet::E(), fastjet::PseudoJet::perp2(), fastjet::ClusterSequenceActiveArea::pt_per_unit_area(), and fastjet::sorted_by_pt(). 00163 { 00164 00165 // sort jets into increasing pt 00166 vector<fastjet::PseudoJet> jets = sorted_by_pt(unsorted_jets); 00167 00168 // the corrected jets will go in here 00169 vector<fastjet::PseudoJet> corrected_jets(jets.size()); 00170 00171 // get median pt per unit area 00172 // NB pt_per_unit_area exists only in ClusterSequenceActiveArea, and 00173 // not in the base class ClusterSequenceWithArea. 00174 // This might change in a future release 00175 double median_pt_per_area = clust_seq.pt_per_unit_area(); 00176 00177 printf(" ijet rap phi Pt area Pt corr (rap corr phi corr Pt corr)ext\n"); 00178 for (size_t j = 0; j < jets.size(); j++) { 00179 00180 // get area of each jet 00181 double area = clust_seq.area(jets[j]); 00182 00183 // "standard" correction. Subtract only the Pt 00184 double pt_corr = jets[j].perp() - area*median_pt_per_area; 00185 00186 // "extended" correction 00187 fastjet::PseudoJet area_4vect = 00188 median_pt_per_area*clust_seq.area_4vector(jets[j]); 00189 if (area_4vect.perp2() >= jets[j].perp2() || 00190 area_4vect.E() >= jets[j].E()) { 00191 // if the correction is too large, set the jet to zero 00192 corrected_jets[j] = 0.0 * jets[j]; 00193 } else { 00194 // otherwise do an E-scheme subtraction 00195 corrected_jets[j] = jets[j] - area_4vect; 00196 } 00197 // NB We could also leave out the above "if": 00198 // corrected_jets[j] = jets[j] - area_4vect; 00199 // but the result would be different, since we would not avoid 00200 // jets with negative Pt or energy 00201 00202 printf("%5u %7.3f %7.3f %9.3f %7.3f %9.3f %7.3f %7.3f %9.3f\n", 00203 j,jets[j].rap(),jets[j].phi(),jets[j].perp(), area, pt_corr, 00204 corrected_jets[j].rap(),corrected_jets[j].phi(), corrected_jets[j].perp()); 00205 } 00206 00207 cout << endl; 00208 cout << "median pt_over_area = " << median_pt_per_area << endl << endl; 00209 00210 00211 }
|
