fastjet::ClosestPair2D Class Reference

concrete implementation for finding closest pairs in 2D -- will use Chan's (hopefully efficient) shuffle based structures More...

#include <ClosestPair2D.hh>

Inheritance diagram for fastjet::ClosestPair2D:

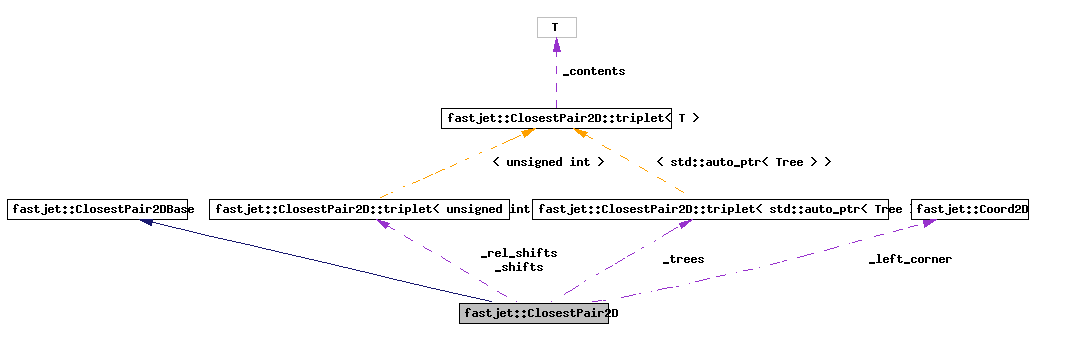

[legend]Collaboration diagram for fastjet::ClosestPair2D:

[legend]List of all members.

Public Member Functions
	ClosestPair2D (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner)
	constructor from a vector of 2D positions -- number of objects after insertion and deletion must never exceed positions.size(); objects are given IDs that correspond to their index in the vector of positions
	ClosestPair2D (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner, const unsigned int max_size)
	constructor which allows structure to grow beyond positions.size(), up to max_size
void	closest_pair (unsigned int &ID1, unsigned int &ID2, double &distance2) const
	provides the IDs of the closest pair as well as the distance between them
void	remove (unsigned int ID)
	removes the entry labelled by ID from the object;
unsigned int	insert (const Coord2D &)
	inserts the position into the closest pair structure and returns the ID that has been allocated for the object.
virtual unsigned int	replace (unsigned int ID1, unsigned int ID2, const Coord2D &position)
	removes ID1 and ID2 and inserts position, returning the ID corresponding to position.
virtual void	replace_many (const std::vector< unsigned int > &IDs_to_remove, const std::vector< Coord2D > &new_positions, std::vector< unsigned int > &new_IDs)
	replaces IDs_to_remove with points at the new_positions indicating the IDs allocated to the new points in new_IDs
void	print_tree_depths (std::ostream &outdev) const
unsigned int	size ()
Private Types
typedef SearchTree< Shuffle >	Tree
typedef Tree::circulator	circulator
typedef Tree::const_circulator	const_circulator
Private Member Functions
void	_initialize (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner, const unsigned int max_size)
void	_add_label (Point *point, unsigned int review_flag)
	add a label to a point as to the nature of review needed (includes adding it to list of points needing review) [doesn't affect other labels already set for the point]
void	_set_label (Point *point, unsigned int review_flag)
	sets the label for the point to be exclusively this review flag (and adds it to list of points needing review if not already there)
void	_deal_with_points_to_review ()
	for all entries of the _points_under_review[] vector, carry out the actions indicated by its review flag; the points are then removed from _points_under_review[] and their flags set to zero
void	_remove_from_search_tree (Point *point_to_remove)
	carry out the search-tree related operations of point removal
void	_insert_into_search_tree (Point *new_point)
	carry out the search-tree related operations of point insertion
void	_point2shuffle (Point &, Shuffle &, unsigned int shift)
	takes a point and sets a shuffle with the given shift...
int	_ID (const Point *) const
	returns the ID for the specified point...
Private Attributes
triplet< std::auto_ptr< Tree > >	_trees
std::auto_ptr< MinHeap >	_heap
std::vector< Point >	_points
std::stack< Point * >	_available_points
std::vector< Point * >	_points_under_review
	points that are "under review" in some way
Coord2D	_left_corner
	pieces needed for converting coordinates to integer
double	_range
triplet< unsigned int >	_shifts
triplet< unsigned int >	_rel_shifts
unsigned int	_cp_search_range
Static Private Attributes
static const unsigned int	_nshift = 3
static const unsigned int	_remove_heap_entry = 1
static const unsigned int	_review_heap_entry = 2
static const unsigned int	_review_neighbour = 4
Classes
class	Point
	class for representing all info needed about a point More...
class	Shuffle
	class that will take care of ordering of shuffles for us More...
class	triplet
	since sets of three objects will crop up repeatedly, useful to have a triplet class? More...

---

Detailed Description

concrete implementation for finding closest pairs in 2D -- will use Chan's (hopefully efficient) shuffle based structures

Definition at line 46 of file ClosestPair2D.hh.

---

Member Typedef Documentation

typedef SearchTree<Shuffle> fastjet::ClosestPair2D::Tree [private]

Definition at line 127 of file ClosestPair2D.hh.

typedef Tree::circulator fastjet::ClosestPair2D::circulator [private]

Definition at line 128 of file ClosestPair2D.hh.

typedef Tree::const_circulator fastjet::ClosestPair2D::const_circulator [private]

Definition at line 129 of file ClosestPair2D.hh.

---

Constructor & Destructor Documentation

fastjet::ClosestPair2D::ClosestPair2D	(	const std::vector< Coord2D > &	positions,
		const Coord2D &	left_corner,
		const Coord2D &	right_corner
	)			[inline]

constructor from a vector of 2D positions -- number of objects after insertion and deletion must never exceed positions.size(); objects are given IDs that correspond to their index in the vector of positions

Definition at line 52 of file ClosestPair2D.hh.

                                                                           {
    _initialize(positions, left_corner, right_corner, positions.size());
  };

fastjet::ClosestPair2D::ClosestPair2D	(	const std::vector< Coord2D > &	positions,
		const Coord2D &	left_corner,
		const Coord2D &	right_corner,
		const unsigned int	max_size
	)			[inline]

constructor which allows structure to grow beyond positions.size(), up to max_size

Definition at line 59 of file ClosestPair2D.hh.

                                             {
    _initialize(positions, left_corner, right_corner, max_size);
  };

---

Member Function Documentation

void fastjet::ClosestPair2D::closest_pair	(	unsigned int &	ID1,
		unsigned int &	ID2,
		double &	distance2
	)			const [virtual]

provides the IDs of the closest pair as well as the distance between them

Implements fastjet::ClosestPair2DBase.

Definition at line 181 of file ClosestPair2D.cc.

References _heap, _ID(), and _points.

Referenced by fastjet::ClusterSequence::_CP2DChan_cluster(), and fastjet::ClusterSequence::_CP2DChan_limited_cluster().

                                                           {
  ID1 = _heap->minloc();
  ID2 = _ID(_points[ID1].neighbour);
  distance2 = _points[ID1].neighbour_dist2;
  if (ID1 > ID2) swap(ID1,ID2);
}

void fastjet::ClosestPair2D::remove

(

unsigned int

ID

)

[virtual]

removes the entry labelled by ID from the object;

Implements fastjet::ClosestPair2DBase.

Definition at line 213 of file ClosestPair2D.cc.

References _deal_with_points_to_review(), _points, and _remove_from_search_tree().

                                          {

  //cout << "While removing " << ID <<endl;

  Point * point_to_remove = & (_points[ID]);

  // remove this point from the search tree
  _remove_from_search_tree(point_to_remove);

  // the above statement labels certain points as needing "review" --
  // deal with them...
  _deal_with_points_to_review();
}

unsigned int fastjet::ClosestPair2D::insert

(

const Coord2D &

)

[virtual]

inserts the position into the closest pair structure and returns the ID that has been allocated for the object.

Implements fastjet::ClosestPair2DBase.

Definition at line 345 of file ClosestPair2D.cc.

References _available_points, _deal_with_points_to_review(), _ID(), and _insert_into_search_tree().

                                                            {

  // get hold of a point
  assert(_available_points.size() > 0);
  Point * new_point = _available_points.top();
  _available_points.pop();

  // set the point's coordinate
  new_point->coord = new_coord;

  // now find it's neighbour in the search tree
  _insert_into_search_tree(new_point);

  // sort out other points that may have been affected by this,
  // and/or for which the heap needs to be updated
  _deal_with_points_to_review();

  //
  return _ID(new_point);
}

unsigned int fastjet::ClosestPair2D::replace	(	unsigned int	ID1,
		unsigned int	ID2,
		const Coord2D &	position
	)			[virtual]

removes ID1 and ID2 and inserts position, returning the ID corresponding to position.

..

Reimplemented from fastjet::ClosestPair2DBase.

Definition at line 367 of file ClosestPair2D.cc.

References _available_points, _deal_with_points_to_review(), _ID(), _insert_into_search_tree(), _points, _remove_from_search_tree(), and fastjet::ClosestPair2D::Point::coord.

Referenced by fastjet::ClusterSequence::_CP2DChan_cluster().

                                                              {

  // deletion from tree...
  Point * point_to_remove = & (_points[ID1]);
  _remove_from_search_tree(point_to_remove);

  point_to_remove = & (_points[ID2]);
  _remove_from_search_tree(point_to_remove);

  // insertion into tree
  // get hold of a point
  Point * new_point = _available_points.top();
  _available_points.pop();

  // set the point's coordinate
  new_point->coord = position;

  // now find it's neighbour in the search tree
  _insert_into_search_tree(new_point);

  // the above statement labels certain points as needing "review" --
  // deal with them...
  _deal_with_points_to_review();

  //
  return _ID(new_point);

}

void fastjet::ClosestPair2D::replace_many	(	const std::vector< unsigned int > &	IDs_to_remove,
		const std::vector< Coord2D > &	new_positions,
		std::vector< unsigned int > &	new_IDs
	)			[virtual]

replaces IDs_to_remove with points at the new_positions indicating the IDs allocated to the new points in new_IDs

Reimplemented from fastjet::ClosestPair2DBase.

Definition at line 399 of file ClosestPair2D.cc.

References _available_points, _deal_with_points_to_review(), _ID(), _insert_into_search_tree(), _points, and _remove_from_search_tree().

Referenced by fastjet::ClusterSequence::_CP2DChan_limited_cluster().

                                                     {

  // deletion from tree...
  for (unsigned int i = 0; i < IDs_to_remove.size(); i++) {
    _remove_from_search_tree(& (_points[IDs_to_remove[i]]));
  }

  // insertion into tree
  new_IDs.resize(0);
  for (unsigned int i = 0; i < new_positions.size(); i++) {
    Point * new_point = _available_points.top();
    _available_points.pop();
    // set the point's coordinate
    new_point->coord = new_positions[i];
    // now find it's neighbour in the search tree
    _insert_into_search_tree(new_point);
    // record the ID
    new_IDs.push_back(_ID(new_point));
  }

  // the above statement labels certain points as needing "review" --
  // deal with them...
  _deal_with_points_to_review();

}

void fastjet::ClosestPair2D::print_tree_depths

(

std::ostream &

outdev

)

const [inline]

Definition at line 89 of file ClosestPair2D.hh.

                                                           {
    outdev    << _trees[0]->max_depth() << " "
              << _trees[1]->max_depth() << " "
              << _trees[2]->max_depth() << "\n";
  };

unsigned int fastjet::ClosestPair2D::size

(

)

[inline, virtual]

Implements fastjet::ClosestPair2DBase.

Definition at line 226 of file ClosestPair2D.hh.

References _available_points, and _points.

Referenced by _deal_with_points_to_review(), _insert_into_search_tree(), and _remove_from_search_tree().

                                        {
  return _points.size() - _available_points.size();
}

void fastjet::ClosestPair2D::_initialize	(	const std::vector< Coord2D > &	positions,
		const Coord2D &	left_corner,
		const Coord2D &	right_corner,
		const unsigned int	max_size
	)			[private]

Definition at line 78 of file ClosestPair2D.cc.

References _available_points, _cp_search_range, _heap, _left_corner, _nshift, _point2shuffle(), _points, _points_under_review, _range, _rel_shifts, _shifts, _trees, fastjet::ClosestPair2D::Point::circ, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, fastjet::twopow31, fastjet::Coord2D::x, and fastjet::Coord2D::y.

                                                    {

  unsigned int n_positions = positions.size();
  assert(max_size >= n_positions);

  //_points(positions.size())

  // allow the points array to grow to the following size
  _points.resize(max_size);
  // currently unused points are immediately made available on the
  // stack
  for (unsigned int i = n_positions; i < max_size; i++) {
    _available_points.push(&(_points[i]));
  }

  _left_corner = left_corner;
  _range       = max((right_corner.x - left_corner.x),
                     (right_corner.y - left_corner.y));

  // initialise the coordinates for the points and create the zero-shifted
  // shuffle array
  vector<Shuffle> shuffles(n_positions);
  for (unsigned int i = 0; i < n_positions; i++) {
    // set up the points
    _points[i].coord = positions[i];
    _points[i].neighbour_dist2 = numeric_limits<double>::max();
    _points[i].review_flag = 0;

    // create shuffle with 0 shift.
    _point2shuffle(_points[i], shuffles[i], 0);
  }

  // establish what our shifts will be
  for (unsigned ishift = 0; ishift < _nshift; ishift++) {
    // make sure we use double-precision for calculating the shifts
    // since otherwise we will hit integer overflow.
   _shifts[ishift] = static_cast<unsigned int>(((twopow31*1.0)*ishift)/_nshift);
    if (ishift == 0) {_rel_shifts[ishift] = 0;}
    else {_rel_shifts[ishift] = _shifts[ishift] - _shifts[ishift-1];}
  }
  //_shifts[0] = 0;
  //_shifts[1] = static_cast<unsigned int>((twopow31*1.0)/3.0);
  //_shifts[2] = static_cast<unsigned int>((twopow31*2.0)/3.0);
  //_rel_shifts[0] = 0;
  //_rel_shifts[1] = _shifts[1];
  //_rel_shifts[2] = _shifts[2]-_shifts[1];

  // and how we will search...
  //_cp_search_range = 49;
  _cp_search_range = 30;
  _points_under_review.reserve(_nshift * _cp_search_range);

  // now initialise the three trees
  for (unsigned int ishift = 0; ishift < _nshift; ishift++) {

    // shift the shuffles if need be.
    if (ishift > 0) {
      unsigned rel_shift = _rel_shifts[ishift];
      for (unsigned int i = 0; i < shuffles.size(); i++) {
        shuffles[i] += rel_shift; }
    }

    // sort the shuffles
    sort(shuffles.begin(), shuffles.end());

    // and create the search tree
    _trees[ishift] = auto_ptr<Tree>(new Tree(shuffles, max_size));

    // now we look for the closest-pair candidates on this tree
    circulator circ = _trees[ishift]->somewhere(), start=circ;
    // the actual range in which we search
    unsigned int CP_range = min(_cp_search_range, n_positions-1);
    do {
      Point * this_point = circ->point;
      //cout << _ID(this_point) << " ";
      this_point->circ[ishift] = circ;
      // run over all points within _cp_search_range of this_point on tree
      circulator other = circ;
      for (unsigned i=0; i < CP_range; i++) {
        ++other;
        double dist2 = this_point->distance2(*other->point);
        if (dist2 < this_point->neighbour_dist2) {
          this_point->neighbour_dist2 = dist2;
          this_point->neighbour       = other->point;
        }
      }
    } while (++circ != start);
    //cout << endl<<endl;
  }

  // now initialise the heap object...
  vector<double> mindists2(n_positions);
  for (unsigned int i = 0; i < n_positions; i++) {
    mindists2[i] = _points[i].neighbour_dist2;}

  _heap = auto_ptr<MinHeap>(new MinHeap(mindists2, max_size));
}

void fastjet::ClosestPair2D::_add_label	(	Point *	point,
		unsigned int	review_flag
	)			[inline, private]

add a label to a point as to the nature of review needed (includes adding it to list of points needing review) [doesn't affect other labels already set for the point]

Definition at line 191 of file ClosestPair2D.cc.

References _points_under_review, and fastjet::ClosestPair2D::Point::review_flag.

Referenced by _insert_into_search_tree(), and _remove_from_search_tree().

                                                                             {

  // if it's not already under review, then put it on the list of
  // points needing review
  if (point->review_flag == 0) _points_under_review.push_back(point);

  // OR the point's current flag with the requested review flag
  point->review_flag |= review_flag;
}

void fastjet::ClosestPair2D::_set_label	(	Point *	point,
		unsigned int	review_flag
	)			[inline, private]

sets the label for the point to be exclusively this review flag (and adds it to list of points needing review if not already there)

Definition at line 202 of file ClosestPair2D.cc.

References _points_under_review, and fastjet::ClosestPair2D::Point::review_flag.

Referenced by _insert_into_search_tree(), and _remove_from_search_tree().

                                                                             {

  // if it's not already under review, then put it on the list of
  // points needing review
  if (point->review_flag == 0) _points_under_review.push_back(point);

  // SET the point's current flag to the requested review flag
  point->review_flag = review_flag;
}

void fastjet::ClosestPair2D::_deal_with_points_to_review

(

)

[private]

for all entries of the _points_under_review[] vector, carry out the actions indicated by its review flag; the points are then removed from _points_under_review[] and their flags set to zero

Definition at line 295 of file ClosestPair2D.cc.

References _cp_search_range, _heap, _ID(), _nshift, _points_under_review, _remove_heap_entry, _review_neighbour, and size().

Referenced by insert(), remove(), replace(), and replace_many().

                                                {

  // the range in which we carry out searches for new neighbours on
  // the search tree
  unsigned int CP_range = min(_cp_search_range, size()-1);

  // now deal with the points that are "under review" in some way
  // (have lost their neighbour, or need their heap entry updating)
  while(_points_under_review.size() > 0) {
    // get the point to be considered
    Point * this_point = _points_under_review.back();
    // remove it from the list
    _points_under_review.pop_back();

    if (this_point->review_flag & _remove_heap_entry) {
      // make sure no other flags are on (it wouldn't be consistent?)
      assert(!(this_point->review_flag ^ _remove_heap_entry));
      _heap->remove(_ID(this_point));
    }
    // check to see if the _review_neighbour flag is on
    else {
      if (this_point->review_flag & _review_neighbour) {
        this_point->neighbour_dist2 = numeric_limits<double>::max();
        // among all three shifts
        for (unsigned int ishift = 0; ishift < _nshift; ishift++) {
          circulator other = this_point->circ[ishift];
          // among points within CP_range
          for (unsigned i=0; i < CP_range; i++) {
            ++other;
            double dist2 = this_point->distance2(*other->point);
            if (dist2 < this_point->neighbour_dist2) {
              this_point->neighbour_dist2 = dist2;
              this_point->neighbour       = other->point;
            }
          }
        }
      }

      // for any non-zero review flag we'll have to update the heap
      _heap->update(_ID(this_point), this_point->neighbour_dist2);
    }

    // "delabel" the point
    this_point->review_flag = 0;

  }

}

void fastjet::ClosestPair2D::_remove_from_search_tree

(

Point *

point_to_remove

)

[private]

carry out the search-tree related operations of point removal

Definition at line 229 of file ClosestPair2D.cc.

References _add_label(), _available_points, _cp_search_range, _nshift, _remove_heap_entry, _review_heap_entry, _review_neighbour, _set_label(), _trees, fastjet::ClosestPair2D::Point::circ, fastjet::ClosestPair2D::Point::neighbour, and size().

Referenced by remove(), replace(), and replace_many().

                                                                    {

  // add this point to the list of "available" points (this is
  // relevant also from the point of view of determining the range
  // over which we circulate).
  _available_points.push(point_to_remove);

  // label it so that it goes from the heap
  _set_label(point_to_remove, _remove_heap_entry);

  // establish the range over which we search (a) for points that have
  // acquired a new neighbour and (b) for points which had ID as their
  // neighbour;

  unsigned int CP_range = min(_cp_search_range, size()-1);

  // then, for each shift
  for (unsigned int ishift = 0; ishift < _nshift; ishift++) {
    //cout << "   ishift = " << ishift <<endl;
    // get the circulator for the point we'll remove and its successor
    circulator removed_circ = point_to_remove->circ[ishift];
    circulator right_end = removed_circ.next();
    // remove the point
    _trees[ishift]->remove(removed_circ);

    // next find the point CP_range points to the left
    circulator left_end  = right_end, orig_right_end = right_end;
    for (unsigned int i = 0; i < CP_range; i++) {left_end--;}

    if (size()-1 < _cp_search_range) {
      // we have a smaller range now than before -- but when seeing who
      // could have had ID as a neighbour, we still need to use the old
      // range for seeing how far back we search (but new separation between
      // points). [cf CCN28-42]
      left_end--; right_end--;
    }

    // and then for each left-end point: establish if the removed
    // point was its neighbour [in which case a new neighbour must be
    // found], otherwise see if the right-end point is a closer neighbour
    do {
      Point * left_point = left_end->point;

      //cout << "    visited " << setw(3)<<_ID(left_point)<<" (its neighbour was "<<    setw(3)<< _ID(left_point->neighbour)<<")"<<endl;

      if (left_point->neighbour == point_to_remove) {
        // we'll deal with it later...
        _add_label(left_point, _review_neighbour);
      } else {
        // check to see if right point has become its closest neighbour
        double dist2 = left_point->distance2(*right_end->point);
        if (dist2 < left_point->neighbour_dist2) {
          left_point->neighbour = right_end->point;
          left_point->neighbour_dist2 = dist2;
          // NB: (LESSER) REVIEW NEEDED HERE TOO...
          _add_label(left_point, _review_heap_entry);
        }
      }
      ++right_end;
    } while (++left_end != orig_right_end);
  } // ishift...

}

void fastjet::ClosestPair2D::_insert_into_search_tree

(

Point *

new_point

)

[private]

carry out the search-tree related operations of point insertion

Definition at line 430 of file ClosestPair2D.cc.

References _add_label(), _cp_search_range, _nshift, _point2shuffle(), _review_heap_entry, _review_neighbour, _set_label(), _shifts, _trees, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, and size().

Referenced by insert(), replace(), and replace_many().

                                                              {

  // this point will have to have it's heap entry reviewed...
  _set_label(new_point, _review_heap_entry);

  // set the current distance to "infinity"
  new_point->neighbour_dist2 = numeric_limits<double>::max();

  // establish how far we will be searching;
  unsigned int CP_range = min(_cp_search_range, size()-1);

  for (unsigned ishift = 0; ishift < _nshift; ishift++) {
    // create the shuffle
    Shuffle new_shuffle;
    _point2shuffle(*new_point, new_shuffle, _shifts[ishift]);

    // insert it into the tree
    circulator new_circ = _trees[ishift]->insert(new_shuffle);
    new_point->circ[ishift] = new_circ;

    // now get hold of the right and left edges of the region we will be
    // looking at (cf CCN28-43)
    circulator right_edge = new_circ; right_edge++;
    circulator left_edge  = new_circ;
    for (unsigned int i = 0; i < CP_range; i++) {left_edge--;}

    // now
    do {
      Point * left_point  = left_edge->point;
      Point * right_point = right_edge->point;

      // see if the new point is closer to the left-edge than the latter's
      // current neighbour
      double new_dist2 = left_point->distance2(*new_point);
      if (new_dist2 < left_point->neighbour_dist2) {
        left_point->neighbour_dist2 = new_dist2;
        left_point->neighbour       = new_point;
        _add_label(left_point, _review_heap_entry);
      }

      // see if the right-point is closer to the new point than it's current
      // neighbour
      new_dist2 = new_point->distance2(*right_point);
      if (new_dist2 < new_point->neighbour_dist2) {
        new_point->neighbour_dist2 = new_dist2;
        new_point->neighbour = right_point;
      }

      // if the right-edge point was the left-edge's neighbour, then
      // then it's just gone off-radar and the left-point will need to
      // have its neighbour recalculated [actually, this is overdoing
      // it a little, since right point may be an less "distant"
      // (circulator distance) in one of the other shifts -- but not
      // sure how to deal with this...]
      if (left_point->neighbour == right_point) {
        _add_label(left_point, _review_neighbour);
      }

      // shift the left and right edges until left edge hits new_circ
      right_edge++;
    } while (++left_edge != new_circ);
  }
}

void fastjet::ClosestPair2D::_point2shuffle	(	Point &	,
		Shuffle &	,
		unsigned int	shift
	)			[private]

takes a point and sets a shuffle with the given shift...

Definition at line 46 of file ClosestPair2D.cc.

References _left_corner, _range, fastjet::ClosestPair2D::Point::coord, fastjet::ClosestPair2D::Shuffle::point, fastjet::twopow31, fastjet::ClosestPair2D::Shuffle::x, fastjet::Coord2D::x, fastjet::ClosestPair2D::Shuffle::y, and fastjet::Coord2D::y.

Referenced by _initialize(), and _insert_into_search_tree().

                                                      {

  Coord2D renorm_point = (point.coord - _left_corner)/_range;
  // make sure the point is sensible
  //cerr << point.coord.x <<" "<<point.coord.y<<endl;
  assert(renorm_point.x >=0);
  assert(renorm_point.x <=1);
  assert(renorm_point.y >=0);
  assert(renorm_point.y <=1);

  shuffle.x = static_cast<unsigned int>(twopow31 * renorm_point.x) + shift;
  shuffle.y = static_cast<unsigned int>(twopow31 * renorm_point.y) + shift;
  shuffle.point = &point;
}

int fastjet::ClosestPair2D::_ID

(

const Point *

)

const [inline, private]

returns the ID for the specified point...

Definition at line 220 of file ClosestPair2D.hh.

References _points.

Referenced by _deal_with_points_to_review(), closest_pair(), insert(), replace(), and replace_many().

                                                       {
  return point - &(_points[0]);
}

---

Member Data Documentation

const unsigned int fastjet::ClosestPair2D::_nshift = 3 [static, private]

Definition at line 103 of file ClosestPair2D.hh.

Referenced by _deal_with_points_to_review(), _initialize(), _insert_into_search_tree(), and _remove_from_search_tree().

triplet<std::auto_ptr<Tree> > fastjet::ClosestPair2D::_trees [private]

Definition at line 132 of file ClosestPair2D.hh.

Referenced by _initialize(), _insert_into_search_tree(), and _remove_from_search_tree().

std::auto_ptr<MinHeap> fastjet::ClosestPair2D::_heap [private]

Definition at line 133 of file ClosestPair2D.hh.

Referenced by _deal_with_points_to_review(), _initialize(), and closest_pair().

std::vector<Point> fastjet::ClosestPair2D::_points [private]

Definition at line 134 of file ClosestPair2D.hh.

Referenced by _ID(), _initialize(), closest_pair(), remove(), replace(), replace_many(), and size().

std::stack<Point *> fastjet::ClosestPair2D::_available_points [private]

Definition at line 135 of file ClosestPair2D.hh.

Referenced by _initialize(), _remove_from_search_tree(), insert(), replace(), replace_many(), and size().

std::vector<Point *> fastjet::ClosestPair2D::_points_under_review [private]

points that are "under review" in some way

Definition at line 138 of file ClosestPair2D.hh.

Referenced by _add_label(), _deal_with_points_to_review(), _initialize(), and _set_label().

const unsigned int fastjet::ClosestPair2D::_remove_heap_entry = 1 [static, private]

Definition at line 141 of file ClosestPair2D.hh.

Referenced by _deal_with_points_to_review(), and _remove_from_search_tree().

const unsigned int fastjet::ClosestPair2D::_review_heap_entry = 2 [static, private]

Definition at line 142 of file ClosestPair2D.hh.

Referenced by _insert_into_search_tree(), and _remove_from_search_tree().

const unsigned int fastjet::ClosestPair2D::_review_neighbour = 4 [static, private]

Definition at line 143 of file ClosestPair2D.hh.

Referenced by _deal_with_points_to_review(), _insert_into_search_tree(), and _remove_from_search_tree().

Coord2D fastjet::ClosestPair2D::_left_corner [private]

pieces needed for converting coordinates to integer

Definition at line 171 of file ClosestPair2D.hh.

Referenced by _initialize(), and _point2shuffle().

double fastjet::ClosestPair2D::_range [private]

Definition at line 172 of file ClosestPair2D.hh.

Referenced by _initialize(), and _point2shuffle().

triplet<unsigned int> fastjet::ClosestPair2D::_shifts [private]

Definition at line 176 of file ClosestPair2D.hh.

Referenced by _initialize(), and _insert_into_search_tree().

triplet<unsigned int> fastjet::ClosestPair2D::_rel_shifts [private]

Definition at line 177 of file ClosestPair2D.hh.

Referenced by _initialize().

unsigned int fastjet::ClosestPair2D::_cp_search_range [private]

Definition at line 179 of file ClosestPair2D.hh.

Referenced by _deal_with_points_to_review(), _initialize(), _insert_into_search_tree(), and _remove_from_search_tree().

---

The documentation for this class was generated from the following files:

• include/fastjet/internal/ClosestPair2D.hh
• src/ClosestPair2D.cc

---
