fastjet::GridJetPlugin Class Reference

plugin for fastjet (v3.0 upwards) that clusters particles such that all particles in a given cell of a rectangular rapidity-phi grid end up in a common "jet". More...

#include <fastjet/GridJetPlugin.hh>

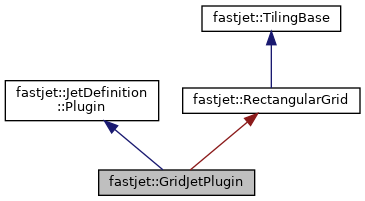

Inheritance diagram for fastjet::GridJetPlugin:
Inheritance graph
[legend]
Collaboration diagram for fastjet::GridJetPlugin:
Collaboration graph
[legend]

Public Member Functions

 GridJetPlugin (double ymax, double requested_grid_spacing, const JetDefinition &post_jet_def=JetDefinition())
 Basic constructor for the GridJetPlugin Plugin class. More...

 GridJetPlugin (const RectangularGrid &grid, const JetDefinition &post_jet_def=JetDefinition())
 Constructor for the GridJetPlugin Plugin class that allows full control over the underlying grid. More...

virtual std::string description () const
 return a textual description of the jet-definition implemented in this plugin

virtual void run_clustering (ClusterSequence &) const
 given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence: More...

virtual double R () const
 This returns the sqrt(dphi*dy/pi) – i.e. More...

- Public Member Functions inherited from fastjet::JetDefinition::Plugin
virtual bool supports_ghosted_passive_areas () const
 return true if there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area. More...

virtual void set_ghost_separation_scale (double scale) const
 set the ghost separation scale for passive area determinations in future runs (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable)

virtual double ghost_separation_scale () const

virtual bool exclusive_sequence_meaningful () const
 if this returns false then a warning will be given whenever the user requests "exclusive" jets from the cluster sequence

virtual bool is_spherical () const
 returns true if the plugin implements an algorithm intended for use on a spherical geometry (e.g. More...

virtual ~Plugin ()
 a destructor to be replaced if necessary in derived classes...


Detailed Description

plugin for fastjet (v3.0 upwards) that clusters particles such that all particles in a given cell of a rectangular rapidity-phi grid end up in a common "jet".

This is not intended for use as a regular jet clustering algorithm, but is rather provided for comparison purposes with the GridMedianBackgroundEstimator (which is even faster).

Definition at line 61 of file GridJetPlugin.hh.

Constructor & Destructor Documentation

◆ GridJetPlugin() [1/2]

fastjet::GridJetPlugin::GridJetPlugin ( double  ymax,
double  requested_grid_spacing,
const JetDefinition post_jet_def = JetDefinition()
)

Basic constructor for the GridJetPlugin Plugin class.

Parameters
ymaxThe maximal rapidity extent of the grid
requested_grid_spacingThe requested grid spacing
post_jet_defif present, and not == JetDefinition() (which has undefined_jet_algorithm), then run the post_jet_def on the result of the grid clustering.

Definition at line 44 of file GridJetPlugin.cc.

◆ GridJetPlugin() [2/2]

fastjet::GridJetPlugin::GridJetPlugin ( const RectangularGrid grid,
const JetDefinition post_jet_def = JetDefinition()
)

Constructor for the GridJetPlugin Plugin class that allows full control over the underlying grid.

New in FastJet 3.1.

Parameters
gridThe maximal rapidity extent of the grid
post_jet_defif present, and not == JetDefinition() (which has undefined_jet_algorithm), then run the post_jet_def on the result of the grid clustering.

Definition at line 60 of file GridJetPlugin.cc.

Member Function Documentation

◆ run_clustering()

void fastjet::GridJetPlugin::run_clustering ( ClusterSequence ) const
virtual

given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence:

  • plugin_do_ij_recombination(...)
  • plugin_do_iB_recombination(...)

Implements fastjet::JetDefinition::Plugin.

Definition at line 135 of file GridJetPlugin.cc.

◆ R()

double fastjet::GridJetPlugin::R ( ) const
virtual

This returns the sqrt(dphi*dy/pi) – i.e.

the radius that for a circular jet would give the same area.

Implements fastjet::JetDefinition::Plugin.

Definition at line 131 of file GridJetPlugin.cc.


The documentation for this class was generated from the following files:
