fastjet::JetDefinition Class Reference

class that is intended to hold a full definition of the jet clusterer More...

#include <JetDefinition.hh>

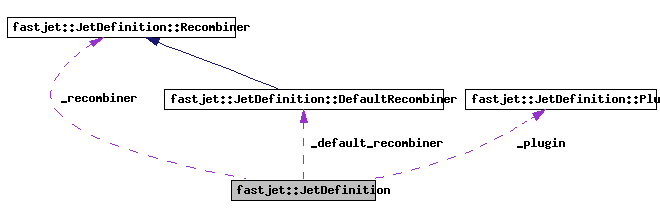

Collaboration diagram for fastjet::JetDefinition:


Public Member Functions
	JetDefinition (JetAlgorithm jet_algorithm, double R, Strategy strategy, RecombinationScheme recomb_scheme=E_scheme)
	constructor to fully specify a jet-definition (together with information about how algorithically to run it).
	JetDefinition (JetAlgorithm jet_algorithm=kt_algorithm, double R=1.0, RecombinationScheme recomb_scheme=E_scheme, Strategy strategy=Best)
	constructor with alternative ordering or arguments -- note that we have not provided a default jet finder, to avoid ambiguous JetDefinition() constructor.
	JetDefinition (JetAlgorithm jet_algorithm, double R, const Recombiner *recombiner, Strategy strategy=Best)
	constructor in a form that allows the user to provide a pointer to an external recombiner class (which must remain valid for the life of the JetDefinition object).
	JetDefinition (const Plugin *plugin)
	constructor based on a pointer to a user's plugin; the object pointed to must remain valid for the whole duration of existence of the JetDefinition and any related ClusterSequences
void	set_recombination_scheme (RecombinationScheme)
	set the recombination scheme to the one provided
void	set_recombiner (const Recombiner *recomb)
	set the recombiner class to the one provided
const Plugin *	plugin () const
	return a pointer to the plugin
JetAlgorithm	jet_algorithm () const
	return information about the definition...
JetAlgorithm	jet_finder () const
	same as above for backward compatibility
double	R () const
double	extra_param () const
Strategy	strategy () const
RecombinationScheme	recombination_scheme () const
void	set_jet_algorithm (JetAlgorithm njf)
	(re)set the jet finder
void	set_jet_finder (JetAlgorithm njf)
	same as above for backward compatibility
void	set_extra_param (double xtra_param)
	(re)set the general purpose extra parameter
const Recombiner *	recombiner () const
	return a pointer to the currently defined recombiner (it may be the internal one)
std::string	description () const
	return a textual description of the current jet definition
Private Attributes
JetAlgorithm	_jet_algorithm
double	_Rparam
double	_extra_param
	parameter whose meaning varies according to context
Strategy	_strategy
const Plugin *	_plugin
DefaultRecombiner	_default_recombiner
const Recombiner *	_recombiner
Classes
class	DefaultRecombiner
	A class that will provide the recombination scheme facilities and/or allow a user to extend these facilities. More...
class	Plugin
	a class that allows a user to introduce their own "plugin" jet finder More...
class	Recombiner
	An abstract base class that will provide the recombination scheme facilities and/or allow a user to extend these facilities. More...

Detailed Description

class that is intended to hold a full definition of the jet clusterer

Definition at line 153 of file JetDefinition.hh.

Constructor & Destructor Documentation

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		Strategy	strategy,
		RecombinationScheme	recomb_scheme = `E_scheme`
	)			`[inline]`

constructor to fully specify a jet-definition (together with information about how algorithically to run it).

Definition at line 169 of file JetDefinition.hh.

References fastjet::pi, fastjet::plugin_algorithm, and fastjet::plugin_strategy.

00172                                                               :
00173     _jet_algorithm(jet_algorithm), _Rparam(R), _strategy(strategy) {
00174     // the largest sensible value for R
00175     assert(_Rparam <= 0.5*pi);
00176     assert(_jet_algorithm != plugin_algorithm &&
00177            _strategy   != plugin_strategy);
00178     _plugin = NULL;
00179     set_recombination_scheme(recomb_scheme);
00180   }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm = `kt_algorithm`,
		double	R = `1.0`,
		RecombinationScheme	recomb_scheme = `E_scheme`,
		Strategy	strategy = `Best`
	)			`[inline]`

constructor with alternative ordering or arguments -- note that we have not provided a default jet finder, to avoid ambiguous JetDefinition() constructor.

Definition at line 186 of file JetDefinition.hh.

00189                                           {
00190     *this = JetDefinition(jet_algorithm, R, strategy, recomb_scheme);
00191   }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		const Recombiner *	recombiner,
		Strategy	strategy = `Best`
	)			`[inline]`

constructor in a form that allows the user to provide a pointer to an external recombiner class (which must remain valid for the life of the JetDefinition object).

Definition at line 197 of file JetDefinition.hh.

References fastjet::external_scheme.

00200                                           {
00201     *this = JetDefinition(jet_algorithm, R, strategy, external_scheme);
00202     _recombiner = recombiner;
00203   }

fastjet::JetDefinition::JetDefinition ( const Plugin * plugin ) [inline]

constructor based on a pointer to a user's plugin; the object pointed to must remain valid for the whole duration of existence of the JetDefinition and any related ClusterSequences

Definition at line 208 of file JetDefinition.hh.

References fastjet::E_scheme, fastjet::plugin_algorithm, and fastjet::plugin_strategy.

00208                                        {
00209     _plugin = plugin;
00210     _strategy = plugin_strategy;
00211     _Rparam = _plugin->R();
00212     _jet_algorithm = plugin_algorithm;
00213     set_recombination_scheme(E_scheme);
00214   }

Member Function Documentation

void fastjet::JetDefinition::set_recombination_scheme ( RecombinationScheme )

set the recombination scheme to the one provided

Definition at line 65 of file JetDefinition.cc.

References _default_recombiner, and _recombiner.

00066                                                                   {
00067   _default_recombiner = JetDefinition::DefaultRecombiner(recomb_scheme);
00068   _recombiner = 0;
00069 }

void fastjet::JetDefinition::set_recombiner ( const Recombiner * recomb ) [inline]

set the recombiner class to the one provided

Definition at line 220 of file JetDefinition.hh.

References fastjet::external_scheme.

00220                                                  {
00221     _recombiner = recomb;
00222     _default_recombiner = DefaultRecombiner(external_scheme);
00223   }

const Plugin* fastjet::JetDefinition::plugin ( ) const [inline]

return a pointer to the plugin

Definition at line 226 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_initialise_and_run(), fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), and description().

00226 {return _plugin;};

JetAlgorithm fastjet::JetDefinition::jet_algorithm ( ) const [inline]

return information about the definition...

Definition at line 229 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options(), fastjet::ClusterSequence::_initialise_and_run(), fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), fastjet::ClusterSequenceArea::_warn_if_range_unsuitable(), description(), and fastjet::ClusterSequence::exclusive_jets().

00229 {return _jet_algorithm  ;}

JetAlgorithm fastjet::JetDefinition::jet_finder ( ) const [inline]

same as above for backward compatibility

Definition at line 231 of file JetDefinition.hh.

00231 {return _jet_algorithm  ;}

double fastjet::JetDefinition::R ( ) const [inline]

Definition at line 232 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options(), fastjet::ClusterSequenceActiveArea::_initialise_AA(), fastjet::ClusterSequenceVoronoiArea::_initializeVA(), fastjet::ClusterSequenceArea::_warn_if_range_unsuitable(), description(), and fastjet::ClusterSequenceAreaBase::n_empty_jets().

00232 {return _Rparam      ;}

double fastjet::JetDefinition::extra_param ( ) const [inline]

Definition at line 235 of file JetDefinition.hh.

Referenced by description(), and fastjet::ClusterSequence::jet_scale_for_algorithm().

00235 {return _extra_param ;}

Strategy fastjet::JetDefinition::strategy ( ) const [inline]

Definition at line 236 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options().

00236 {return _strategy    ;}

RecombinationScheme fastjet::JetDefinition::recombination_scheme ( ) const [inline]

Definition at line 237 of file JetDefinition.hh.

00237                                                    {
00238     return _default_recombiner.scheme();}

void fastjet::JetDefinition::set_jet_algorithm ( JetAlgorithm njf ) [inline]

(re)set the jet finder

Definition at line 241 of file JetDefinition.hh.

00241 {_jet_algorithm = njf;}

void fastjet::JetDefinition::set_jet_finder ( JetAlgorithm njf ) [inline]

same as above for backward compatibility

Definition at line 243 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA().

00243 {_jet_algorithm = njf;}

void fastjet::JetDefinition::set_extra_param ( double xtra_param ) [inline]

(re)set the general purpose extra parameter

Definition at line 245 of file JetDefinition.hh.

00245 {_extra_param = xtra_param;}

const Recombiner* fastjet::JetDefinition::recombiner ( ) const [inline]

return a pointer to the currently defined recombiner (it may be the internal one)

Definition at line 249 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_do_ij_recombination_step(), fastjet::ClusterSequence::_fill_initial_history(), fastjet::ClusterSequenceActiveAreaExplicitGhosts::_post_process(), fastjet::ClusterSequenceActiveArea::_transfer_areas(), and description().

00249                                         {
00250     return _recombiner == 0 ? & _default_recombiner : _recombiner;}

string fastjet::JetDefinition::description ( ) const

return a textual description of the current jet definition

Definition at line 39 of file JetDefinition.cc.

References fastjet::antikt_algorithm, fastjet::cambridge_algorithm, fastjet::cambridge_for_passive_algorithm, fastjet::JetDefinition::Recombiner::description(), fastjet::JetDefinition::Plugin::description(), extra_param(), jet_algorithm(), fastjet::kt_algorithm, plugin(), fastjet::plugin_algorithm, R(), and recombiner().

Referenced by main(), and run_jet_finder().

00039                                         {
00040   ostringstream name;
00041   if (jet_algorithm() == plugin_algorithm) {
00042     return plugin()->description();
00043   } else if (jet_algorithm() == kt_algorithm) {
00044     name << "Longitudinally invariant kt algorithm with R = " << R();
00045     name << " and " << recombiner()->description();
00046   } else if (jet_algorithm() == cambridge_algorithm) {
00047     name << "Longitudinally invariant Cambridge/Aachen algorithm with R = "
00048          << R() ;
00049     name << " and " << recombiner()->description();
00050   } else if (jet_algorithm() == antikt_algorithm) {
00051     name << "Longitudinally invariant anti-kt algorithm with R = "
00052          << R() ;
00053     name << " and " << recombiner()->description();
00054   } else if (jet_algorithm() == cambridge_for_passive_algorithm) {
00055     name << "Longitudinally invariant Cambridge/Aachen algorithm with R = "
00056          << R() << "and a special hack whereby particles with kt < "
00057          << extra_param() << "are treated as passive ghosts";
00058   } else {
00059     throw Error("Unrecognized jet_finder");
00060   }
00061   return name.str();
00062 }
