fastjet::MassDropTaggerStructure Class Reference

the structure returned by the MassDropTagger transformer. More...

#include <fastjet/tools/MassDropTagger.hh>

Inheritance diagram for fastjet::MassDropTaggerStructure:
Inheritance graph
[legend]

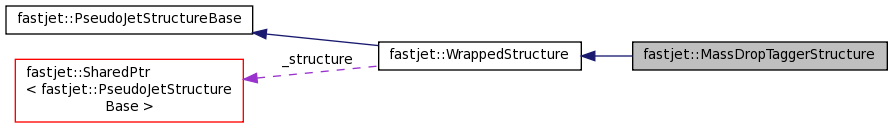

Collaboration diagram for fastjet::MassDropTaggerStructure:
Collaboration graph
[legend]

Public Member Functions

 MassDropTaggerStructure (const PseudoJet &result_jet)
 ctor with initialisation More...

double mu () const
 returns the mass-drop ratio, pieces[0].m()/jet.m(), for the splitting that triggered the mass-drop condition

double y () const
 returns the value of y = (squared kt distance) / (squared mass) for the splitting that triggered the mass-drop condition

- Public Member Functions inherited from fastjet::WrappedStructure
 WrappedStructure (const SharedPtr< PseudoJetStructureBase > &to_be_shared)
 default ctor the argument is the structure we need to wrap

virtual ~WrappedStructure ()
 default (virtual) dtor

virtual std::string description () const
 description

virtual bool has_associated_cluster_sequence () const
 returns true if there is an associated ClusterSequence

virtual const ClusterSequenceassociated_cluster_sequence () const
 get a (const) pointer to the parent ClusterSequence (NULL if inexistent)

virtual bool has_valid_cluster_sequence () const
 returns true if this PseudoJet has an associated and still valid ClusterSequence. More...

virtual const ClusterSequencevalidated_cs () const
 if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error

virtual const
ClusterSequenceAreaBase
validated_csab () const
 if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error

virtual bool has_partner (const PseudoJet &reference, PseudoJet &partner) const
 check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More...

virtual bool has_child (const PseudoJet &reference, PseudoJet &child) const
 check if it has been recombined with another PseudoJet in which case, return its child through the argument. More...

virtual bool has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const
 check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More...

virtual bool object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const
 check if the reference PseudoJet is contained the second one passed as argument. More...

virtual bool has_constituents () const
 return true if the structure supports constituents. More...

virtual std::vector< PseudoJetconstituents (const PseudoJet &reference) const
 retrieve the constituents. More...

virtual bool has_exclusive_subjets () const
 return true if the structure supports exclusive_subjets.

virtual std::vector< PseudoJetexclusive_subjets (const PseudoJet &reference, const double &dcut) const
 return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...

virtual int n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const
 return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...

virtual std::vector< PseudoJetexclusive_subjets_up_to (const PseudoJet &reference, int nsub) const
 return the list of subjets obtained by unclustering the supplied jet down to n subjets (or all constituents if there are fewer than n). More...

virtual double exclusive_subdmerge (const PseudoJet &reference, int nsub) const
 return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More...

virtual double exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const
 return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More...

virtual bool has_pieces (const PseudoJet &reference) const
 return true if the structure supports pieces. More...

virtual std::vector< PseudoJetpieces (const PseudoJet &reference) const
 retrieve the pieces building the jet. More...

virtual bool has_area () const
 check if it has a defined area More...

virtual double area (const PseudoJet &reference) const
 return the jet (scalar) area. More...

virtual double area_error (const PseudoJet &reference) const
 return the error (uncertainty) associated with the determination of the area of this jet. More...

virtual PseudoJet area_4vector (const PseudoJet &reference) const
 return the jet 4-vector area. More...

virtual bool is_pure_ghost (const PseudoJet &reference) const
 true if this jet is made exclusively of ghosts. More...

- Public Member Functions inherited from fastjet::PseudoJetStructureBase
 PseudoJetStructureBase ()
 default ctor

virtual ~PseudoJetStructureBase ()
 default (virtual) dtor


Protected Attributes

double _mu
 the value of the mass-drop parameter

double _y
 the value of the asymmetry parameter

- Protected Attributes inherited from fastjet::WrappedStructure
SharedPtr< PseudoJetStructureBase_structure
 the wrapped structure


Friends

class MassDropTagger


Detailed Description

the structure returned by the MassDropTagger transformer.

See the MassDropTagger class description for the details of what is inside this structure

Definition at line 123 of file MassDropTagger.hh.

Constructor & Destructor Documentation

fastjet::MassDropTaggerStructure::MassDropTaggerStructure ( const PseudoJet result_jet)
inline

ctor with initialisation

Parameters
piecesthe pieces of the created jet
recthe recombiner from the underlying cluster sequence

Definition at line 128 of file MassDropTagger.hh.


The documentation for this class was generated from the following file:
