fastjet::D0RunIBaseConePlugin Class Referenceabstract

D0RunIBaseConePlugin is base class for a plugin for FastJet (v3.0 or later) that provides an interface to the D0 version of Run-I cone algorithm. More...

#include <fastjet/D0RunIBaseConePlugin.hh>

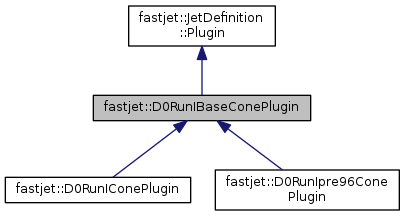

Inheritance diagram for fastjet::D0RunIBaseConePlugin:
Inheritance graph
[legend]
Collaboration diagram for fastjet::D0RunIBaseConePlugin:
Collaboration graph
[legend]

Public Member Functions

 D0RunIBaseConePlugin (double CONErad_in, double JETmne_in, double SPLifr_in=_DEFAULT_SPLifr)
 A D0RunIConePlugin constructor which sets the "free" parameters of the algorithm: More...

double CONErad () const

double JETmne () const

double SPLifr () const

double TWOrad () const

bool D0_Angle () const

bool Increase_Delta_R () const

bool Kill_Far_Clusters () const

bool Jet_Et_Min_On_Iter () const

double Far_Ratio () const

double Eitem_Negdrop () const

double Et_Min_Ratio () const

double Thresh_Diff_Et () const

double overlap_threshold () const
 access the split_ratio() also by the name overlap_threshold()

virtual std::string description () const =0
 return a textual description of the jet-definition implemented in this plugin

virtual void run_clustering (ClusterSequence &) const =0
 given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence: More...

virtual double R () const
 the plugin mechanism's standard way of accessing the jet radius

- Public Member Functions inherited from fastjet::JetDefinition::Plugin
virtual bool supports_ghosted_passive_areas () const
 return true if there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area. More...

virtual void set_ghost_separation_scale (double scale) const
 set the ghost separation scale for passive area determinations in future runs (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable)

virtual double ghost_separation_scale () const

virtual bool exclusive_sequence_meaningful () const
 if this returns false then a warning will be given whenever the user requests "exclusive" jets from the cluster sequence

virtual bool is_spherical () const
 returns true if the plugin implements an algorithm intended for use on a spherical geometry (e.g. More...

virtual ~Plugin ()
 a destructor to be replaced if necessary in derived classes...


Protected Member Functions

template<typename HepEntityType >
void run_clustering_worker (ClusterSequence &) const


Protected Attributes

double _CONErad

double _JETmne

double _SPLifr

double _TWOrad

bool _D0_Angle

bool _Increase_Delta_R

bool _Kill_Far_Clusters

bool _Jet_Et_Min_On_Iter

double _Far_Ratio

double _Eitem_Negdrop

double _Et_Min_Ratio

double _Thresh_Diff_Et


Static Protected Attributes

static const double _DEFAULT_SPLifr = 0.5

static const double _DEFAULT_TWOrad = 0.

static const bool _DEFAULT_D0_Angle = false

static const bool _DEFAULT_Increase_Delta_R = true

static const bool _DEFAULT_Kill_Far_Clusters = true

static const bool _DEFAULT_Jet_Et_Min_On_Iter = true

static const double _DEFAULT_Far_Ratio = 0.5

static const double _DEFAULT_Eitem_Negdrop = -1.0

static const double _DEFAULT_Et_Min_Ratio = 0.5

static const double _DEFAULT_Thresh_Diff_Et = 0.01


Detailed Description

D0RunIBaseConePlugin is base class for a plugin for FastJet (v3.0 or later) that provides an interface to the D0 version of Run-I cone algorithm.

Note that this base class is purely virtual and thus needs to be overloaded. In practice this means that you should use one of D0RunIConePlugin or D0RunIpre96ConePlugin.

The D0 code has been obtained from Lars Sonnenschein's web-space http://www-d0.fnal.gov/~sonne/D0RunIcone.tgz

The version of the D0 Run I code distributed here has been modified by the FastJet authors, so as to provide access to the contents of the jets (as is necessary for the plugin). This does not modify the results of the clustering.

Definition at line 61 of file D0RunIBaseConePlugin.hh.

Constructor & Destructor Documentation

◆ D0RunIBaseConePlugin()

fastjet::D0RunIBaseConePlugin::D0RunIBaseConePlugin ( double  CONErad_in,
double  JETmne_in,
double  SPLifr_in = _DEFAULT_SPLifr
)
inline

A D0RunIConePlugin constructor which sets the "free" parameters of the algorithm:

Parameters
CONEradis the cone radius
JETmneis a minimum ET requirement on every iteration (jet dropped if Et < JETmne * Et_min_ratio ). The value that has been used by D0 for JETmne: 8 GeV (and Et_min_ratio is 0.5)
SPlifris the shared Et fraction splitting threshold, and a value of 0.5 was usually used by D0

The remaining parameters of the algorithm are not to be modified if the algorithm is to correspond to the one actually used by D0.

Definition at line 78 of file D0RunIBaseConePlugin.hh.

Member Function Documentation

◆ run_clustering()

virtual void fastjet::D0RunIBaseConePlugin::run_clustering ( ClusterSequence ) const
pure virtual

given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence:

  • plugin_do_ij_recombination(...)
  • plugin_do_iB_recombination(...)

Implements fastjet::JetDefinition::Plugin.

Implemented in fastjet::D0RunIpre96ConePlugin, and fastjet::D0RunIConePlugin.


The documentation for this class was generated from the following files:
