FastJet  3.3.0
Public Member Functions | List of all members
fastjet::TilingBase Class Referenceabstract

Class to indicate generic structure of tilings. More...

#include <fastjet/RectangularGrid.hh>

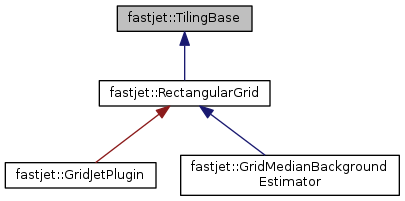

Inheritance diagram for fastjet::TilingBase:
Inheritance graph
[legend]

Public Member Functions

virtual int tile_index (const PseudoJet &p) const =0
 returns the index of the tile in which p is located, or -1 if p is outside the tiling region

virtual int n_tiles () const =0
 returns the total number of tiles in the tiling; valid tile indices run from 0 ... More...

virtual int n_good_tiles () const
 returns the number of tiles that are "good"; i.e. More...

virtual bool tile_is_good (int) const
 returns whether a given tile is good

virtual bool all_tiles_good () const
 returns whether all tiles are good

virtual bool all_tiles_equal_area () const
 returns true if all tiles have the same area

virtual double tile_area (int) const
 returns the area of tile itile. More...

virtual double mean_tile_area () const =0
 returns the mean area of the tiles.

virtual std::string description () const =0
 returns a string to describe the tiling

virtual bool is_initialised () const =0
 returns true if the Tiling structure is in a suitably initialised state

bool is_initialized () const

virtual ~TilingBase ()
 virtual destructor


Detailed Description

Class to indicate generic structure of tilings.

Definition at line 42 of file RectangularGrid.hh.

Member Function Documentation

◆ n_tiles()

virtual int fastjet::TilingBase::n_tiles ( ) const
pure virtual

returns the total number of tiles in the tiling; valid tile indices run from 0 ...

n_tiles()-1;

Implemented in fastjet::RectangularGrid.

◆ n_good_tiles()

virtual int fastjet::TilingBase::n_good_tiles ( ) const
inlinevirtual

returns the number of tiles that are "good"; i.e.

there is scope for having tiles that, for whatever reason, should be ignored; there are situations in which having "non-good" tiles may be the simplest mechanism to obtain a tiling with holes in it

Reimplemented in fastjet::RectangularGrid.

Definition at line 56 of file RectangularGrid.hh.

◆ tile_area()

virtual double fastjet::TilingBase::tile_area ( int  ) const
inlinevirtual

returns the area of tile itile.

Here with a default implementation to return mean_tile_area(), consistent with the fact that all_tiles_equal_area() returns true.

Reimplemented in fastjet::RectangularGrid.

Definition at line 70 of file RectangularGrid.hh.


The documentation for this class was generated from the following file:
