#include <ClosestPair2D.hh>

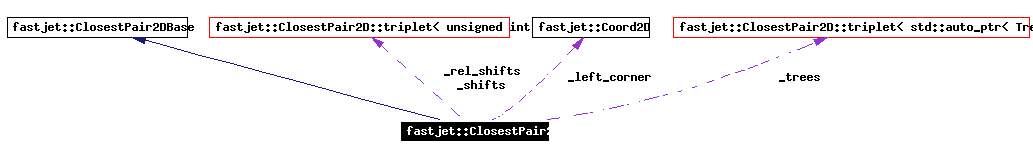

Inheritance diagram for fastjet::ClosestPair2D:
Public Member Functions | |
| ClosestPair2D (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner) | |
| constructor from a vector of 2D positions -- number of objects after insertion and deletion must never exceed positions.size(); objects are given IDs that correspond to their index in the vector of positions | |
| ClosestPair2D (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner, const unsigned int max_size) | |
| constructor which allows structure to grow beyond positions.size(), up to max_size | |
| void | closest_pair (unsigned int &ID1, unsigned int &ID2, double &distance2) const |
| provides the IDs of the closest pair as well as the distance between them | |
| void | remove (unsigned int ID) |
| removes the entry labelled by ID from the object; | |
| unsigned int | insert (const Coord2D &) |
| inserts the position into the closest pair structure and returns the ID that has been allocated for the object. | |
| virtual unsigned int | replace (unsigned int ID1, unsigned int ID2, const Coord2D &position) |
| removes ID1 and ID2 and inserts position, returning the ID corresponding to position. | |
| virtual void | replace_many (const std::vector< unsigned int > &IDs_to_remove, const std::vector< Coord2D > &new_positions, std::vector< unsigned int > &new_IDs) |
| replaces IDs_to_remove with points at the new_positions indicating the IDs allocated to the new points in new_IDs | |
| void | print_tree_depths (std::ostream &outdev) const |
| unsigned int | size () |
Private Types | |
| typedef SearchTree< Shuffle > | Tree |
| typedef Tree::circulator | circulator |
| typedef Tree::const_circulator | const_circulator |
Private Member Functions | |
| void | _initialize (const std::vector< Coord2D > &positions, const Coord2D &left_corner, const Coord2D &right_corner, const unsigned int max_size) |
| void | _add_label (Point *point, unsigned int review_flag) |
| add a label to a point as to the nature of review needed (includes adding it to list of points needing review) [doesn't affect other labels already set for the point] | |
| void | _set_label (Point *point, unsigned int review_flag) |
| sets the label for the point to be exclusively this review flag (and adds it to list of points needing review if not already there) | |
| void | _deal_with_points_to_review () |
| for all entries of the _points_under_review[] vector, carry out the actions indicated by its review flag; the points are then removed from _points_under_review[] and their flags set to zero | |
| void | _remove_from_search_tree (Point *point_to_remove) |
| carry out the search-tree related operations of point removal | |
| void | _insert_into_search_tree (Point *new_point) |
| carry out the search-tree related operations of point insertion | |
| void | _point2shuffle (Point &, Shuffle &, unsigned int shift) |
| takes a point and sets a shuffle with the given shift... | |
| int | _ID (const Point *) const |
| returns the ID for the specified point... | |
Private Attributes | |
| triplet< std::auto_ptr< Tree > > | _trees |
| std::auto_ptr< MinHeap > | _heap |
| std::vector< Point > | _points |
| std::stack< Point * > | _available_points |
| std::vector< Point * > | _points_under_review |
| points that are "under review" in some way | |
| Coord2D | _left_corner |
| pieces needed for converting coordinates to integer | |
| double | _range |
| triplet< unsigned int > | _shifts |
| triplet< unsigned int > | _rel_shifts |
| unsigned int | _cp_search_range |
Static Private Attributes | |
| static const unsigned int | _nshift = 3 |
| static const unsigned int | _remove_heap_entry = 1 |
| static const unsigned int | _review_heap_entry = 2 |
| static const unsigned int | _review_neighbour = 4 |
Classes | |
| class | Point |
| class for representing all info needed about a point More... | |
| class | Shuffle |
| class that will take care of ordering of shuffles for us More... | |
| class | triplet |
| since sets of three objects will crop up repeatedly, useful to have a triplet class? More... | |
Definition at line 46 of file ClosestPair2D.hh.
|
|
Definition at line 128 of file ClosestPair2D.hh. |
|
|
Definition at line 129 of file ClosestPair2D.hh. |
|
|
Definition at line 127 of file ClosestPair2D.hh. |
|
||||||||||||||||
|
constructor from a vector of 2D positions -- number of objects after insertion and deletion must never exceed positions.size(); objects are given IDs that correspond to their index in the vector of positions
Definition at line 52 of file ClosestPair2D.hh. 00053 {
00054 _initialize(positions, left_corner, right_corner, positions.size());
00055 };
|
|
||||||||||||||||||||
|
constructor which allows structure to grow beyond positions.size(), up to max_size
Definition at line 59 of file ClosestPair2D.hh. 00061 {
00062 _initialize(positions, left_corner, right_corner, max_size);
00063 };
|
|
||||||||||||
|
add a label to a point as to the nature of review needed (includes adding it to list of points needing review) [doesn't affect other labels already set for the point]
Definition at line 191 of file ClosestPair2D.cc. References _points_under_review, and fastjet::ClosestPair2D::Point::review_flag. Referenced by _insert_into_search_tree(), and _remove_from_search_tree(). 00191 {
00192
00193 // if it's not already under review, then put it on the list of
00194 // points needing review
00195 if (point->review_flag == 0) _points_under_review.push_back(point);
00196
00197 // OR the point's current flag with the requested review flag
00198 point->review_flag |= review_flag;
00199 }
|
|
|
for all entries of the _points_under_review[] vector, carry out the actions indicated by its review flag; the points are then removed from _points_under_review[] and their flags set to zero
Definition at line 295 of file ClosestPair2D.cc. References _cp_search_range, _heap, _ID(), _nshift, _points_under_review, _remove_heap_entry, _review_neighbour, fastjet::ClosestPair2D::Point::circ, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, fastjet::ClosestPair2D::Point::review_flag, and size(). Referenced by insert(), remove(), replace(), and replace_many(). 00295 {
00296
00297 // the range in which we carry out searches for new neighbours on
00298 // the search tree
00299 unsigned int CP_range = min(_cp_search_range, size()-1);
00300
00301 // now deal with the points that are "under review" in some way
00302 // (have lost their neighbour, or need their heap entry updating)
00303 while(_points_under_review.size() > 0) {
00304 // get the point to be considered
00305 Point * this_point = _points_under_review.back();
00306 // remove it from the list
00307 _points_under_review.pop_back();
00308
00309 if (this_point->review_flag & _remove_heap_entry) {
00310 // make sure no other flags are on (it wouldn't be consistent?)
00311 assert(!(this_point->review_flag ^ _remove_heap_entry));
00312 _heap->remove(_ID(this_point));
00313 }
00314 // check to see if the _review_neighbour flag is on
00315 else {
00316 if (this_point->review_flag & _review_neighbour) {
00317 this_point->neighbour_dist2 = numeric_limits<double>::max();
00318 // among all three shifts
00319 for (unsigned int ishift = 0; ishift < _nshift; ishift++) {
00320 circulator other = this_point->circ[ishift];
00321 // among points within CP_range
00322 for (unsigned i=0; i < CP_range; i++) {
00323 ++other;
00324 double dist2 = this_point->distance2(*other->point);
00325 if (dist2 < this_point->neighbour_dist2) {
00326 this_point->neighbour_dist2 = dist2;
00327 this_point->neighbour = other->point;
00328 }
00329 }
00330 }
00331 }
00332
00333 // for any non-zero review flag we'll have to update the heap
00334 _heap->update(_ID(this_point), this_point->neighbour_dist2);
00335 }
00336
00337 // "delabel" the point
00338 this_point->review_flag = 0;
00339
00340 }
00341
00342 }
|
|
|
returns the ID for the specified point...
Definition at line 220 of file ClosestPair2D.hh. References _points. Referenced by _deal_with_points_to_review(), closest_pair(), insert(), replace(), and replace_many(). 00220 {
00221 return point - &(_points[0]);
00222 }
|
|
||||||||||||||||||||
|
Definition at line 78 of file ClosestPair2D.cc. References _available_points, _cp_search_range, _heap, _left_corner, _nshift, _point2shuffle(), _points, _points_under_review, _range, _rel_shifts, _shifts, _trees, fastjet::ClosestPair2D::Point::circ, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, fastjet::twopow31, fastjet::Coord2D::x, and fastjet::Coord2D::y. 00081 {
00082
00083 unsigned int n_positions = positions.size();
00084 assert(max_size >= n_positions);
00085
00086 //_points(positions.size())
00087
00088 // allow the points array to grow to the following size
00089 _points.resize(max_size);
00090 // currently unused points are immediately made available on the
00091 // stack
00092 for (unsigned int i = n_positions; i < max_size; i++) {
00093 _available_points.push(&(_points[i]));
00094 }
00095
00096 _left_corner = left_corner;
00097 _range = max((right_corner.x - left_corner.x),
00098 (right_corner.y - left_corner.y));
00099
00100 // initialise the coordinates for the points and create the zero-shifted
00101 // shuffle array
00102 vector<Shuffle> shuffles(n_positions);
00103 for (unsigned int i = 0; i < n_positions; i++) {
00104 // set up the points
00105 _points[i].coord = positions[i];
00106 _points[i].neighbour_dist2 = numeric_limits<double>::max();
00107 _points[i].review_flag = 0;
00108
00109 // create shuffle with 0 shift.
00110 _point2shuffle(_points[i], shuffles[i], 0);
00111 }
00112
00113 // establish what our shifts will be
00114 for (unsigned ishift = 0; ishift < _nshift; ishift++) {
00115 // make sure we use double-precision for calculating the shifts
00116 // since otherwise we will hit integer overflow.
00117 _shifts[ishift] = static_cast<unsigned int>(((twopow31*1.0)*ishift)/_nshift);
00118 if (ishift == 0) {_rel_shifts[ishift] = 0;}
00119 else {_rel_shifts[ishift] = _shifts[ishift] - _shifts[ishift-1];}
00120 }
00121 //_shifts[0] = 0;
00122 //_shifts[1] = static_cast<unsigned int>((twopow31*1.0)/3.0);
00123 //_shifts[2] = static_cast<unsigned int>((twopow31*2.0)/3.0);
00124 //_rel_shifts[0] = 0;
00125 //_rel_shifts[1] = _shifts[1];
00126 //_rel_shifts[2] = _shifts[2]-_shifts[1];
00127
00128 // and how we will search...
00129 //_cp_search_range = 49;
00130 _cp_search_range = 30;
00131 _points_under_review.reserve(_nshift * _cp_search_range);
00132
00133 // now initialise the three trees
00134 for (unsigned int ishift = 0; ishift < _nshift; ishift++) {
00135
00136 // shift the shuffles if need be.
00137 if (ishift > 0) {
00138 unsigned rel_shift = _rel_shifts[ishift];
00139 for (unsigned int i = 0; i < shuffles.size(); i++) {
00140 shuffles[i] += rel_shift; }
00141 }
00142
00143 // sort the shuffles
00144 sort(shuffles.begin(), shuffles.end());
00145
00146 // and create the search tree
00147 _trees[ishift] = auto_ptr<Tree>(new Tree(shuffles, max_size));
00148
00149 // now we look for the closest-pair candidates on this tree
00150 circulator circ = _trees[ishift]->somewhere(), start=circ;
00151 // the actual range in which we search
00152 unsigned int CP_range = min(_cp_search_range, n_positions-1);
00153 do {
00154 Point * this_point = circ->point;
00155 //cout << _ID(this_point) << " ";
00156 this_point->circ[ishift] = circ;
00157 // run over all points within _cp_search_range of this_point on tree
00158 circulator other = circ;
00159 for (unsigned i=0; i < CP_range; i++) {
00160 ++other;
00161 double dist2 = this_point->distance2(*other->point);
00162 if (dist2 < this_point->neighbour_dist2) {
00163 this_point->neighbour_dist2 = dist2;
00164 this_point->neighbour = other->point;
00165 }
00166 }
00167 } while (++circ != start);
00168 //cout << endl<<endl;
00169 }
00170
00171 // now initialise the heap object...
00172 vector<double> mindists2(n_positions);
00173 for (unsigned int i = 0; i < n_positions; i++) {
00174 mindists2[i] = _points[i].neighbour_dist2;}
00175
00176 _heap = auto_ptr<MinHeap>(new MinHeap(mindists2, max_size));
00177 }
|
|
|
carry out the search-tree related operations of point insertion
Definition at line 430 of file ClosestPair2D.cc. References _add_label(), _cp_search_range, _nshift, _point2shuffle(), _review_heap_entry, _review_neighbour, _set_label(), _shifts, _trees, fastjet::ClosestPair2D::Point::circ, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, and size(). Referenced by insert(), replace(), and replace_many(). 00430 {
00431
00432 // this point will have to have it's heap entry reviewed...
00433 _set_label(new_point, _review_heap_entry);
00434
00435 // set the current distance to "infinity"
00436 new_point->neighbour_dist2 = numeric_limits<double>::max();
00437
00438 // establish how far we will be searching;
00439 unsigned int CP_range = min(_cp_search_range, size()-1);
00440
00441 for (unsigned ishift = 0; ishift < _nshift; ishift++) {
00442 // create the shuffle
00443 Shuffle new_shuffle;
00444 _point2shuffle(*new_point, new_shuffle, _shifts[ishift]);
00445
00446 // insert it into the tree
00447 circulator new_circ = _trees[ishift]->insert(new_shuffle);
00448 new_point->circ[ishift] = new_circ;
00449
00450 // now get hold of the right and left edges of the region we will be
00451 // looking at (cf CCN28-43)
00452 circulator right_edge = new_circ; right_edge++;
00453 circulator left_edge = new_circ;
00454 for (unsigned int i = 0; i < CP_range; i++) {left_edge--;}
00455
00456 // now
00457 do {
00458 Point * left_point = left_edge->point;
00459 Point * right_point = right_edge->point;
00460
00461 // see if the new point is closer to the left-edge than the latter's
00462 // current neighbour
00463 double new_dist2 = left_point->distance2(*new_point);
00464 if (new_dist2 < left_point->neighbour_dist2) {
00465 left_point->neighbour_dist2 = new_dist2;
00466 left_point->neighbour = new_point;
00467 _add_label(left_point, _review_heap_entry);
00468 }
00469
00470 // see if the right-point is closer to the new point than it's current
00471 // neighbour
00472 new_dist2 = new_point->distance2(*right_point);
00473 if (new_dist2 < new_point->neighbour_dist2) {
00474 new_point->neighbour_dist2 = new_dist2;
00475 new_point->neighbour = right_point;
00476 }
00477
00478 // if the right-edge point was the left-edge's neighbour, then
00479 // then it's just gone off-radar and the left-point will need to
00480 // have its neighbour recalculated [actually, this is overdoing
00481 // it a little, since right point may be an less "distant"
00482 // (circulator distance) in one of the other shifts -- but not
00483 // sure how to deal with this...]
00484 if (left_point->neighbour == right_point) {
00485 _add_label(left_point, _review_neighbour);
00486 }
00487
00488 // shift the left and right edges until left edge hits new_circ
00489 right_edge++;
00490 } while (++left_edge != new_circ);
00491 }
00492 }
|
|
||||||||||||||||
|
takes a point and sets a shuffle with the given shift...
Definition at line 46 of file ClosestPair2D.cc. References _left_corner, _range, fastjet::ClosestPair2D::Point::coord, fastjet::ClosestPair2D::Shuffle::point, fastjet::twopow31, fastjet::ClosestPair2D::Shuffle::x, fastjet::Coord2D::x, fastjet::ClosestPair2D::Shuffle::y, and fastjet::Coord2D::y. Referenced by _initialize(), and _insert_into_search_tree(). 00047 {
00048
00049 Coord2D renorm_point = (point.coord - _left_corner)/_range;
00050 // make sure the point is sensible
00051 //cerr << point.coord.x <<" "<<point.coord.y<<endl;
00052 assert(renorm_point.x >=0);
00053 assert(renorm_point.x <=1);
00054 assert(renorm_point.y >=0);
00055 assert(renorm_point.y <=1);
00056
00057 shuffle.x = static_cast<unsigned int>(twopow31 * renorm_point.x) + shift;
00058 shuffle.y = static_cast<unsigned int>(twopow31 * renorm_point.y) + shift;
00059 shuffle.point = &point;
00060 }
|
|
|
carry out the search-tree related operations of point removal
Definition at line 229 of file ClosestPair2D.cc. References _add_label(), _available_points, _cp_search_range, _nshift, _remove_heap_entry, _review_heap_entry, _review_neighbour, _set_label(), _trees, fastjet::ClosestPair2D::Point::distance2(), fastjet::ClosestPair2D::Point::neighbour, fastjet::ClosestPair2D::Point::neighbour_dist2, and size(). Referenced by remove(), replace(), and replace_many(). 00229 {
00230
00231 // add this point to the list of "available" points (this is
00232 // relevant also from the point of view of determining the range
00233 // over which we circulate).
00234 _available_points.push(point_to_remove);
00235
00236 // label it so that it goes from the heap
00237 _set_label(point_to_remove, _remove_heap_entry);
00238
00239 // establish the range over which we search (a) for points that have
00240 // acquired a new neighbour and (b) for points which had ID as their
00241 // neighbour;
00242
00243 unsigned int CP_range = min(_cp_search_range, size()-1);
00244
00245 // then, for each shift
00246 for (unsigned int ishift = 0; ishift < _nshift; ishift++) {
00247 //cout << " ishift = " << ishift <<endl;
00248 // get the circulator for the point we'll remove and its successor
00249 circulator removed_circ = point_to_remove->circ[ishift];
00250 circulator right_end = removed_circ.next();
00251 // remove the point
00252 _trees[ishift]->remove(removed_circ);
00253
00254 // next find the point CP_range points to the left
00255 circulator left_end = right_end, orig_right_end = right_end;
00256 for (unsigned int i = 0; i < CP_range; i++) {left_end--;}
00257
00258 if (size()-1 < _cp_search_range) {
00259 // we have a smaller range now than before -- but when seeing who
00260 // could have had ID as a neighbour, we still need to use the old
00261 // range for seeing how far back we search (but new separation between
00262 // points). [cf CCN28-42]
00263 left_end--; right_end--;
00264 }
00265
00266 // and then for each left-end point: establish if the removed
00267 // point was its neighbour [in which case a new neighbour must be
00268 // found], otherwise see if the right-end point is a closer neighbour
00269 do {
00270 Point * left_point = left_end->point;
00271
00272 //cout << " visited " << setw(3)<<_ID(left_point)<<" (its neighbour was "<< setw(3)<< _ID(left_point->neighbour)<<")"<<endl;
00273
00274 if (left_point->neighbour == point_to_remove) {
00275 // we'll deal with it later...
00276 _add_label(left_point, _review_neighbour);
00277 } else {
00278 // check to see if right point has become its closest neighbour
00279 double dist2 = left_point->distance2(*right_end->point);
00280 if (dist2 < left_point->neighbour_dist2) {
00281 left_point->neighbour = right_end->point;
00282 left_point->neighbour_dist2 = dist2;
00283 // NB: (LESSER) REVIEW NEEDED HERE TOO...
00284 _add_label(left_point, _review_heap_entry);
00285 }
00286 }
00287 ++right_end;
00288 } while (++left_end != orig_right_end);
00289 } // ishift...
00290
00291 }
|
|
||||||||||||
|
sets the label for the point to be exclusively this review flag (and adds it to list of points needing review if not already there)
Definition at line 202 of file ClosestPair2D.cc. References _points_under_review. Referenced by _insert_into_search_tree(), and _remove_from_search_tree(). 00202 {
00203
00204 // if it's not already under review, then put it on the list of
00205 // points needing review
00206 if (point->review_flag == 0) _points_under_review.push_back(point);
00207
00208 // SET the point's current flag to the requested review flag
00209 point->review_flag = review_flag;
00210 }
|
|
||||||||||||||||
|
provides the IDs of the closest pair as well as the distance between them
Implements fastjet::ClosestPair2DBase. Definition at line 181 of file ClosestPair2D.cc. References _heap, _ID(), and _points. Referenced by fastjet::ClusterSequence::_CP2DChan_cluster(), and fastjet::ClusterSequence::_CP2DChan_limited_cluster(). 00182 {
00183 ID1 = _heap->minloc();
00184 ID2 = _ID(_points[ID1].neighbour);
00185 distance2 = _points[ID1].neighbour_dist2;
00186 if (ID1 > ID2) swap(ID1,ID2);
00187 }
|
|
|
inserts the position into the closest pair structure and returns the ID that has been allocated for the object.
Implements fastjet::ClosestPair2DBase. Definition at line 345 of file ClosestPair2D.cc. References _available_points, _deal_with_points_to_review(), _ID(), _insert_into_search_tree(), and fastjet::ClosestPair2D::Point::coord. 00345 {
00346
00347 // get hold of a point
00348 assert(_available_points.size() > 0);
00349 Point * new_point = _available_points.top();
00350 _available_points.pop();
00351
00352 // set the point's coordinate
00353 new_point->coord = new_coord;
00354
00355 // now find it's neighbour in the search tree
00356 _insert_into_search_tree(new_point);
00357
00358 // sort out other points that may have been affected by this,
00359 // and/or for which the heap needs to be updated
00360 _deal_with_points_to_review();
00361
00362 //
00363 return _ID(new_point);
00364 }
|
|
|
Definition at line 89 of file ClosestPair2D.hh. 00089 {
00090 outdev << _trees[0]->max_depth() << " "
00091 << _trees[1]->max_depth() << " "
00092 << _trees[2]->max_depth() << "\n";
00093 };
|
|
|
removes the entry labelled by ID from the object;
Implements fastjet::ClosestPair2DBase. Definition at line 213 of file ClosestPair2D.cc. References _deal_with_points_to_review(), _points, and _remove_from_search_tree(). 00213 {
00214
00215 //cout << "While removing " << ID <<endl;
00216
00217 Point * point_to_remove = & (_points[ID]);
00218
00219 // remove this point from the search tree
00220 _remove_from_search_tree(point_to_remove);
00221
00222 // the above statement labels certain points as needing "review" --
00223 // deal with them...
00224 _deal_with_points_to_review();
00225 }
|
|
||||||||||||||||
|
removes ID1 and ID2 and inserts position, returning the ID corresponding to position. .. Reimplemented from fastjet::ClosestPair2DBase. Definition at line 367 of file ClosestPair2D.cc. References _available_points, _deal_with_points_to_review(), _ID(), _insert_into_search_tree(), _points, _remove_from_search_tree(), and fastjet::ClosestPair2D::Point::coord. Referenced by fastjet::ClusterSequence::_CP2DChan_cluster(). 00368 {
00369
00370 // deletion from tree...
00371 Point * point_to_remove = & (_points[ID1]);
00372 _remove_from_search_tree(point_to_remove);
00373
00374 point_to_remove = & (_points[ID2]);
00375 _remove_from_search_tree(point_to_remove);
00376
00377 // insertion into tree
00378 // get hold of a point
00379 Point * new_point = _available_points.top();
00380 _available_points.pop();
00381
00382 // set the point's coordinate
00383 new_point->coord = position;
00384
00385 // now find it's neighbour in the search tree
00386 _insert_into_search_tree(new_point);
00387
00388 // the above statement labels certain points as needing "review" --
00389 // deal with them...
00390 _deal_with_points_to_review();
00391
00392 //
00393 return _ID(new_point);
00394
00395 }
|
|
||||||||||||||||
|
replaces IDs_to_remove with points at the new_positions indicating the IDs allocated to the new points in new_IDs
Reimplemented from fastjet::ClosestPair2DBase. Definition at line 399 of file ClosestPair2D.cc. References _available_points, _deal_with_points_to_review(), _ID(), _insert_into_search_tree(), _points, _remove_from_search_tree(), and fastjet::ClosestPair2D::Point::coord. Referenced by fastjet::ClusterSequence::_CP2DChan_limited_cluster(). 00402 {
00403
00404 // deletion from tree...
00405 for (unsigned int i = 0; i < IDs_to_remove.size(); i++) {
00406 _remove_from_search_tree(& (_points[IDs_to_remove[i]]));
00407 }
00408
00409 // insertion into tree
00410 new_IDs.resize(0);
00411 for (unsigned int i = 0; i < new_positions.size(); i++) {
00412 Point * new_point = _available_points.top();
00413 _available_points.pop();
00414 // set the point's coordinate
00415 new_point->coord = new_positions[i];
00416 // now find it's neighbour in the search tree
00417 _insert_into_search_tree(new_point);
00418 // record the ID
00419 new_IDs.push_back(_ID(new_point));
00420 }
00421
00422 // the above statement labels certain points as needing "review" --
00423 // deal with them...
00424 _deal_with_points_to_review();
00425
00426 }
|
|
|
Implements fastjet::ClosestPair2DBase. Definition at line 226 of file ClosestPair2D.hh. References _available_points, and _points. Referenced by _deal_with_points_to_review(), _insert_into_search_tree(), and _remove_from_search_tree(). 00226 {
00227 return _points.size() - _available_points.size();
00228 }
|
|
|
Definition at line 135 of file ClosestPair2D.hh. Referenced by _initialize(), _remove_from_search_tree(), insert(), replace(), replace_many(), and size(). |
|
|
Definition at line 179 of file ClosestPair2D.hh. Referenced by _deal_with_points_to_review(), _initialize(), _insert_into_search_tree(), and _remove_from_search_tree(). |
|
|
Definition at line 133 of file ClosestPair2D.hh. Referenced by _deal_with_points_to_review(), _initialize(), and closest_pair(). |
|
|
pieces needed for converting coordinates to integer
Definition at line 171 of file ClosestPair2D.hh. Referenced by _initialize(), and _point2shuffle(). |
|
|
Definition at line 103 of file ClosestPair2D.hh. Referenced by _deal_with_points_to_review(), _initialize(), _insert_into_search_tree(), and _remove_from_search_tree(). |
|
|
Definition at line 134 of file ClosestPair2D.hh. Referenced by _ID(), _initialize(), closest_pair(), remove(), replace(), replace_many(), and size(). |
|
|
points that are "under review" in some way
Definition at line 138 of file ClosestPair2D.hh. Referenced by _add_label(), _deal_with_points_to_review(), _initialize(), and _set_label(). |
|
|
Definition at line 172 of file ClosestPair2D.hh. Referenced by _initialize(), and _point2shuffle(). |
|
|
Definition at line 177 of file ClosestPair2D.hh. Referenced by _initialize(). |
|
|
Definition at line 141 of file ClosestPair2D.hh. Referenced by _deal_with_points_to_review(), and _remove_from_search_tree(). |
|
|
Definition at line 142 of file ClosestPair2D.hh. Referenced by _insert_into_search_tree(), and _remove_from_search_tree(). |
|
|
Definition at line 143 of file ClosestPair2D.hh. Referenced by _deal_with_points_to_review(), _insert_into_search_tree(), and _remove_from_search_tree(). |
|
|
Definition at line 176 of file ClosestPair2D.hh. Referenced by _initialize(), and _insert_into_search_tree(). |
|
|
Definition at line 132 of file ClosestPair2D.hh. Referenced by _initialize(), _insert_into_search_tree(), and _remove_from_search_tree(). |
1.4.2
