fastjet::ClusterSequence::Tile Struct Reference

The fundamental structures to be used for the tiled N^2 algorithm (see CCN27-44 for some discussion of pattern of tiling). More...

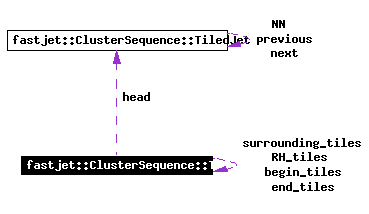

Collaboration diagram for fastjet::ClusterSequence::Tile:

[legend]List of all members.

Public Attributes
Tile *	begin_tiles [n_tile_neighbours]
	pointers to neighbouring tiles, including self
Tile **	surrounding_tiles
	neighbouring tiles, excluding self
Tile **	RH_tiles
	half of neighbouring tiles, no self
Tile **	end_tiles
	just beyond end of tiles
TiledJet *	head
	start of list of BriefJets contained in this tile
bool	tagged
	sometimes useful to be able to tag a tile

---

Detailed Description

The fundamental structures to be used for the tiled N^2 algorithm (see CCN27-44 for some discussion of pattern of tiling).

Definition at line 487 of file ClusterSequence.hh.

---

Member Data Documentation

Tile* fastjet::ClusterSequence::Tile::begin_tiles[n_tile_neighbours]

pointers to neighbouring tiles, including self Definition at line 489 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_faster_tiled_N2_cluster(), fastjet::ClusterSequence::_initialise_tiles(), fastjet::ClusterSequence::_minheap_faster_tiled_N2_cluster(), and fastjet::ClusterSequence::_tiled_N2_cluster().

Tile** fastjet::ClusterSequence::Tile::end_tiles

just beyond end of tiles Definition at line 495 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_faster_tiled_N2_cluster(), fastjet::ClusterSequence::_initialise_tiles(), fastjet::ClusterSequence::_minheap_faster_tiled_N2_cluster(), and fastjet::ClusterSequence::_tiled_N2_cluster().

TiledJet* fastjet::ClusterSequence::Tile::head

start of list of BriefJets contained in this tile Definition at line 497 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_bj_remove_from_tiles(), fastjet::ClusterSequence::_faster_tiled_N2_cluster(), fastjet::ClusterSequence::_initialise_tiles(), fastjet::ClusterSequence::_minheap_faster_tiled_N2_cluster(), fastjet::ClusterSequence::_tiled_N2_cluster(), and fastjet::ClusterSequence::_tj_set_jetinfo().

Tile** fastjet::ClusterSequence::Tile::RH_tiles

half of neighbouring tiles, no self Definition at line 493 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_initialise_tiles().

Tile** fastjet::ClusterSequence::Tile::surrounding_tiles

neighbouring tiles, excluding self Definition at line 491 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_initialise_tiles().

bool fastjet::ClusterSequence::Tile::tagged

sometimes useful to be able to tag a tile Definition at line 499 of file ClusterSequence.hh. Referenced by fastjet::ClusterSequence::_faster_tiled_N2_cluster(), fastjet::ClusterSequence::_initialise_tiles(), and fastjet::ClusterSequence::_minheap_faster_tiled_N2_cluster().

---

The documentation for this struct was generated from the following file:

• include/fastjet/ClusterSequence.hh

---
