class that is intended to hold a full definition of the jet clusterer More...

#include <JetDefinition.hh>

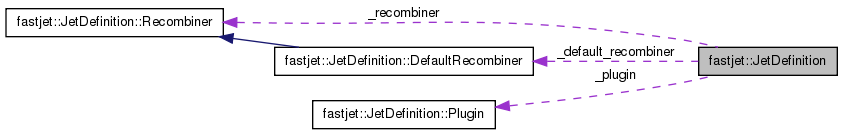

Collaboration diagram for fastjet::JetDefinition:

Classes
class	DefaultRecombiner
	A class that will provide the recombination scheme facilities and/or allow a user to extend these facilities. More...
class	Plugin
	a class that allows a user to introduce their own "plugin" jet finder More...
class	Recombiner
	An abstract base class that will provide the recombination scheme facilities and/or allow a user to extend these facilities. More...
Public Member Functions
	JetDefinition (JetAlgorithm jet_algorithm, double R, RecombinationScheme recomb_scheme=E_scheme, Strategy strategy=Best)
	constructor with alternative ordering or arguments -- note that we have not provided a default jet finder, to avoid ambiguous JetDefinition() constructor.
	JetDefinition (JetAlgorithm jet_algorithm, RecombinationScheme recomb_scheme=E_scheme, Strategy strategy=Best)
	constructor for algorithms that have no free parameters (e.g.
	JetDefinition (JetAlgorithm jet_algorithm, double R, double xtra_param, RecombinationScheme recomb_scheme=E_scheme, Strategy strategy=Best)
	constructor for algorithms that require R + one extra parameter to be set (the gen-kt series for example)
	JetDefinition (JetAlgorithm jet_algorithm, double R, const Recombiner *recombiner, Strategy strategy=Best)
	constructor in a form that allows the user to provide a pointer to an external recombiner class (which must remain valid for the life of the JetDefinition object).
	JetDefinition (JetAlgorithm jet_algorithm, const Recombiner *recombiner, Strategy strategy=Best)
	constructor for case with 0 parameters (ee_kt_algorithm) and and external recombiner
	JetDefinition (JetAlgorithm jet_algorithm, double R, double xtra_param, const Recombiner *recombiner, Strategy strategy=Best)
	constructor allowing the extra parameter to be set and a pointer to a recombiner
	JetDefinition ()
	a default constructor
	JetDefinition (const Plugin *plugin)
	constructor based on a pointer to a user's plugin; the object pointed to must remain valid for the whole duration of existence of the JetDefinition and any related ClusterSequences
	JetDefinition (JetAlgorithm jet_algorithm, double R, Strategy strategy, RecombinationScheme recomb_scheme=E_scheme, int nparameters=1)
	constructor to fully specify a jet-definition (together with information about how algorithically to run it).
void	set_recombination_scheme (RecombinationScheme)
	set the recombination scheme to the one provided
void	set_recombiner (const Recombiner *recomb)
	set the recombiner class to the one provided
const Plugin *	plugin () const
	return a pointer to the plugin
JetAlgorithm	jet_algorithm () const
	return information about the definition...
JetAlgorithm	jet_finder () const
	same as above for backward compatibility
double	R () const
double	extra_param () const
Strategy	strategy () const
RecombinationScheme	recombination_scheme () const
void	set_jet_algorithm (JetAlgorithm njf)
	(re)set the jet finder
void	set_jet_finder (JetAlgorithm njf)
	same as above for backward compatibility
void	set_extra_param (double xtra_param)
	(re)set the general purpose extra parameter
const Recombiner *	recombiner () const
	return a pointer to the currently defined recombiner (it may be the internal one)
std::string	description () const
	return a textual description of the current jet definition
Private Attributes
JetAlgorithm	_jet_algorithm
double	_Rparam
double	_extra_param
	parameter whose meaning varies according to context
Strategy	_strategy
const Plugin *	_plugin
DefaultRecombiner	_default_recombiner
const Recombiner *	_recombiner

Detailed Description

class that is intended to hold a full definition of the jet clusterer

Definition at line 160 of file JetDefinition.hh.

Constructor & Destructor Documentation

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		RecombinationScheme	recomb_scheme = `E_scheme`,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor with alternative ordering or arguments -- note that we have not provided a default jet finder, to avoid ambiguous JetDefinition() constructor.

Definition at line 178 of file JetDefinition.hh.

                                          {
    *this = JetDefinition(jet_algorithm, R, strategy, recomb_scheme, 1);
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		RecombinationScheme	recomb_scheme = `E_scheme`,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor for algorithms that have no free parameters (e.g.

ee_kt_algorithm)

Definition at line 187 of file JetDefinition.hh.

                                          {
    double dummyR = 0.0;
    *this = JetDefinition(jet_algorithm, dummyR, strategy, recomb_scheme, 0);
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		double	xtra_param,
		RecombinationScheme	recomb_scheme = `E_scheme`,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor for algorithms that require R + one extra parameter to be set (the gen-kt series for example)

Definition at line 196 of file JetDefinition.hh.

                                          {
    *this = JetDefinition(jet_algorithm, R, strategy, recomb_scheme, 2);
    set_extra_param(xtra_param);
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		const Recombiner *	recombiner,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor in a form that allows the user to provide a pointer to an external recombiner class (which must remain valid for the life of the JetDefinition object).

Definition at line 209 of file JetDefinition.hh.

References fastjet::external_scheme.

                                          {
    *this = JetDefinition(jet_algorithm, R, external_scheme, strategy);
    _recombiner = recombiner;
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		const Recombiner *	recombiner,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor for case with 0 parameters (ee_kt_algorithm) and and external recombiner

Definition at line 220 of file JetDefinition.hh.

References fastjet::external_scheme.

                                          {
    *this = JetDefinition(jet_algorithm, external_scheme, strategy);
    _recombiner = recombiner;
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		double	xtra_param,
		const Recombiner *	recombiner,
		Strategy	strategy = `Best`
	)		`[inline]`

constructor allowing the extra parameter to be set and a pointer to a recombiner

Definition at line 229 of file JetDefinition.hh.

References fastjet::external_scheme.

                                          {
    *this = JetDefinition(jet_algorithm, R, external_scheme, strategy);
    _recombiner = recombiner;
    set_extra_param(xtra_param);
  }

fastjet::JetDefinition::JetDefinition ( ) [inline]

a default constructor

Definition at line 240 of file JetDefinition.hh.

References fastjet::kt_algorithm.

                  {
    *this = JetDefinition(kt_algorithm, 1.0);
  }

fastjet::JetDefinition::JetDefinition ( const Plugin * plugin ) [inline]

constructor based on a pointer to a user's plugin; the object pointed to must remain valid for the whole duration of existence of the JetDefinition and any related ClusterSequences

Definition at line 247 of file JetDefinition.hh.

References fastjet::E_scheme, fastjet::plugin_algorithm, and fastjet::plugin_strategy.

                                       {
    _plugin = plugin;
    _strategy = plugin_strategy;
    _Rparam = _plugin->R();
    _jet_algorithm = plugin_algorithm;
    set_recombination_scheme(E_scheme);
  }

fastjet::JetDefinition::JetDefinition	(	JetAlgorithm	jet_algorithm,
		double	R,
		Strategy	strategy,
		RecombinationScheme	recomb_scheme = `E_scheme`,
		int	nparameters = `1`
	)

constructor to fully specify a jet-definition (together with information about how algorithically to run it).

the ordering of arguments here is old and deprecated (except as the common constructor for internal use)

Definition at line 42 of file JetDefinition.cc.

References _plugin, _Rparam, _strategy, fastjet::ee_genkt_algorithm, fastjet::ee_kt_algorithm, fastjet::genkt_algorithm, fastjet::pi, fastjet::plugin_strategy, set_extra_param(), and set_recombination_scheme().

                                              :
  _jet_algorithm(jet_algorithm), _Rparam(R), _strategy(strategy) {

  // set R parameter or ensure its sensibleness, as appropriate
  if (jet_algorithm == ee_kt_algorithm) {
    _Rparam = 4.0; // introduce a fictional R that ensures that
                   // our clustering sequence will not produce
                   // "beam" jets except when only a single particle remains.
                   // Any value > 2 would have done here
  } else if (jet_algorithm != ee_genkt_algorithm) {
    assert(_Rparam <= 0.5*pi);
  }

  // cross-check the number of parameters that were declared in setting up the
  // algorithm (passed internally from the public constructors)
  ostringstream oss;
  switch (jet_algorithm) {
  case ee_kt_algorithm:
    if (nparameters != 0) oss << "ee_kt_algorithm should be constructed with 0 parameters but was called with "
                              << nparameters << " parameter(s)\n";
    break;
  case genkt_algorithm:
  case ee_genkt_algorithm:
    if (nparameters != 2) oss << "(ee_)genkt_algorithm should be constructed with 2 parameters but was called with "
                              << nparameters << " parameter(s)\n";
    break;
  default:
    if (nparameters != 1)
    oss << "The jet algorithm you requested ("
        << jet_algorithm << ") should be constructed with 1 parameter but was called with "
        << nparameters << " parameter(s)\n";
  }
  if (oss.str() != "") throw Error(oss.str());

  // make sure the strategy requested is sensible
  assert (_strategy  != plugin_strategy);

  _plugin = NULL;
  set_recombination_scheme(recomb_scheme);
  set_extra_param(0.0); // make sure it's defined
}

Member Function Documentation

string fastjet::JetDefinition::description ( ) const

return a textual description of the current jet definition

Definition at line 90 of file JetDefinition.cc.

References fastjet::antikt_algorithm, fastjet::cambridge_algorithm, fastjet::cambridge_for_passive_algorithm, fastjet::JetDefinition::Recombiner::description(), fastjet::JetDefinition::Plugin::description(), fastjet::ee_genkt_algorithm, fastjet::ee_kt_algorithm, extra_param(), fastjet::genkt_algorithm, jet_algorithm(), fastjet::kt_algorithm, plugin(), fastjet::plugin_algorithm, R(), and recombiner().

Referenced by main(), and run_jet_finder().

                                        {
  ostringstream name;
  if (jet_algorithm() == plugin_algorithm) {
    return plugin()->description();
  } else if (jet_algorithm() == kt_algorithm) {
    name << "Longitudinally invariant kt algorithm with R = " << R();
    name << " and " << recombiner()->description();
  } else if (jet_algorithm() == cambridge_algorithm) {
    name << "Longitudinally invariant Cambridge/Aachen algorithm with R = "
         << R() ;
    name << " and " << recombiner()->description();
  } else if (jet_algorithm() == antikt_algorithm) {
    name << "Longitudinally invariant anti-kt algorithm with R = "
         << R() ;
    name << " and " << recombiner()->description();
  } else if (jet_algorithm() == genkt_algorithm) {
    name << "Longitudinally invariant generalised kt algorithm with R = "
         << R() << ", p = " << extra_param();
    name << " and " << recombiner()->description();
  } else if (jet_algorithm() == cambridge_for_passive_algorithm) {
    name << "Longitudinally invariant Cambridge/Aachen algorithm with R = "
         << R() << "and a special hack whereby particles with kt < "
         << extra_param() << "are treated as passive ghosts";
  } else if (jet_algorithm() == ee_kt_algorithm) {
    name << "e+e- kt (Durham) algorithm (NB: no R)";
    name << " with " << recombiner()->description();
  } else if (jet_algorithm() == ee_genkt_algorithm) {
    name << "e+e- generalised kt algorithm with R = "
         << R() << ", p = " << extra_param();
    name << " and " << recombiner()->description();
  } else {
    throw Error("JetDefinition::description(): unrecognized jet_finder");
  }
  return name.str();
}

double fastjet::JetDefinition::extra_param ( ) const [inline]

Definition at line 298 of file JetDefinition.hh.

Referenced by description().

{return _extra_param ;}

JetAlgorithm fastjet::JetDefinition::jet_algorithm ( ) const [inline]

return information about the definition...

Definition at line 292 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options(), fastjet::ClusterSequence::_initialise_and_run(), fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), and description().

{return _jet_algorithm  ;}

JetAlgorithm fastjet::JetDefinition::jet_finder ( ) const [inline]

same as above for backward compatibility

Definition at line 294 of file JetDefinition.hh.

{return _jet_algorithm  ;}

const Plugin* fastjet::JetDefinition::plugin ( ) const [inline]

return a pointer to the plugin

Definition at line 289 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), description(), and main().

{return _plugin;};

double fastjet::JetDefinition::R ( ) const [inline]

Definition at line 295 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options(), fastjet::ClusterSequenceActiveArea::_initialise_AA(), description(), and fastjet::ClusterSequenceAreaBase::n_empty_jets().

{return _Rparam      ;}

RecombinationScheme fastjet::JetDefinition::recombination_scheme ( ) const [inline]

Definition at line 300 of file JetDefinition.hh.

                                                   {
    return _default_recombiner.scheme();}

const Recombiner* fastjet::JetDefinition::recombiner ( ) const [inline]

return a pointer to the currently defined recombiner (it may be the internal one)

Definition at line 312 of file JetDefinition.hh.

Referenced by description().

                                        {
    return _recombiner == 0 ? & _default_recombiner : _recombiner;}

void fastjet::JetDefinition::set_extra_param ( double xtra_param ) [inline]

(re)set the general purpose extra parameter

Definition at line 308 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), and JetDefinition().

{_extra_param = xtra_param;}

void fastjet::JetDefinition::set_jet_algorithm ( JetAlgorithm njf ) [inline]

(re)set the jet finder

Definition at line 304 of file JetDefinition.hh.

{_jet_algorithm = njf;}

void fastjet::JetDefinition::set_jet_finder ( JetAlgorithm njf ) [inline]

same as above for backward compatibility

Definition at line 306 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA().

{_jet_algorithm = njf;}

void fastjet::JetDefinition::set_recombination_scheme ( RecombinationScheme recomb_scheme )

set the recombination scheme to the one provided

Definition at line 127 of file JetDefinition.cc.

References _default_recombiner, and _recombiner.

Referenced by JetDefinition().

                                                                  {
  _default_recombiner = JetDefinition::DefaultRecombiner(recomb_scheme);
  _recombiner = 0;
}

void fastjet::JetDefinition::set_recombiner ( const Recombiner * recomb ) [inline]

set the recombiner class to the one provided

Definition at line 283 of file JetDefinition.hh.

References fastjet::external_scheme.

                                                 {
    _recombiner = recomb;
    _default_recombiner = DefaultRecombiner(external_scheme);
  }

Strategy fastjet::JetDefinition::strategy ( ) const [inline]

Definition at line 299 of file JetDefinition.hh.

Referenced by fastjet::ClusterSequence::_decant_options(), and main().

{return _strategy    ;}

Member Data Documentation

DefaultRecombiner fastjet::JetDefinition::_default_recombiner [private]

Definition at line 430 of file JetDefinition.hh.

Referenced by set_recombination_scheme().

double fastjet::JetDefinition::_extra_param [private]

parameter whose meaning varies according to context

Definition at line 423 of file JetDefinition.hh.

JetAlgorithm fastjet::JetDefinition::_jet_algorithm [private]

Definition at line 421 of file JetDefinition.hh.

const Plugin* fastjet::JetDefinition::_plugin [private]

Definition at line 426 of file JetDefinition.hh.

Referenced by JetDefinition().

const Recombiner* fastjet::JetDefinition::_recombiner [private]

Definition at line 431 of file JetDefinition.hh.

Referenced by set_recombination_scheme().

double fastjet::JetDefinition::_Rparam [private]

Definition at line 422 of file JetDefinition.hh.

Referenced by JetDefinition().

Strategy fastjet::JetDefinition::_strategy [private]

Definition at line 424 of file JetDefinition.hh.

Referenced by JetDefinition().

The documentation for this class was generated from the following files:

include/fastjet/JetDefinition.hh
src/JetDefinition.cc

Classes

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
