fastjet::RectangularGrid Class Reference

Class that holds a generic rectangular tiling. More...

#include <fastjet/RectangularGrid.hh>

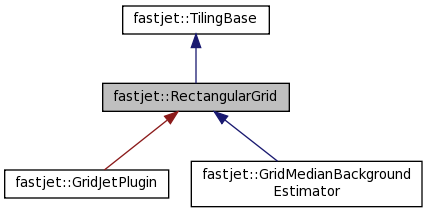

Inheritance diagram for fastjet::RectangularGrid:

Collaboration diagram for fastjet::RectangularGrid:

Public Member Functions
	RectangularGrid (double rapmax_in, double cell_size)
	ctor with simple initialisation More...
	RectangularGrid (double rapmin_in, double rapmax_in, double drap_in, double dphi_in, Selector tile_selector=Selector())
	ctor with more control over initialisation More...
	RectangularGrid ()
	dummy ctor (will give an unusable grid)
virtual int	n_tiles () const
	returns the total number of tiles in the tiling; valid tile indices run from 0 ... More...
virtual int	n_good_tiles () const
	returns the number of tiles that are "good"; i.e. More...
virtual int	tile_index (const PseudoJet &p) const
	returns the index of the tile in which p is located, or -1 if p is outside the tiling region
virtual bool	tile_is_good (int itile) const
	returns whether a given tile is good
virtual double	tile_area (int) const
	returns the area of tile itile.
virtual double	mean_tile_area () const
	returns the mean area of tiles.
virtual std::string	description () const
	returns a textual description of the grid
double	rapmin () const
	returns the minimum rapidity extent of the grid
double	rapmax () const
	returns the maxmium rapidity extent of the grid
double	drap () const
	returns the spacing of the grid in rapidity
double	dphi () const
	returns the spacing of the grid in azimuth
virtual bool	is_initialised () const
	returns true if the grid is in a suitably initialised state
Public Member Functions inherited from fastjet::TilingBase
virtual bool	all_tiles_good () const
	returns whether all tiles are good
virtual bool	all_tiles_equal_area () const
	returns true if all tiles have the same area
bool	is_initialized () const
virtual	~TilingBase ()
	virtual destructor

Detailed Description

Class that holds a generic rectangular tiling.

Definition at line 88 of file RectangularGrid.hh.

Constructor & Destructor Documentation

fastjet::RectangularGrid::RectangularGrid ( double  rapmax_in, double  cell_size  )

inline

ctor with simple initialisation

Parameters

rapmax	the maximal absolute rapidity extent of the grid
cell_size	the grid spacing (equivalently, cell size)

Definition at line 93 of file RectangularGrid.hh.

fastjet::RectangularGrid::RectangularGrid ( double  rapmin_in, double  rapmax_in, double  drap_in, double  dphi_in, Selector  tile_selector = Selector()  )

inline

ctor with more control over initialisation

Parameters

rapmin	the minimum rapidity extent of the grid
rapmax	the maximum rapidity extent of the grid
drap	the grid spacing in rapidity
dphi	the grid spacing in azimuth
tile_selector	optional (geometric) selector to specify which tiles are good; a tile is good if a massless 4-vector at the center of the tile passes the selection

Definition at line 108 of file RectangularGrid.hh.

Member Function Documentation

virtual int fastjet::RectangularGrid::n_tiles ( ) const

inlinevirtual

returns the total number of tiles in the tiling; valid tile indices run from 0 ...

n_tiles()-1;

Implements fastjet::TilingBase.

Definition at line 120 of file RectangularGrid.hh.

virtual int fastjet::RectangularGrid::n_good_tiles ( ) const

inlinevirtual

returns the number of tiles that are "good"; i.e.

there is scope for having tiles that, for whatever reason, should be ignored; there are situations in which having "non-good" tiles may be the simplest mechanism to obtain a tiling with holes in it

Reimplemented from fastjet::TilingBase.

Definition at line 122 of file RectangularGrid.hh.

---

The documentation for this class was generated from the following files:

• include/fastjet/RectangularGrid.hh
• src/RectangularGrid.cc
