Contains any information related to the clustering that should be directly accessible to PseudoJet. More...

#include <fastjet/PseudoJetStructureBase.hh>

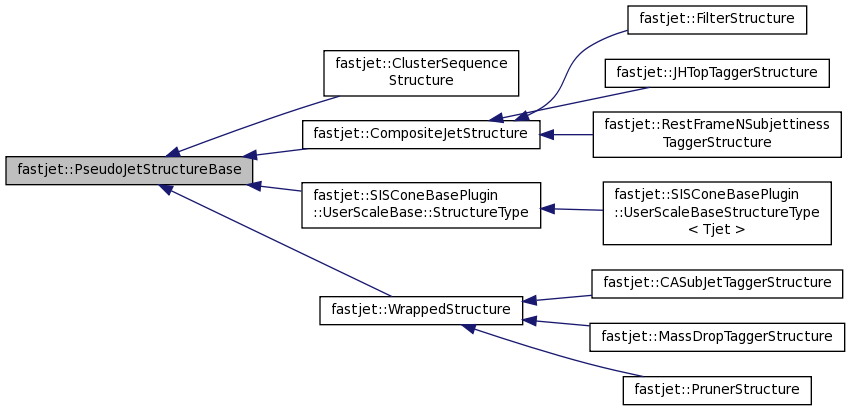

Inheritance diagram for fastjet::PseudoJetStructureBase:

Public Member Functions
	PseudoJetStructureBase ()
	default ctor

virtual	~PseudoJetStructureBase ()
	default (virtual) dtor

virtual std::string	description () const
	description

Direct access to the associated ClusterSequence object.
Get access to the associated ClusterSequence (if any)
virtual bool	has_associated_cluster_sequence () const
	returns true if there is an associated ClusterSequence

virtual const ClusterSequence *	associated_cluster_sequence () const
	get a (const) pointer to the parent ClusterSequence (NULL if inexistent)

virtual bool	has_valid_cluster_sequence () const
	returns true if this PseudoJet has an associated and still valid ClusterSequence. More...

virtual const ClusterSequence *	validated_cs () const
	if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error

virtual const ClusterSequenceAreaBase *	validated_csab () const
	if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error

Methods for access to information about jet structure
These allow access to jet constituents, and other jet subtructure information. They only work if the jet is associated with a ClusterSequence.
virtual bool	has_partner (const PseudoJet &reference, PseudoJet &partner) const
	check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More...

virtual bool	has_child (const PseudoJet &reference, PseudoJet &child) const
	check if it has been recombined with another PseudoJet in which case, return its child through the argument. More...

virtual bool	has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const
	check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More...

virtual bool	object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const
	check if the reference PseudoJet is contained the second one passed as argument. More...

virtual bool	has_constituents () const
	return true if the structure supports constituents. More...

virtual std::vector< PseudoJet >	constituents (const PseudoJet &reference) const
	retrieve the constituents. More...

virtual bool	has_exclusive_subjets () const
	return true if the structure supports exclusive_subjets.

virtual std::vector< PseudoJet >	exclusive_subjets (const PseudoJet &reference, const double &dcut) const
	return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...

virtual int	n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const
	return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...

virtual std::vector< PseudoJet >	exclusive_subjets_up_to (const PseudoJet &reference, int nsub) const
	return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub). More...

virtual double	exclusive_subdmerge (const PseudoJet &reference, int nsub) const
	return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More...

virtual double	exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const
	return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More...

virtual bool	has_pieces (const PseudoJet &) const
	return true if the structure supports pieces. More...

virtual std::vector< PseudoJet >	pieces (const PseudoJet &) const
	retrieve the pieces building the jet. More...

virtual bool	has_area () const
	check if it has a defined area More...

virtual double	area (const PseudoJet &reference) const
	return the jet (scalar) area. More...

virtual double	area_error (const PseudoJet &reference) const
	return the error (uncertainty) associated with the determination of the area of this jet. More...

virtual PseudoJet	area_4vector (const PseudoJet &reference) const
	return the jet 4-vector area. More...

virtual bool	is_pure_ghost (const PseudoJet &reference) const
	true if this jet is made exclusively of ghosts. More...

Detailed Description

Contains any information related to the clustering that should be directly accessible to PseudoJet.

By default, this class implements basic access to the ClusterSequence related to a PseudoJet (like its constituents or its area). But it can be overloaded in order e.g. to give access to the jet substructure.

Definition at line 59 of file PseudoJetStructureBase.hh.

Member Function Documentation

virtual bool fastjet::PseudoJetStructureBase::has_valid_cluster_sequence ( ) const

inlinevirtual

returns true if this PseudoJet has an associated and still valid ClusterSequence.

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 85 of file PseudoJetStructureBase.hh.

bool fastjet::PseudoJetStructureBase::has_partner	(	const PseudoJet &	reference,
		PseudoJet &	partner
	)		const

virtual

check if it has been recombined with another PseudoJet in which case, return its partner through the argument.

Otherwise, 'partner' is set to 0.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 104 of file PseudoJetStructureBase.cc.

bool fastjet::PseudoJetStructureBase::has_child	(	const PseudoJet &	reference,
		PseudoJet &	child
	)		const

virtual

check if it has been recombined with another PseudoJet in which case, return its child through the argument.

Otherwise, 'child' is set to 0.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 113 of file PseudoJetStructureBase.cc.

bool fastjet::PseudoJetStructureBase::has_parents	(	const PseudoJet &	reference,
		PseudoJet &	parent1,
		PseudoJet &	parent2
	)		const

virtual

check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments.

Otherwise, set these to 0.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 122 of file PseudoJetStructureBase.cc.

bool fastjet::PseudoJetStructureBase::object_in_jet	(	const PseudoJet &	reference,
		const PseudoJet &	jet
	)		const

virtual

check if the reference PseudoJet is contained the second one passed as argument.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 130 of file PseudoJetStructureBase.cc.

virtual bool fastjet::PseudoJetStructureBase::has_constituents ( ) const

inlinevirtual

return true if the structure supports constituents.

false by default

Reimplemented in fastjet::SISConeBasePlugin::UserScaleBase::StructureType, fastjet::ClusterSequenceStructure, fastjet::WrappedStructure, and fastjet::CompositeJetStructure.

Definition at line 139 of file PseudoJetStructureBase.hh.

vector< PseudoJet > fastjet::PseudoJetStructureBase::constituents ( const PseudoJet & reference ) const

virtual

retrieve the constituents.

By default, throws an Error

Reimplemented in fastjet::SISConeBasePlugin::UserScaleBase::StructureType, fastjet::ClusterSequenceStructure, fastjet::WrappedStructure, and fastjet::CompositeJetStructure.

Definition at line 137 of file PseudoJetStructureBase.cc.

vector< PseudoJet > fastjet::PseudoJetStructureBase::exclusive_subjets	(	const PseudoJet &	reference,
		const double &	dcut
	)		const

virtual

return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut.

Time taken is O(m ln m), where m is the number of subjets that are found. If m gets to be of order of the total number of constituents in the jet, this could be substantially slower than just getting that list of constituents.

By default, throws an Error

Note: in a future major release of FastJet (4 or higher), "const double & dcut" may be replaced with "const double dcut", requiring a modification of derived classes that overload this function.

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 151 of file PseudoJetStructureBase.cc.

int fastjet::PseudoJetStructureBase::n_exclusive_subjets	(	const PseudoJet &	reference,
		const double &	dcut
	)		const

virtual

return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size()

By default, throws an Error

Note: in a future major release of FastJet (4 or higher), "const double & dcut" may be replaced with "const double dcut", requiring a modification of derived classes that overload this function.

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 160 of file PseudoJetStructureBase.cc.

vector< PseudoJet > fastjet::PseudoJetStructureBase::exclusive_subjets_up_to	(	const PseudoJet &	reference,
		int	nsub
	)		const

virtual

return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub).

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 169 of file PseudoJetStructureBase.cc.

double fastjet::PseudoJetStructureBase::exclusive_subdmerge	(	const PseudoJet &	reference,
		int	nsub
	)		const

virtual

return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 177 of file PseudoJetStructureBase.cc.

double fastjet::PseudoJetStructureBase::exclusive_subdmerge_max	(	const PseudoJet &	reference,
		int	nsub
	)		const

virtual

return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet.

By default, throws an Error

Reimplemented in fastjet::ClusterSequenceStructure, and fastjet::WrappedStructure.

Definition at line 186 of file PseudoJetStructureBase.cc.

virtual bool fastjet::PseudoJetStructureBase::has_pieces ( const PseudoJet & ) const

inlinevirtual

return true if the structure supports pieces.

false by default NB: "reference" is commented to avoid unused-variable compiler warnings

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 207 of file PseudoJetStructureBase.hh.

std::vector< PseudoJet > fastjet::PseudoJetStructureBase::pieces ( const PseudoJet & ) const

virtual

retrieve the pieces building the jet.

By default, throws an Error. NB: "reference" is commented to avoid unused-variable compiler warnings

Reimplemented in fastjet::ClusterSequenceStructure, fastjet::WrappedStructure, and fastjet::CompositeJetStructure.

Definition at line 194 of file PseudoJetStructureBase.cc.

virtual bool fastjet::PseudoJetStructureBase::has_area ( ) const

inlinevirtual

check if it has a defined area

false by default

Reimplemented in fastjet::ClusterSequenceStructure, fastjet::WrappedStructure, and fastjet::CompositeJetStructure.

Definition at line 226 of file PseudoJetStructureBase.hh.

double fastjet::PseudoJetStructureBase::area ( const PseudoJet & reference ) const

virtual

return the jet (scalar) area.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 206 of file PseudoJetStructureBase.cc.

double fastjet::PseudoJetStructureBase::area_error ( const PseudoJet & reference ) const

virtual

return the error (uncertainty) associated with the determination of the area of this jet.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 214 of file PseudoJetStructureBase.cc.

PseudoJet fastjet::PseudoJetStructureBase::area_4vector ( const PseudoJet & reference ) const

virtual

return the jet 4-vector area.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 221 of file PseudoJetStructureBase.cc.

bool fastjet::PseudoJetStructureBase::is_pure_ghost ( const PseudoJet & reference ) const

virtual

true if this jet is made exclusively of ghosts.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 228 of file PseudoJetStructureBase.cc.

The documentation for this class was generated from the following files:

include/fastjet/PseudoJetStructureBase.hh
src/PseudoJetStructureBase.cc
