the structure returned by the JHTopTagger transformer. More...
#include <fastjet/tools/JHTopTagger.hh>

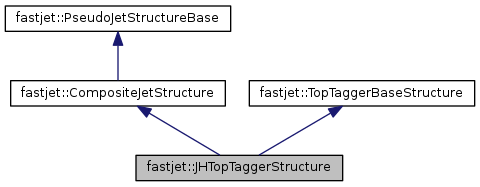

Inheritance diagram for fastjet::JHTopTaggerStructure:

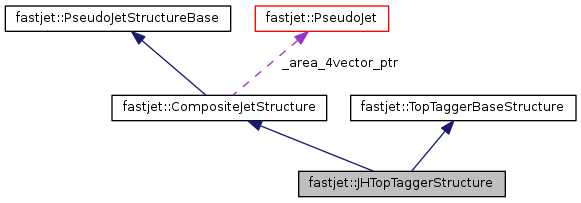

Collaboration diagram for fastjet::JHTopTaggerStructure:
Public Member Functions | |
| JHTopTaggerStructure (std::vector< PseudoJet > pieces_in, const JetDefinition::Recombiner *recombiner=0) | |
| ctor with pieces initialisation | |
| const PseudoJet & | W () const |
| returns the W subjet | |
| PseudoJet | W1 () const |
| returns the first W subjet (the harder) | |
| PseudoJet | W2 () const |
| returns the second W subjet | |
| const PseudoJet & | non_W () const |
| returns the non-W subjet It will have 1 or 2 pieces depending on whether the tagger has found 3 or 4 pieces | |
| double | cos_theta_W () const |
| returns the W helicity angle | |
 Public Member Functions inherited from fastjet::CompositeJetStructure | |
| CompositeJetStructure () | |
| default ctor | |
| CompositeJetStructure (const std::vector< PseudoJet > &initial_pieces, const JetDefinition::Recombiner *recombiner=0) | |
| ctor with initialisation | |
| virtual | ~CompositeJetStructure () |
| default dtor | |
| virtual std::string | description () const override |
| description | |
| virtual bool | has_constituents () const override |
| true unless the jet has no pieces (see also the description of constituents() below) | |
| virtual std::vector< PseudoJet > | constituents (const PseudoJet &jet) const override |
| return the constituents (i.e. More... | |
| virtual bool | has_pieces (const PseudoJet &) const override |
| true if it has pieces (always the case) | |
| virtual std::vector< PseudoJet > | pieces (const PseudoJet &jet) const override |
| returns the pieces | |
| virtual bool | has_area () const override |
| check if it has a well-defined area | |
| virtual double | area (const PseudoJet &reference) const override |
| return the jet (scalar) area. | |
| virtual double | area_error (const PseudoJet &reference) const override |
| return the error (uncertainty) associated with the determination of the area of this jet. More... | |
| virtual PseudoJet | area_4vector (const PseudoJet &reference) const override |
| return the jet 4-vector area. | |
| virtual bool | is_pure_ghost (const PseudoJet &reference) const override |
| true if this jet is made exclusively of ghosts. More... | |
| void | discard_area () |
| disable the area of the composite jet More... | |
| Public Member Functions inherited from fastjet::PseudoJetStructureBase | |
| PseudoJetStructureBase () | |
| default ctor | |
| virtual | ~PseudoJetStructureBase () |
| default (virtual) dtor | |
| virtual bool | has_associated_cluster_sequence () const |
| returns true if there is an associated ClusterSequence | |
| virtual const ClusterSequence * | associated_cluster_sequence () const |
| get a (const) pointer to the parent ClusterSequence (NULL if inexistent) | |
| virtual bool | has_valid_cluster_sequence () const |
| returns true if this PseudoJet has an associated and still valid ClusterSequence. More... | |
| virtual const ClusterSequence * | validated_cs () const |
| if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error | |
| virtual const ClusterSequenceAreaBase * | validated_csab () const |
| if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error | |
| virtual bool | has_partner (const PseudoJet &reference, PseudoJet &partner) const |
| check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More... | |
| virtual bool | has_child (const PseudoJet &reference, PseudoJet &child) const |
| check if it has been recombined with another PseudoJet in which case, return its child through the argument. More... | |
| virtual bool | has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const |
| check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More... | |
| virtual bool | object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const |
| check if the reference PseudoJet is contained the second one passed as argument. More... | |
| virtual bool | has_exclusive_subjets () const |
| return true if the structure supports exclusive_subjets. | |
| virtual std::vector< PseudoJet > | exclusive_subjets (const PseudoJet &reference, const double &dcut) const |
| return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More... | |
| virtual int | n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const |
| return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More... | |
| virtual std::vector< PseudoJet > | exclusive_subjets_up_to (const PseudoJet &reference, int nsub) const |
| return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub). More... | |
| virtual double | exclusive_subdmerge (const PseudoJet &reference, int nsub) const |
| return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More... | |
| virtual double | exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const |
| return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More... | |
Protected Attributes | |
| double | _cos_theta_w |
| the W helicity angle | |
| Protected Attributes inherited from fastjet::CompositeJetStructure | |
| std::vector< PseudoJet > | _pieces |
| the pieces building the jet | |
| PseudoJet * | _area_4vector_ptr |
| pointer to the 4-vector jet area | |
Friends | |
| class | JHTopTagger |
Detailed Description
the structure returned by the JHTopTagger transformer.
See the JHTopTagger class description for the details of what is inside this structure
Definition at line 169 of file JHTopTagger.hh.
The documentation for this class was generated from the following file:
- tools/fastjet/tools/JHTopTagger.hh
