a class that allows a user to introduce their own "plugin" jet finder More...
#include <fastjet/JetDefinition.hh>
Public Member Functions | |
| virtual std::string | description () const =0 |
| return a textual description of the jet-definition implemented in this plugin | |
| virtual void | run_clustering (ClusterSequence &) const =0 |
| given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence: More... | |
| virtual double | R () const =0 |
| virtual bool | supports_ghosted_passive_areas () const |
| return true if there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area. More... | |
| virtual void | set_ghost_separation_scale (double scale) const |
| set the ghost separation scale for passive area determinations in future runs (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable) | |
| virtual double | ghost_separation_scale () const |
| virtual bool | exclusive_sequence_meaningful () const |
| if this returns false then a warning will be given whenever the user requests "exclusive" jets from the cluster sequence | |
| virtual bool | is_spherical () const |
| returns true if the plugin implements an algorithm intended for use on a spherical geometry (e.g. More... | |
| virtual | ~Plugin () |
| a destructor to be replaced if necessary in derived classes... | |
Detailed Description
a class that allows a user to introduce their own "plugin" jet finder
Note that all the plugins provided with FastJet are derived from this class
Definition at line 560 of file JetDefinition.hh.
Member Function Documentation
◆ run_clustering()
|
pure virtual |
given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence:
- plugin_do_ij_recombination(...)
- plugin_do_iB_recombination(...)

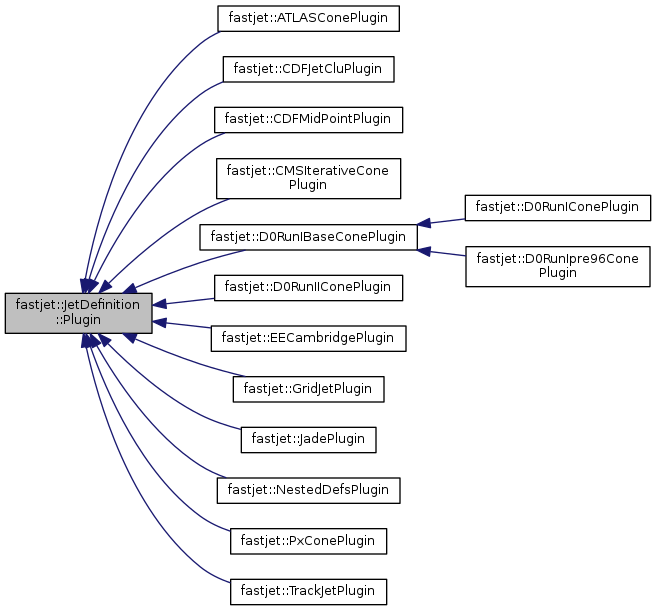

Implemented in fastjet::SISConePlugin, fastjet::CDFMidPointPlugin, fastjet::SISConeSphericalPlugin, fastjet::PxConePlugin, fastjet::D0RunIIConePlugin, fastjet::D0RunIBaseConePlugin, fastjet::GridJetPlugin, fastjet::JadePlugin, fastjet::D0RunIpre96ConePlugin, fastjet::D0RunIConePlugin, fastjet::CDFJetCluPlugin, fastjet::TrackJetPlugin, fastjet::ATLASConePlugin, fastjet::EECambridgePlugin, fastjet::CMSIterativeConePlugin, and fastjet::NestedDefsPlugin.
◆ supports_ghosted_passive_areas()
|
inlinevirtual |
return true if there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area.
[If you don't understand this, ignore it!]
Reimplemented in fastjet::SISConeSphericalPlugin.
Definition at line 580 of file JetDefinition.hh.
◆ is_spherical()
|
inlinevirtual |
returns true if the plugin implements an algorithm intended for use on a spherical geometry (e.g.
e+e- algorithms, as opposed to most pp algorithms, which use a cylindrical, rapidity-phi geometry).
Reimplemented in fastjet::SISConeSphericalPlugin, and fastjet::EECambridgePlugin.
Definition at line 597 of file JetDefinition.hh.
The documentation for this class was generated from the following files:
- include/fastjet/JetDefinition.hh
- src/JetDefinition.cc
