This wraps a (shared) pointer to an underlying structure. More...

#include <fastjet/WrappedStructure.hh>

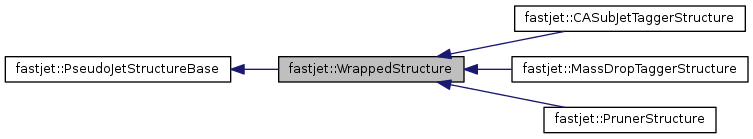

Inheritance diagram for fastjet::WrappedStructure:

[legend]

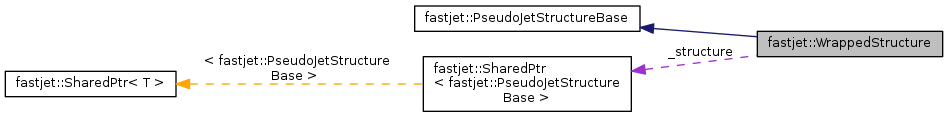

Collaboration diagram for fastjet::WrappedStructure:

Public Member Functions
	WrappedStructure (const SharedPtr< PseudoJetStructureBase > &to_be_shared)
	default ctor the argument is the structure we need to wrap

virtual	~WrappedStructure ()
	default (virtual) dtor

virtual std::string	description () const override
	description

Direct access to the associated ClusterSequence object.
Get access to the associated ClusterSequence (if any)
virtual bool	has_associated_cluster_sequence () const override
	returns true if there is an associated ClusterSequence

virtual const ClusterSequence *	associated_cluster_sequence () const override
	get a (const) pointer to the parent ClusterSequence (NULL if inexistent)

virtual bool	has_valid_cluster_sequence () const override
	returns true if this PseudoJet has an associated and still valid ClusterSequence. More...

virtual const ClusterSequence *	validated_cs () const override
	if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error

virtual const ClusterSequenceAreaBase *	validated_csab () const override
	if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error

Methods for access to information about jet structure
These allow access to jet constituents, and other jet subtructure information. They only work if the jet is associated with a ClusterSequence.
virtual bool	has_partner (const PseudoJet &reference, PseudoJet &partner) const override
	check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More...

virtual bool	has_child (const PseudoJet &reference, PseudoJet &child) const override
	check if it has been recombined with another PseudoJet in which case, return its child through the argument. More...

virtual bool	has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const override
	check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More...

virtual bool	object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const override
	check if the reference PseudoJet is contained the second one passed as argument. More...

virtual bool	has_constituents () const override
	return true if the structure supports constituents. More...

virtual std::vector< PseudoJet >	constituents (const PseudoJet &reference) const override
	retrieve the constituents. More...

virtual bool	has_exclusive_subjets () const override
	return true if the structure supports exclusive_subjets.

virtual std::vector< PseudoJet >	exclusive_subjets (const PseudoJet &reference, const double &dcut) const override
	return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...

virtual int	n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const override
	return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...

virtual std::vector< PseudoJet >	exclusive_subjets_up_to (const PseudoJet &reference, int nsub) const override
	return the list of subjets obtained by unclustering the supplied jet down to n subjets (or all constituents if there are fewer than n). More...

virtual double	exclusive_subdmerge (const PseudoJet &reference, int nsub) const override
	return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More...

virtual double	exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const override
	return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More...

virtual bool	has_pieces (const PseudoJet &reference) const override
	return true if the structure supports pieces. More...

virtual std::vector< PseudoJet >	pieces (const PseudoJet &reference) const override
	retrieve the pieces building the jet. More...

virtual bool	has_area () const override
	check if it has a defined area More...

virtual double	area (const PseudoJet &reference) const override
	return the jet (scalar) area. More...

virtual double	area_error (const PseudoJet &reference) const override
	return the error (uncertainty) associated with the determination of the area of this jet. More...

virtual PseudoJet	area_4vector (const PseudoJet &reference) const override
	return the jet 4-vector area. More...

virtual bool	is_pure_ghost (const PseudoJet &reference) const override
	true if this jet is made exclusively of ghosts. More...

Public Member Functions inherited from fastjet::PseudoJetStructureBase
	PseudoJetStructureBase ()
	default ctor

virtual	~PseudoJetStructureBase ()
	default (virtual) dtor

Protected Attributes
SharedPtr< PseudoJetStructureBase >	_structure
	the wrapped structure

Detailed Description

This wraps a (shared) pointer to an underlying structure.

The typical use-case is when a PseusoJet needs to share its structure with another PseudoJet but also include extra information in its structure. For the memory management to be handled properly, it should hold a shared pointer to the shared structure. This is what this class ensures. Deriving a structure from this class would then allow for the implementation of the extra features.

Definition at line 53 of file WrappedStructure.hh.

Member Function Documentation

◆ has_valid_cluster_sequence()

virtual bool fastjet::WrappedStructure::has_valid_cluster_sequence ( ) const

inlineoverridevirtual

returns true if this PseudoJet has an associated and still valid ClusterSequence.

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 90 of file WrappedStructure.hh.

◆ has_partner()

virtual bool fastjet::WrappedStructure::has_partner	(	const PseudoJet &	reference,
		PseudoJet &	partner
	)		const

inlineoverridevirtual

check if it has been recombined with another PseudoJet in which case, return its partner through the argument.

Otherwise, 'partner' is set to 0.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 122 of file WrappedStructure.hh.

◆ has_child()

virtual bool fastjet::WrappedStructure::has_child	(	const PseudoJet &	reference,
		PseudoJet &	child
	)		const

inlineoverridevirtual

check if it has been recombined with another PseudoJet in which case, return its child through the argument.

Otherwise, 'child' is set to 0.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 131 of file WrappedStructure.hh.

◆ has_parents()

virtual bool fastjet::WrappedStructure::has_parents	(	const PseudoJet &	reference,
		PseudoJet &	parent1,
		PseudoJet &	parent2
	)		const

inlineoverridevirtual

check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments.

Otherwise, set these to 0.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 140 of file WrappedStructure.hh.

◆ object_in_jet()

virtual bool fastjet::WrappedStructure::object_in_jet	(	const PseudoJet &	reference,
		const PseudoJet &	jet
	)		const

inlineoverridevirtual

check if the reference PseudoJet is contained the second one passed as argument.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 149 of file WrappedStructure.hh.

◆ has_constituents()

virtual bool fastjet::WrappedStructure::has_constituents ( ) const

inlineoverridevirtual

return true if the structure supports constituents.

false by default

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 158 of file WrappedStructure.hh.

◆ constituents()

virtual std::vector<PseudoJet> fastjet::WrappedStructure::constituents ( const PseudoJet & reference ) const

inlineoverridevirtual

retrieve the constituents.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 165 of file WrappedStructure.hh.

◆ exclusive_subjets()

virtual std::vector<PseudoJet> fastjet::WrappedStructure::exclusive_subjets	(	const PseudoJet &	reference,
		const double &	dcut
	)		const

inlineoverridevirtual

return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut.

Time taken is O(m ln m), where m is the number of subjets that are found. If m gets to be of order of the total number of constituents in the jet, this could be substantially slower than just getting that list of constituents.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 184 of file WrappedStructure.hh.

◆ n_exclusive_subjets()

virtual int fastjet::WrappedStructure::n_exclusive_subjets	(	const PseudoJet &	reference,
		const double &	dcut
	)		const

inlineoverridevirtual

return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size()

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 194 of file WrappedStructure.hh.

◆ exclusive_subjets_up_to()

virtual std::vector<PseudoJet> fastjet::WrappedStructure::exclusive_subjets_up_to	(	const PseudoJet &	reference,
		int	nsub
	)		const

inlineoverridevirtual

return the list of subjets obtained by unclustering the supplied jet down to n subjets (or all constituents if there are fewer than n).

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 204 of file WrappedStructure.hh.

◆ exclusive_subdmerge()

virtual double fastjet::WrappedStructure::exclusive_subdmerge	(	const PseudoJet &	reference,
		int	nsub
	)		const

inlineoverridevirtual

return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 213 of file WrappedStructure.hh.

◆ exclusive_subdmerge_max()

virtual double fastjet::WrappedStructure::exclusive_subdmerge_max	(	const PseudoJet &	reference,
		int	nsub
	)		const

inlineoverridevirtual

return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 222 of file WrappedStructure.hh.

◆ has_pieces()

virtual bool fastjet::WrappedStructure::has_pieces ( const PseudoJet & reference ) const

inlineoverridevirtual

return true if the structure supports pieces.

false by default

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 233 of file WrappedStructure.hh.

◆ pieces()

virtual std::vector<PseudoJet> fastjet::WrappedStructure::pieces ( const PseudoJet & reference ) const

inlineoverridevirtual

retrieve the pieces building the jet.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 240 of file WrappedStructure.hh.

◆ has_area()

virtual bool fastjet::WrappedStructure::has_area ( ) const

inlineoverridevirtual

check if it has a defined area

false by default

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 251 of file WrappedStructure.hh.

◆ area()

virtual double fastjet::WrappedStructure::area ( const PseudoJet & reference ) const

inlineoverridevirtual

return the jet (scalar) area.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 258 of file WrappedStructure.hh.

◆ area_error()

virtual double fastjet::WrappedStructure::area_error ( const PseudoJet & reference ) const

inlineoverridevirtual

return the error (uncertainty) associated with the determination of the area of this jet.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 266 of file WrappedStructure.hh.

◆ area_4vector()

virtual PseudoJet fastjet::WrappedStructure::area_4vector ( const PseudoJet & reference ) const

inlineoverridevirtual

return the jet 4-vector area.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 273 of file WrappedStructure.hh.

◆ is_pure_ghost()

virtual bool fastjet::WrappedStructure::is_pure_ghost ( const PseudoJet & reference ) const

inlineoverridevirtual

true if this jet is made exclusively of ghosts.

By default, throws an Error

Reimplemented from fastjet::PseudoJetStructureBase.

Definition at line 280 of file WrappedStructure.hh.

The documentation for this class was generated from the following file:

include/fastjet/WrappedStructure.hh
