fastjet::PseudoJetStructureBase Class Reference

Contains any information related to the clustering that should be directly accessible to PseudoJet. More...

#include <fastjet/PseudoJetStructureBase.hh>

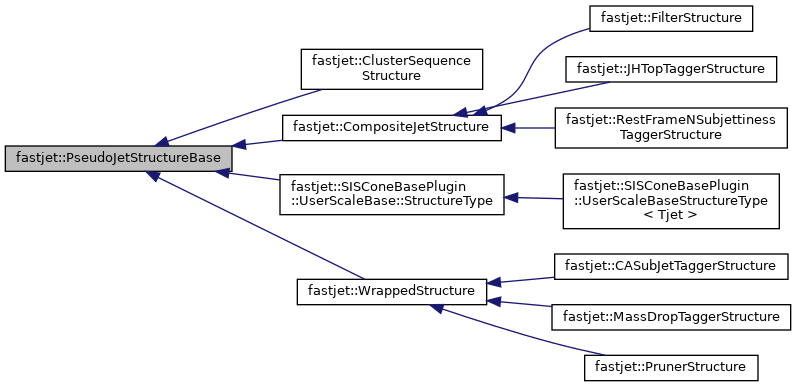

Inheritance diagram for fastjet::PseudoJetStructureBase:
Inheritance graph
[legend]

Public Member Functions

 PseudoJetStructureBase ()
 default ctor

virtual ~PseudoJetStructureBase ()
 default (virtual) dtor

virtual std::string description () const
 description

Direct access to the associated ClusterSequence object.

Get access to the associated ClusterSequence (if any)

virtual bool has_associated_cluster_sequence () const
 returns true if there is an associated ClusterSequence

virtual const ClusterSequenceassociated_cluster_sequence () const
 get a (const) pointer to the parent ClusterSequence (NULL if inexistent)

virtual bool has_valid_cluster_sequence () const
 returns true if this PseudoJet has an associated and still valid ClusterSequence.

virtual const ClusterSequencevalidated_cs () const
 if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error

virtual const ClusterSequenceAreaBasevalidated_csab () const
 if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error

Methods for access to information about jet structure

These allow access to jet constituents, and other jet subtructure information.

They only work if the jet is associated with a ClusterSequence.

virtual bool has_partner (const PseudoJet &reference, PseudoJet &partner) const
 check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More...

virtual bool has_child (const PseudoJet &reference, PseudoJet &child) const
 check if it has been recombined with another PseudoJet in which case, return its child through the argument. More...

virtual bool has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const
 check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More...

virtual bool object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const
 check if the reference PseudoJet is contained the second one passed as argument. More...

virtual bool has_constituents () const
 return true if the structure supports constituents. More...

virtual std::vector< PseudoJetconstituents (const PseudoJet &reference) const
 retrieve the constituents. More...

virtual bool has_exclusive_subjets () const
 return true if the structure supports exclusive_subjets.

virtual std::vector< PseudoJetexclusive_subjets (const PseudoJet &reference, const double &dcut) const
 return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...

virtual int n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const
 return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...

virtual std::vector< PseudoJetexclusive_subjets_up_to (const PseudoJet &reference, int nsub) const
 return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub). More...

virtual double exclusive_subdmerge (const PseudoJet &reference, int nsub) const
 return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More...

virtual double exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const
 return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More...

virtual bool has_pieces (const PseudoJet &) const
 return true if the structure supports pieces. More...

virtual std::vector< PseudoJetpieces (const PseudoJet &) const
 retrieve the pieces building the jet. More...

virtual bool has_area () const
 check if it has a defined area More...

virtual double area (const PseudoJet &reference) const
 return the jet (scalar) area. More...

virtual double area_error (const PseudoJet &reference) const
 return the error (uncertainty) associated with the determination of the area of this jet. More...

virtual PseudoJet area_4vector (const PseudoJet &reference) const
 return the jet 4-vector area. More...

virtual bool is_pure_ghost (const PseudoJet &reference) const
 true if this jet is made exclusively of ghosts. More...


Detailed Description

Contains any information related to the clustering that should be directly accessible to PseudoJet.

By default, this class implements basic access to the ClusterSequence related to a PseudoJet (like its constituents or its area). But it can be overloaded in order e.g. to give access to the jet substructure.

Definition at line 59 of file PseudoJetStructureBase.hh.

Member Function Documentation

◆ has_partner()

bool fastjet::PseudoJetStructureBase::has_partner ( const PseudoJet reference,
PseudoJet partner
) const
virtual

check if it has been recombined with another PseudoJet in which case, return its partner through the argument.

Otherwise, 'partner' is set to 0.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 104 of file PseudoJetStructureBase.cc.

◆ has_child()

bool fastjet::PseudoJetStructureBase::has_child ( const PseudoJet reference,
PseudoJet child
) const
virtual

check if it has been recombined with another PseudoJet in which case, return its child through the argument.

Otherwise, 'child' is set to 0.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 113 of file PseudoJetStructureBase.cc.

◆ has_parents()

bool fastjet::PseudoJetStructureBase::has_parents ( const PseudoJet reference,
PseudoJet parent1,
PseudoJet parent2
) const
virtual

check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments.

Otherwise, set these to 0.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 122 of file PseudoJetStructureBase.cc.

◆ object_in_jet()

bool fastjet::PseudoJetStructureBase::object_in_jet ( const PseudoJet reference,
const PseudoJet jet
) const
virtual

check if the reference PseudoJet is contained the second one passed as argument.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 130 of file PseudoJetStructureBase.cc.

◆ has_constituents()

virtual bool fastjet::PseudoJetStructureBase::has_constituents ( ) const
inlinevirtual

return true if the structure supports constituents.

false by default

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, fastjet::ClusterSequenceStructure, and fastjet::SISConeBasePlugin::UserScaleBase::StructureType.

Definition at line 139 of file PseudoJetStructureBase.hh.

◆ constituents()

vector< PseudoJet > fastjet::PseudoJetStructureBase::constituents ( const PseudoJet reference) const
virtual

◆ exclusive_subjets()

vector< PseudoJet > fastjet::PseudoJetStructureBase::exclusive_subjets ( const PseudoJet reference,
const double &  dcut
) const
virtual

return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut.

Time taken is O(m ln m), where m is the number of subjets that are found. If m gets to be of order of the total number of constituents in the jet, this could be substantially slower than just getting that list of constituents.

By default, throws an Error

Note: in a future major release of FastJet (4 or higher), "const double & dcut" may be replaced with "const double dcut", requiring a modification of derived classes that overload this function.

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 151 of file PseudoJetStructureBase.cc.

◆ n_exclusive_subjets()

int fastjet::PseudoJetStructureBase::n_exclusive_subjets ( const PseudoJet reference,
const double &  dcut
) const
virtual

return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size()

By default, throws an Error

Note: in a future major release of FastJet (4 or higher), "const double & dcut" may be replaced with "const double dcut", requiring a modification of derived classes that overload this function.

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 160 of file PseudoJetStructureBase.cc.

◆ exclusive_subjets_up_to()

vector< PseudoJet > fastjet::PseudoJetStructureBase::exclusive_subjets_up_to ( const PseudoJet reference,
int  nsub
) const
virtual

return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub).

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 169 of file PseudoJetStructureBase.cc.

◆ exclusive_subdmerge()

double fastjet::PseudoJetStructureBase::exclusive_subdmerge ( const PseudoJet reference,
int  nsub
) const
virtual

return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 177 of file PseudoJetStructureBase.cc.

◆ exclusive_subdmerge_max()

double fastjet::PseudoJetStructureBase::exclusive_subdmerge_max ( const PseudoJet reference,
int  nsub
) const
virtual

return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, and fastjet::ClusterSequenceStructure.

Definition at line 186 of file PseudoJetStructureBase.cc.

◆ has_pieces()

virtual bool fastjet::PseudoJetStructureBase::has_pieces ( const PseudoJet ) const
inlinevirtual

return true if the structure supports pieces.

false by default NB: "reference" is commented to avoid unused-variable compiler warnings

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 207 of file PseudoJetStructureBase.hh.

◆ pieces()

std::vector< PseudoJet > fastjet::PseudoJetStructureBase::pieces ( const PseudoJet ) const
virtual

retrieve the pieces building the jet.

By default, throws an Error. NB: "reference" is commented to avoid unused-variable compiler warnings

Reimplemented in fastjet::WrappedStructure, fastjet::ClusterSequenceStructure, and fastjet::CompositeJetStructure.

Definition at line 194 of file PseudoJetStructureBase.cc.

◆ has_area()

virtual bool fastjet::PseudoJetStructureBase::has_area ( ) const
inlinevirtual

check if it has a defined area

false by default

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, and fastjet::ClusterSequenceStructure.

Definition at line 226 of file PseudoJetStructureBase.hh.

◆ area()

double fastjet::PseudoJetStructureBase::area ( const PseudoJet reference) const
virtual

return the jet (scalar) area.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, and fastjet::ClusterSequenceStructure.

Definition at line 206 of file PseudoJetStructureBase.cc.

◆ area_error()

double fastjet::PseudoJetStructureBase::area_error ( const PseudoJet reference) const
virtual

return the error (uncertainty) associated with the determination of the area of this jet.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, and fastjet::ClusterSequenceStructure.

Definition at line 214 of file PseudoJetStructureBase.cc.

◆ area_4vector()

PseudoJet fastjet::PseudoJetStructureBase::area_4vector ( const PseudoJet reference) const
virtual

return the jet 4-vector area.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, and fastjet::ClusterSequenceStructure.

Definition at line 221 of file PseudoJetStructureBase.cc.

◆ is_pure_ghost()

bool fastjet::PseudoJetStructureBase::is_pure_ghost ( const PseudoJet reference) const
virtual

true if this jet is made exclusively of ghosts.

By default, throws an Error

Reimplemented in fastjet::WrappedStructure, fastjet::CompositeJetStructure, and fastjet::ClusterSequenceStructure.

Definition at line 228 of file PseudoJetStructureBase.cc.


The documentation for this class was generated from the following files:
