fastjet::PrunerStructure Class Reference

The structure associated with a PseudoJet thas has gone through a Pruner transformer. More...

#include <fastjet/tools/Pruner.hh>

Inheritance diagram for fastjet::PrunerStructure:
Inheritance graph
[legend]

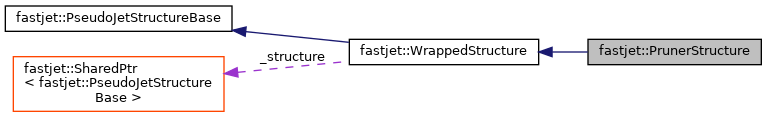

Collaboration diagram for fastjet::PrunerStructure:
Collaboration graph
[legend]

Public Member Functions

 PrunerStructure (const PseudoJet &result_jet)
 default ctor More...

virtual std::string description () const
 description More...

std::vector< PseudoJetrejected () const
 return the constituents that have been rejected More...

std::vector< PseudoJetextra_jets () const
 return the other jets that may have been found along with the result of the pruning The resulting vector is sorted in pt More...

double Rcut () const
 return the value of Rcut that was used for this specific pruning. More...

double zcut () const
 return the value of Rcut that was used for this specific pruning. More...

- Public Member Functions inherited from fastjet::WrappedStructure
 WrappedStructure (const SharedPtr< PseudoJetStructureBase > &to_be_shared)
 default ctor the argument is the structure we need to wrap More...

virtual ~WrappedStructure ()
 default (virtual) dtor More...

virtual std::string description () const override
 description More...

virtual bool has_associated_cluster_sequence () const override
 returns true if there is an associated ClusterSequence More...

virtual const ClusterSequenceassociated_cluster_sequence () const override
 get a (const) pointer to the parent ClusterSequence (NULL if inexistent) More...

virtual bool has_valid_cluster_sequence () const override
 returns true if this PseudoJet has an associated and still valid ClusterSequence. More...

virtual const ClusterSequencevalidated_cs () const override
 if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error More...

virtual const ClusterSequenceAreaBasevalidated_csab () const override
 if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error More...

virtual bool has_partner (const PseudoJet &reference, PseudoJet &partner) const override
 check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More...

virtual bool has_child (const PseudoJet &reference, PseudoJet &child) const override
 check if it has been recombined with another PseudoJet in which case, return its child through the argument. More...

virtual bool has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const override
 check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More...

virtual bool object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const override
 check if the reference PseudoJet is contained the second one passed as argument. More...

virtual bool has_constituents () const override
 return true if the structure supports constituents. More...

virtual std::vector< PseudoJetconstituents (const PseudoJet &reference) const override
 retrieve the constituents. More...

virtual bool has_exclusive_subjets () const override
 return true if the structure supports exclusive_subjets. More...

virtual std::vector< PseudoJetexclusive_subjets (const PseudoJet &reference, const double &dcut) const override
 return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...

virtual int n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const override
 return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...

virtual std::vector< PseudoJetexclusive_subjets_up_to (const PseudoJet &reference, int nsub) const override
 return the list of subjets obtained by unclustering the supplied jet down to n subjets (or all constituents if there are fewer than n). More...

virtual double exclusive_subdmerge (const PseudoJet &reference, int nsub) const override
 return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More...

virtual double exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const override
 return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More...

virtual bool has_pieces (const PseudoJet &reference) const override
 return true if the structure supports pieces. More...

virtual std::vector< PseudoJetpieces (const PseudoJet &reference) const override
 retrieve the pieces building the jet. More...

virtual bool has_area () const override
 check if it has a defined area More...

virtual double area (const PseudoJet &reference) const override
 return the jet (scalar) area. More...

virtual double area_error (const PseudoJet &reference) const override
 return the error (uncertainty) associated with the determination of the area of this jet. More...

virtual PseudoJet area_4vector (const PseudoJet &reference) const override
 return the jet 4-vector area. More...

virtual bool is_pure_ghost (const PseudoJet &reference) const override
 true if this jet is made exclusively of ghosts. More...

- Public Member Functions inherited from fastjet::PseudoJetStructureBase
 PseudoJetStructureBase ()
 default ctor More...

virtual ~PseudoJetStructureBase ()
 default (virtual) dtor More...

virtual std::string description () const
 description More...


Friends

class Pruner
 to allow setting the internal information More...


Additional Inherited Members

- Protected Attributes inherited from fastjet::WrappedStructure
SharedPtr< PseudoJetStructureBase_structure
 the wrapped structure More...


Detailed Description

The structure associated with a PseudoJet thas has gone through a Pruner transformer.

Definition at line 189 of file Pruner.hh.

Constructor & Destructor Documentation

◆ PrunerStructure()

fastjet::PrunerStructure::PrunerStructure ( const PseudoJet result_jet)
inline

default ctor

Parameters
result_jetthe jet for which we have to keep the structure

Definition at line 193 of file Pruner.hh.

Member Function Documentation

◆ description()

virtual std::string fastjet::PrunerStructure::description ( ) const
inlinevirtual

description

Reimplemented from fastjet::WrappedStructure.

Definition at line 197 of file Pruner.hh.

◆ rejected()

std::vector< PseudoJet > fastjet::PrunerStructure::rejected ( ) const
inline

return the constituents that have been rejected

Definition at line 200 of file Pruner.hh.

◆ extra_jets()

vector< PseudoJet > fastjet::PrunerStructure::extra_jets ( ) const

return the other jets that may have been found along with the result of the pruning The resulting vector is sorted in pt

Definition at line 211 of file Pruner.cc.

◆ Rcut()

double fastjet::PrunerStructure::Rcut ( ) const
inline

return the value of Rcut that was used for this specific pruning.

Definition at line 210 of file Pruner.hh.

◆ zcut()

double fastjet::PrunerStructure::zcut ( ) const
inline

return the value of Rcut that was used for this specific pruning.

Definition at line 213 of file Pruner.hh.

Friends And Related Function Documentation

◆ Pruner

friend class Pruner
friend

to allow setting the internal information

Definition at line 216 of file Pruner.hh.


The documentation for this class was generated from the following files:
