FastJet 3.4.1
Public Member Functions | List of all members
fastjet::RectangularGrid Class Reference

Class that holds a generic rectangular tiling. More...

#include <fastjet/RectangularGrid.hh>

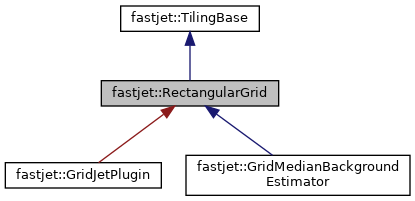

Inheritance diagram for fastjet::RectangularGrid:
Inheritance graph
[legend]
Collaboration diagram for fastjet::RectangularGrid:
Collaboration graph
[legend]

Public Member Functions

 RectangularGrid (double rapmax_in, double cell_size)
 ctor with simple initialisation More...

 RectangularGrid (double rapmin_in, double rapmax_in, double drap_in, double dphi_in, Selector tile_selector=Selector())
 ctor with more control over initialisation More...

 RectangularGrid ()
 dummy ctor (will give an unusable grid) More...

virtual int n_tiles () const override
 returns the total number of tiles in the tiling; valid tile indices run from 0 ... n_tiles()-1; More...

virtual int n_good_tiles () const override
 returns the number of tiles that are "good"; i.e. More...

virtual int tile_index (const PseudoJet &p) const override
 returns the index of the tile in which p is located, or -1 if p is outside the tiling region More...

virtual bool tile_is_good (int itile) const override
 returns whether a given tile is good More...

virtual double tile_area (int) const override
 returns the area of tile itile. More...

virtual double mean_tile_area () const override
 returns the mean area of tiles. More...

virtual std::string description () const override
 returns a textual description of the grid More...

double rapmin () const
 returns the minimum rapidity extent of the grid More...

double rapmax () const
 returns the maxmium rapidity extent of the grid More...

double drap () const
 returns the spacing of the grid in rapidity More...

double dphi () const
 returns the spacing of the grid in azimuth More...

virtual bool is_initialised () const override
 returns true if the grid is in a suitably initialised state More...

- Public Member Functions inherited from fastjet::TilingBase
virtual int tile_index (const PseudoJet &p) const =0
 returns the index of the tile in which p is located, or -1 if p is outside the tiling region More...

virtual int n_tiles () const =0
 returns the total number of tiles in the tiling; valid tile indices run from 0 ... n_tiles()-1; More...

virtual int n_good_tiles () const
 returns the number of tiles that are "good"; i.e. More...

virtual bool tile_is_good (int) const
 returns whether a given tile is good More...

virtual bool all_tiles_good () const
 returns whether all tiles are good More...

virtual bool all_tiles_equal_area () const
 returns true if all tiles have the same area More...

virtual double tile_area (int) const
 returns the area of tile itile. More...

virtual double mean_tile_area () const =0
 returns the mean area of the tiles. More...

virtual std::string description () const =0
 returns a string to describe the tiling More...

virtual bool is_initialised () const =0
 returns true if the Tiling structure is in a suitably initialised state More...

bool is_initialized () const

virtual ~TilingBase ()
 virtual destructor More...


Detailed Description

Class that holds a generic rectangular tiling.

Definition at line 88 of file RectangularGrid.hh.

Constructor & Destructor Documentation

◆ RectangularGrid() [1/3]

fastjet::RectangularGrid::RectangularGrid ( double  rapmax_in,
double  cell_size
)
inline

ctor with simple initialisation

Parameters
rapmaxthe maximal absolute rapidity extent of the grid
cell_sizethe grid spacing (equivalently, cell size)

Definition at line 93 of file RectangularGrid.hh.

◆ RectangularGrid() [2/3]

fastjet::RectangularGrid::RectangularGrid ( double  rapmin_in,
double  rapmax_in,
double  drap_in,
double  dphi_in,
Selector  tile_selector = Selector()
)
inline

ctor with more control over initialisation

Parameters
rapminthe minimum rapidity extent of the grid
rapmaxthe maximum rapidity extent of the grid
drapthe grid spacing in rapidity
dphithe grid spacing in azimuth
tile_selectoroptional (geometric) selector to specify which tiles are good; a tile is good if a massless 4-vector at the center of the tile passes the selection

Definition at line 108 of file RectangularGrid.hh.

◆ RectangularGrid() [3/3]

fastjet::RectangularGrid::RectangularGrid ( )

dummy ctor (will give an unusable grid)

Definition at line 40 of file RectangularGrid.cc.

Member Function Documentation

◆ n_tiles()

virtual int fastjet::RectangularGrid::n_tiles ( ) const
inlineoverridevirtual

returns the total number of tiles in the tiling; valid tile indices run from 0 ... n_tiles()-1;

Implements fastjet::TilingBase.

Definition at line 120 of file RectangularGrid.hh.

◆ n_good_tiles()

virtual int fastjet::RectangularGrid::n_good_tiles ( ) const
inlineoverridevirtual

returns the number of tiles that are "good"; i.e.

there is scope for having tiles that, for whatever reason, should be ignored; there are situations in which having "non-good" tiles may be the simplest mechanism to obtain a tiling with holes in it

Reimplemented from fastjet::TilingBase.

Definition at line 122 of file RectangularGrid.hh.

◆ tile_index()

int fastjet::RectangularGrid::tile_index ( const PseudoJet p) const
overridevirtual

returns the index of the tile in which p is located, or -1 if p is outside the tiling region

Implements fastjet::TilingBase.

Definition at line 55 of file RectangularGrid.cc.

◆ tile_is_good()

virtual bool fastjet::RectangularGrid::tile_is_good ( int  itile) const
inlineoverridevirtual

returns whether a given tile is good

Reimplemented from fastjet::TilingBase.

Definition at line 130 of file RectangularGrid.hh.

◆ tile_area()

virtual double fastjet::RectangularGrid::tile_area ( int  ) const
inlineoverridevirtual

returns the area of tile itile.

Reimplemented from fastjet::TilingBase.

Definition at line 135 of file RectangularGrid.hh.

◆ mean_tile_area()

virtual double fastjet::RectangularGrid::mean_tile_area ( ) const
inlineoverridevirtual

returns the mean area of tiles.

Implements fastjet::TilingBase.

Definition at line 140 of file RectangularGrid.hh.

◆ description()

string fastjet::RectangularGrid::description ( ) const
overridevirtual

returns a textual description of the grid

Implements fastjet::TilingBase.

Reimplemented in fastjet::GridJetPlugin, and fastjet::GridMedianBackgroundEstimator.

Definition at line 121 of file RectangularGrid.cc.

◆ rapmin()

double fastjet::RectangularGrid::rapmin ( ) const
inline

returns the minimum rapidity extent of the grid

Definition at line 146 of file RectangularGrid.hh.

◆ rapmax()

double fastjet::RectangularGrid::rapmax ( ) const
inline

returns the maxmium rapidity extent of the grid

Definition at line 148 of file RectangularGrid.hh.

◆ drap()

double fastjet::RectangularGrid::drap ( ) const
inline

returns the spacing of the grid in rapidity

Definition at line 150 of file RectangularGrid.hh.

◆ dphi()

double fastjet::RectangularGrid::dphi ( ) const
inline

returns the spacing of the grid in azimuth

Definition at line 152 of file RectangularGrid.hh.

◆ is_initialised()

virtual bool fastjet::RectangularGrid::is_initialised ( ) const
inlineoverridevirtual

returns true if the grid is in a suitably initialised state

Implements fastjet::TilingBase.

Definition at line 155 of file RectangularGrid.hh.


The documentation for this class was generated from the following files:
