FastJet 3.4.2

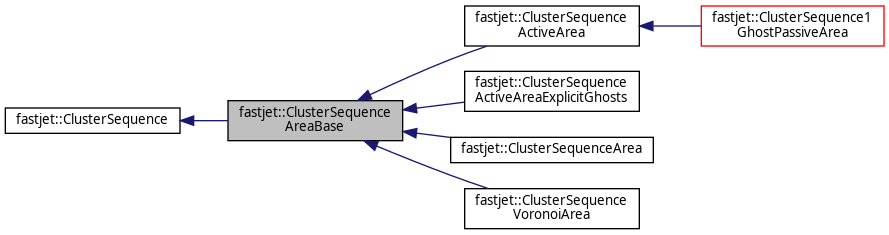

base class that sets interface for extensions of ClusterSequence that provide information about the area of each jet More...
#include <fastjet/ClusterSequenceAreaBase.hh>
Public Member Functions
template<class L >
ClusterSequenceAreaBase (const std::vector< L > &pseudojets, const JetDefinition &jet_def_in, const bool &writeout_combinations=false)
a constructor which just carries out the construction of the parent class More...
ClusterSequenceAreaBase ()
default constructor More...
virtual  ~ClusterSequenceAreaBase ()
destructor More...
virtual double  area (const PseudoJet &) const
return the area associated with the given jet; this base class returns 0. More...
virtual double  area_error (const PseudoJet &) const
return the error (uncertainty) associated with the determination of the area of this jet; this base class returns 0. More...
virtual PseudoJet  area_4vector (const PseudoJet &) const
return a PseudoJet whose 4vector is defined by the following integral More...
virtual bool  is_pure_ghost (const PseudoJet &) const
true if a jet is made exclusively of ghosts More...
virtual bool  has_explicit_ghosts () const
returns true if ghosts are explicitly included within jets for this ClusterSequence; More...
virtual double  empty_area (const Selector &selector) const
return the total area, corresponding to the given Selector, that is free of jets, in general based on the inclusive jets. More...
double  empty_area_from_jets (const std::vector< PseudoJet > &all_jets, const Selector &selector) const
return the total area, corresponding to the given Selector, that is free of jets, based on the supplied all_jets More...
virtual double  n_empty_jets (const Selector &selector) const
return something similar to the number of pure ghost jets in the given selector's range in an active area case. More...
double  median_pt_per_unit_area (const Selector &selector) const
the median of (pt/area) for jets contained within the selector range, making use also of the info on n_empty_jets More...
double  median_pt_per_unit_area_4vector (const Selector &selector) const
the median of (pt/area_4vector) for jets contained within the selector range, making use also of the info on n_empty_jets More...
double  median_pt_per_unit_something (const Selector &selector, bool use_area_4vector) const
the function that does the work for median_pt_per_unit_area and median_pt_per_unit_area_4vector: More...
virtual void  get_median_rho_and_sigma (const Selector &selector, bool use_area_4vector, double &median, double &sigma, double &mean_area) const
using jets withing the selector range (and with 4vector areas if use_area_4vector), calculate the median pt/area, as well as an "error" (uncertainty), which is defined as the 1sigma halfwidth of the distribution of pt/A, obtained by looking for the point below which we have (10.6827)/2 of the jets (including empty jets). More...
virtual void  get_median_rho_and_sigma (const std::vector< PseudoJet > &all_jets, const Selector &selector, bool use_area_4vector, double &median, double &sigma, double &mean_area, bool all_are_inclusive=false) const
a more advanced version of get_median_rho_and_sigma, which allows one to use any "view" of the event containing all jets (so that, e.g. More...
virtual void  get_median_rho_and_sigma (const Selector &selector, bool use_area_4vector, double &median, double &sigma) const
same as the full version of get_median_rho_and_error, but without access to the mean_area More...
virtual void  parabolic_pt_per_unit_area (double &a, double &b, const Selector &selector, double exclude_above=1.0, bool use_area_4vector=false) const
fits a form pt_per_unit_area(y) = a + b*y^2 in the selector range. More...
std::vector< PseudoJet >  subtracted_jets (const double rho, const double ptmin=0.0) const
return a vector of all subtracted jets, using area_4vector, given rho. More...
std::vector< PseudoJet >  subtracted_jets (const Selector &selector, const double ptmin=0.0) const
return a vector of subtracted jets, using area_4vector. More...
PseudoJet  subtracted_jet (const PseudoJet &jet, const double rho) const
return a subtracted jet, using area_4vector, given rho More...
PseudoJet  subtracted_jet (const PseudoJet &jet, const Selector &selector) const
return a subtracted jet, using area_4vector; note that this is potentially inefficient if repeatedly used for many different jets, because rho will be recalculated each time around. More...
double  subtracted_pt (const PseudoJet &jet, const double rho, bool use_area_4vector=false) const
return the subtracted pt, given rho More...
double  subtracted_pt (const PseudoJet &jet, const Selector &selector, bool use_area_4vector=false) const
return the subtracted pt; note that this is potentially inefficient if repeatedly used for many different jets, because rho will be recalculated each time around. More...
Public Member Functions inherited from fastjet::ClusterSequence
ClusterSequence ()
default constructor More...
template<class L >
ClusterSequence (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const bool &writeout_combinations=false)
create a ClusterSequence, starting from the supplied set of PseudoJets and clustering them with jet definition specified by jet_def (which also specifies the clustering strategy) More...
ClusterSequence (const ClusterSequence &cs)
copy constructor for a ClusterSequence More...
ClusterSequence &  operator= (const ClusterSequence &cs)
explicit assignment operator for a ClusterSequence More...
std::vector< PseudoJet >  inclusive_jets (const double ptmin=0.0) const
return a vector of all jets (in the sense of the inclusive algorithm) with pt >= ptmin. More...
int  n_exclusive_jets (const double dcut) const
return the number of jets (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...
std::vector< PseudoJet >  exclusive_jets (const double dcut) const
return a vector of all jets (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...
std::vector< PseudoJet >  exclusive_jets (const int njets) const
return a vector of all jets when the event is clustered (in the exclusive sense) to exactly njets. More...
std::vector< PseudoJet >  exclusive_jets_up_to (const int njets) const
return a vector of all jets when the event is clustered (in the exclusive sense) to exactly njets. More...
double  exclusive_dmerge (const int njets) const
return the dmin corresponding to the recombination that went from n+1 to n jets (sometimes known as d_{n n+1}). More...
double  exclusive_dmerge_max (const int njets) const
return the maximum of the dmin encountered during all recombinations up to the one that led to an njet final state; identical to exclusive_dmerge, except in cases where the dmin do not increase monotonically. More...
double  exclusive_ymerge (int njets) const
return the ymin corresponding to the recombination that went from n+1 to n jets (sometimes known as y_{n n+1}). More...
double  exclusive_ymerge_max (int njets) const
same as exclusive_dmerge_max, but normalised to squared total energy More...
int  n_exclusive_jets_ycut (double ycut) const
the number of exclusive jets at the given ycut More...
std::vector< PseudoJet >  exclusive_jets_ycut (double ycut) const
the exclusive jets obtained at the given ycut More...
std::vector< PseudoJet >  exclusive_subjets (const PseudoJet &jet, const double dcut) const
return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More...
int  n_exclusive_subjets (const PseudoJet &jet, const double dcut) const
return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More...
std::vector< PseudoJet >  exclusive_subjets (const PseudoJet &jet, int nsub) const
return the list of subjets obtained by unclustering the supplied jet down to nsub subjets. More...
std::vector< PseudoJet >  exclusive_subjets_up_to (const PseudoJet &jet, int nsub) const
return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub). More...
double  exclusive_subdmerge (const PseudoJet &jet, int nsub) const
returns the dij that was present in the merging nsub+1 > nsub subjets inside this jet. More...
double  exclusive_subdmerge_max (const PseudoJet &jet, int nsub) const
returns the maximum dij that occurred in the whole event at the stage that the nsub+1 > nsub merge of subjets occurred inside this jet. More...
double  Q () const
returns the sum of all energies in the event (relevant mainly for e+e) More...
double  Q2 () const
return Q()^2 More...
bool  object_in_jet (const PseudoJet &object, const PseudoJet &jet) const
returns true iff the object is included in the jet. More...
bool  has_parents (const PseudoJet &jet, PseudoJet &parent1, PseudoJet &parent2) const
if the jet has parents in the clustering, it returns true and sets parent1 and parent2 equal to them. More...
bool  has_child (const PseudoJet &jet, PseudoJet &child) const
if the jet has a child then return true and give the child jet otherwise return false and set the child to zero More...
bool  has_child (const PseudoJet &jet, const PseudoJet *&childp) const
Version of has_child that sets a pointer to the child if the child exists;. More...
bool  has_partner (const PseudoJet &jet, PseudoJet &partner) const
if this jet has a child (and so a partner) return true and give the partner, otherwise return false and set the partner to zero More...
std::vector< PseudoJet >  constituents (const PseudoJet &jet) const
return a vector of the particles that make up jet More...
void  print_jets_for_root (const std::vector< PseudoJet > &jets, std::ostream &ostr=std::cout) const
output the supplied vector of jets in a format that can be read by an appropriate root script; the format is: jetn jetpx jetpy jetpz jetE particlen particlerap particlephi particlept particlen particlerap particlephi particlept ... #END ... [i.e. More...
void  print_jets_for_root (const std::vector< PseudoJet > &jets, const std::string &filename, const std::string &comment="") const
print jets for root to the file labelled filename, with an optional comment at the beginning More...
void  add_constituents (const PseudoJet &jet, std::vector< PseudoJet > &subjet_vector) const
add on to subjet_vector the constituents of jet (for internal use mainly) More...
Strategy  strategy_used () const
return the enum value of the strategy used to cluster the event More...
std::string  strategy_string () const
return the name of the strategy used to cluster the event More...
std::string  strategy_string (Strategy strategy_in) const
return the name of the strategy associated with the enum strategy_in More...
const JetDefinition &  jet_def () const
return a reference to the jet definition More...
void  delete_self_when_unused ()
by calling this routine you tell the ClusterSequence to delete itself when all the Pseudojets associated with it have gone out of scope. More...
bool  will_delete_self_when_unused () const
return true if the object has been told to delete itself when unused More...
void  signal_imminent_self_deletion () const
tell the ClusterSequence it's about to be self deleted (internal use only) More...
double  jet_scale_for_algorithm (const PseudoJet &jet) const
returns the scale associated with a jet as required for this clustering algorithm (kt^2 for the ktalgorithm, 1 for the Cambridge algorithm). More...
void  plugin_record_ij_recombination (int jet_i, int jet_j, double dij, int &newjet_k)
record the fact that there has been a recombination between jets()[jet_i] and jets()[jet_k], with the specified dij, and return the index (newjet_k) allocated to the new jet, whose momentum is assumed to be the 4vector sum of that of jet_i and jet_j More...
void  plugin_record_ij_recombination (int jet_i, int jet_j, double dij, const PseudoJet &newjet, int &newjet_k)
as for the simpler variant of plugin_record_ij_recombination, except that the new jet is attributed the momentum and user_index of newjet More...
void  plugin_record_iB_recombination (int jet_i, double diB)
record the fact that there has been a recombination between jets()[jet_i] and the beam, with the specified diB; when looking for inclusive jets, any iB recombination will returned to the user as a jet. More...
PseudoJet &  plugin_non_const_jet (unsigned i)
return a nonconst reference to the jets()[i], to allow plugins to modify its contents. More...
void  plugin_associate_extras (Extras *extras_in)
the plugin can associate some extra information with the ClusterSequence object by calling this function. More...
bool  plugin_activated () const
the plugin can associate some extra information with the ClusterSequence object by calling this function More...
const Extras *  extras () const
returns a pointer to the extras object (may be null) More...
template<class GBJ >
void  plugin_simple_N2_cluster ()
allows a plugin to run a templated clustering (nearestneighbour heuristic) More...
const std::vector< PseudoJet > &  jets () const
allow the user to access the internally stored _jets() array, which contains both the initial particles and the various intermediate and final stages of recombination. More...
const std::vector< history_element > &  history () const
allow the user to access the raw internal history. More...
unsigned int  n_particles () const
returns the number of particles that were provided to the clustering algorithm (helps the user find their way around the history and jets objects if they weren't paying attention beforehand). More...
std::vector< int >  particle_jet_indices (const std::vector< PseudoJet > &) const
returns a vector of size n_particles() which indicates, for each of the initial particles (in the order in which they were supplied), which of the supplied jets it belongs to; if it does not belong to any of the supplied jets, the index is set to 1; More...
std::vector< int >  unique_history_order () const
routine that returns an order in which to read the history such that clusterings that lead to identical jet compositions but different histories (because of degeneracies in the clustering order) will have matching constituents for each matching entry in the unique_history_order. More...
std::vector< PseudoJet >  unclustered_particles () const
return the set of particles that have not been clustered. More...
std::vector< PseudoJet >  childless_pseudojets () const
Return the list of pseudojets in the ClusterSequence that do not have children (and are not among the inclusive jets). More...
bool  contains (const PseudoJet &object) const
returns true if the object (jet or particle) is contained by (ie belongs to) this cluster sequence. More...
void  transfer_from_sequence (const ClusterSequence &from_seq, const FunctionOfPseudoJet< PseudoJet > *action_on_jets=0)
transfer the sequence contained in other_seq into our own; any plugin "extras" contained in the from_seq will be lost from there. More...
const SharedPtr< PseudoJetStructureBase > &  structure_shared_ptr () const
retrieve a shared pointer to the wrapper to this ClusterSequence More...
template<>
void  _bj_set_jetinfo (EEBriefJet *const jetA, const int _jets_index) const
template<>
void  _bj_set_jetinfo (EEAccurateBriefJet *const jetA, const int _jets_index) const
template<>
double  _bj_dist (const EEBriefJet *const jeta, const EEBriefJet *const jetb) const
template<>
double  _bj_dist (const EEAccurateBriefJet *const jeta, const EEAccurateBriefJet *const jetb) const
Protected Member Functions
void  _check_selector_good_for_median (const Selector &selector) const
check the selector is suited for the computations i.e. applies jet by jet and has a finite area More...
virtual void  _get_median_rho_and_sigma (const Selector &selector, bool use_area_4vector, double &median, double &sigma, double &mean_area) const
virtual void  _get_median_rho_and_sigma (const std::vector< PseudoJet > &all_jets, const Selector &selector, bool use_area_4vector, double &median, double &sigma, double &mean_area, bool all_are_inclusive=false) const
virtual void  _get_median_rho_and_sigma (const Selector &selector, bool use_area_4vector, double &median, double &sigma) const
virtual void  _parabolic_pt_per_unit_area (double &a, double &b, const Selector &selector, double exclude_above=1.0, bool use_area_4vector=false) const
Protected Member Functions inherited from fastjet::ClusterSequence
template<class L >
void  _transfer_input_jets (const std::vector< L > &pseudojets)
transfer the vector<L> of input jets into our own vector<PseudoJet> _jets (with some reserved space for future growth). More...
void  _initialise_and_run (const JetDefinition &jet_def, const bool &writeout_combinations)
This is what is called to do all the initialisation and then run the clustering (may be called by various constructors). More...
void  _initialise_and_run_no_decant ()
void  _decant_options (const JetDefinition &jet_def, const bool &writeout_combinations)
fills in the various member variables with "decanted" options from the jet_definition and writeout_combinations variables More...
void  _decant_options_partial ()
assuming that the jet definition, writeout_combinations and _structure_shared_ptr have been set (e.g. More...
void  _fill_initial_history ()
fill out the history (and jet cross refs) related to the initial set of jets (assumed already to have been "transferred"), without any clustering More...
void  _do_ij_recombination_step (const int jet_i, const int jet_j, const double dij, int &newjet_k)
carry out the recombination between the jets numbered jet_i and jet_j, at distance scale dij; return the index newjet_k of the result of the recombination of i and j. More...
void  _do_iB_recombination_step (const int jet_i, const double diB)
carry out an recombination step in which _jets[jet_i] merges with the beam, More...
void  _set_structure_shared_ptr (PseudoJet &j)
every time a jet is added internally during clustering, this should be called to set the jet's structure shared ptr to point to the CS (and the count of internally associated objects is also updated). More...
void  _update_structure_use_count ()
make sure that the CS's internal tally of the use count matches that of the _structure_shared_ptr More...
Strategy  _best_strategy () const
returns a suggestion for the best strategy to use on event multiplicity, algorithm, R, etc. More...
void  get_subhist_set (std::set< const history_element * > &subhist, const PseudoJet &jet, double dcut, int maxjet) const
set subhist to be a set pointers to history entries corresponding to the subjets of this jet; one stops going working down through the subjets either when More...
Additional Inherited Members
Public Types inherited from fastjet::ClusterSequence
enum  JetType { Invalid =3 , InexistentParent = 2 , BeamJet = 1 }
typedef ClusterSequenceStructure  StructureType
the structure type associated with a jet belonging to a ClusterSequence More...
Static Public Member Functions inherited from fastjet::ClusterSequence
static void  print_banner ()
This is the function that is automatically called during clustering to print the FastJet banner. More...
static std::ostream *  fastjet_banner_stream ()
returns a pointer to the stream to be used to print banners (cout by default). More...
Protected Attributes inherited from fastjet::ClusterSequence
JetDefinition  _jet_def
std::vector< PseudoJet >  _jets
This contains the physical PseudoJets; for each PseudoJet one can find the corresponding position in the _history by looking at _jets[i].cluster_hist_index(). More...
std::vector< history_element >  _history
this vector will contain the branching history; for each stage, _history[i].jetp_index indicates where to look in the _jets vector to get the physical PseudoJet. More...
bool  _writeout_combinations
int  _initial_n
double  _Rparam
double  _R2
double  _invR2
double  _Qtot
Strategy  _strategy
JetAlgorithm  _jet_algorithm
SharedPtr< PseudoJetStructureBase >  _structure_shared_ptr
int  _structure_use_count_after_construction
bool  _deletes_self_when_unused
if true then the CS will delete itself when the last external object referring to it disappears. More...
base class that sets interface for extensions of ClusterSequence that provide information about the area of each jet
the virtual functions here all return 0, since no area determination is implemented.
Definition at line 48 of file ClusterSequenceAreaBase.hh.

inline
a constructor which just carries out the construction of the parent class
Definition at line 53 of file ClusterSequenceAreaBase.hh.

inline
default constructor
Definition at line 61 of file ClusterSequenceAreaBase.hh.

inlinevirtual
destructor
Definition at line 65 of file ClusterSequenceAreaBase.hh.

inlinevirtual
return the area associated with the given jet; this base class returns 0.
Reimplemented in fastjet::ClusterSequenceActiveArea, fastjet::ClusterSequenceActiveAreaExplicitGhosts, fastjet::ClusterSequenceArea, and fastjet::ClusterSequenceVoronoiArea.
Definition at line 70 of file ClusterSequenceAreaBase.hh.

inlinevirtual
return the error (uncertainty) associated with the determination of the area of this jet; this base class returns 0.
Reimplemented in fastjet::ClusterSequenceVoronoiArea, fastjet::ClusterSequenceActiveArea, and fastjet::ClusterSequenceArea.
Definition at line 74 of file ClusterSequenceAreaBase.hh.

inlinevirtual
return a PseudoJet whose 4vector is defined by the following integral
\int drap d\phi PseudoJet("rap,phi,pt=one") * * Theta("rap,phi inside jet boundary")
where PseudoJet("rap,phi,pt=one") is a 4vector with the given rapidity (rap), azimuth (phi) and pt=1, while Theta("rap,phi inside jet boundary") is a function that is 1 when rap,phi define a direction inside the jet boundary and 0 otherwise.
This base class returns a null 4vector.
Reimplemented in fastjet::ClusterSequenceActiveArea, fastjet::ClusterSequenceActiveAreaExplicitGhosts, fastjet::ClusterSequenceArea, and fastjet::ClusterSequenceVoronoiArea.
Definition at line 87 of file ClusterSequenceAreaBase.hh.

inlinevirtual
true if a jet is made exclusively of ghosts
NB: most area classes do not give any explicit ghost jets, but some do, and they should replace this function with their own version.
Reimplemented in fastjet::ClusterSequenceActiveAreaExplicitGhosts, and fastjet::ClusterSequenceArea.
Definition at line 95 of file ClusterSequenceAreaBase.hh.

inlinevirtual
returns true if ghosts are explicitly included within jets for this ClusterSequence;
Derived classes that do include explicit ghosts should provide an alternative version of this routine and set it properly.
Reimplemented in fastjet::ClusterSequenceActiveAreaExplicitGhosts, and fastjet::ClusterSequenceArea.
Definition at line 104 of file ClusterSequenceAreaBase.hh.

virtual
return the total area, corresponding to the given Selector, that is free of jets, in general based on the inclusive jets.
return the total area, within the selector's range, that is free of jets.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Calculate this as (range area)  \sum_{i in range} A_i
for ClusterSequences with explicit ghosts, assume that there will never be any empty area, i.e. it is always filled in by pure ghosts jets. This holds for seq.rec. algorithms
Reimplemented in fastjet::ClusterSequenceActiveArea, fastjet::ClusterSequenceActiveAreaExplicitGhosts, fastjet::ClusterSequenceArea, and fastjet::ClusterSequencePassiveArea.
Definition at line 57 of file ClusterSequenceAreaBase.cc.
double fastjet::ClusterSequenceAreaBase::empty_area_from_jets  (  const std::vector< PseudoJet > &  all_jets,
const Selector &  selector
)  const
return the total area, corresponding to the given Selector, that is free of jets, based on the supplied all_jets
return the total area, within range, that is free of jets.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Calculate this as (range area)  \sum_{i in range} A_i
Definition at line 69 of file ClusterSequenceAreaBase.cc.

inlinevirtual
return something similar to the number of pure ghost jets in the given selector's range in an active area case.
For the local implementation we return empty_area/(0.55 pi R^2), based on measured properties of ghost jets with kt and cam (cf arXiv:0802.1188).
Note that the number returned is a double.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Reimplemented in fastjet::ClusterSequence1GhostPassiveArea, fastjet::ClusterSequenceActiveArea, and fastjet::ClusterSequenceArea.
Definition at line 136 of file ClusterSequenceAreaBase.hh.
double fastjet::ClusterSequenceAreaBase::median_pt_per_unit_area  (  const Selector &  selector  )  const
the median of (pt/area) for jets contained within the selector range, making use also of the info on n_empty_jets
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Definition at line 86 of file ClusterSequenceAreaBase.cc.
double fastjet::ClusterSequenceAreaBase::median_pt_per_unit_area_4vector  (  const Selector &  selector  )  const
the median of (pt/area_4vector) for jets contained within the selector range, making use also of the info on n_empty_jets
The selector passed as an argument has to have a finite area and apply jetbyjet
Definition at line 102 of file ClusterSequenceAreaBase.cc.
double fastjet::ClusterSequenceAreaBase::median_pt_per_unit_something  (  const Selector &  selector,
bool  use_area_4vector
)  const
the function that does the work for median_pt_per_unit_area and median_pt_per_unit_area_4vector:
Definition at line 118 of file ClusterSequenceAreaBase.cc.

virtual
using jets withing the selector range (and with 4vector areas if use_area_4vector), calculate the median pt/area, as well as an "error" (uncertainty), which is defined as the 1sigma halfwidth of the distribution of pt/A, obtained by looking for the point below which we have (10.6827)/2 of the jets (including empty jets).
The subtraction for a jet with uncorrected pt pt^U and area A is
pt^S = pt^U  median*A + sigma*sqrt(A)
where the error is only that associated with the fluctuations in the noise and not that associated with the noise having caused changes in the hardparticle content of the jet.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
NB: subtraction may also be done with 4vector area of course, and this is recommended for jets with larger values of R, as long as rho has also been determined with a 4vector area; using a scalar area causes one to neglect terms of relative order $R^2/8$ in the jet $p_t$.
Reimplemented in fastjet::ClusterSequenceArea.
Definition at line 200 of file ClusterSequenceAreaBase.cc.

virtual
a more advanced version of get_median_rho_and_sigma, which allows one to use any "view" of the event containing all jets (so that, e.g.
one might use Cam on a different resolution scale without have to rerun the algorithm).
By default it will assume that "all" are not inclusive jets, so that in dealing with empty area it has to calculate the number of empty jets based on the empty area and the the observed <area> of jets rather than a surmised area
Note that for small effective radii, this can cause problems because the harder jets get an area >> <ghostjetarea> and so the estimate comes out all wrong. In these situations it is highly advisable to use an area with explicit ghosts, since then the "empty" jets are actually visible.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Reimplemented in fastjet::ClusterSequenceArea.

inlinevirtual
same as the full version of get_median_rho_and_error, but without access to the mean_area
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Reimplemented in fastjet::ClusterSequenceArea.
Definition at line 230 of file ClusterSequenceAreaBase.hh.

virtual
fits a form pt_per_unit_area(y) = a + b*y^2 in the selector range.
fits a form pt_per_unit_area(y) = a + b*y^2 for jets in range.
exclude_above allows one to exclude large values of pt/area from fit. (if negative, the cut is discarded) use_area_4vector = true uses the 4vector areas.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
exclude_above allows one to exclude large values of pt/area from fit. use_area_4vector = true uses the 4vector areas.
Reimplemented in fastjet::ClusterSequenceArea.
Definition at line 138 of file ClusterSequenceAreaBase.cc.
vector< PseudoJet > fastjet::ClusterSequenceAreaBase::subtracted_jets  (  const double  rho,
const double  ptmin = 0.0

)  const
return a vector of all subtracted jets, using area_4vector, given rho.
Only inclusive_jets above ptmin are subtracted and returned. the ordering is the same as that of sorted_by_pt(cs.inclusive_jets()), i.e. not necessarily ordered in pt once subtracted
Definition at line 345 of file ClusterSequenceAreaBase.cc.
vector< PseudoJet > fastjet::ClusterSequenceAreaBase::subtracted_jets  (  const Selector &  selector,
const double  ptmin = 0.0

)  const
return a vector of subtracted jets, using area_4vector.
Only inclusive_jets above ptmin are subtracted and returned. the ordering is the same as that of sorted_by_pt(cs.inclusive_jets()), i.e. not necessarily ordered in pt once subtracted
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Definition at line 367 of file ClusterSequenceAreaBase.cc.
PseudoJet fastjet::ClusterSequenceAreaBase::subtracted_jet  (  const PseudoJet &  jet,
const double  rho
)  const
return a subtracted jet, using area_4vector, given rho
Definition at line 377 of file ClusterSequenceAreaBase.cc.
PseudoJet fastjet::ClusterSequenceAreaBase::subtracted_jet  (  const PseudoJet &  jet,
const Selector &  selector
)  const
return a subtracted jet, using area_4vector; note that this is potentially inefficient if repeatedly used for many different jets, because rho will be recalculated each time around.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Definition at line 405 of file ClusterSequenceAreaBase.cc.
double fastjet::ClusterSequenceAreaBase::subtracted_pt  (  const PseudoJet &  jet,
const double  rho,
bool  use_area_4vector = false

)  const
return the subtracted pt, given rho
Definition at line 419 of file ClusterSequenceAreaBase.cc.
double fastjet::ClusterSequenceAreaBase::subtracted_pt  (  const PseudoJet &  jet,
const Selector &  selector,
bool  use_area_4vector = false

)  const
return the subtracted pt; note that this is potentially inefficient if repeatedly used for many different jets, because rho will be recalculated each time around.
The selector passed as an argument has to have a finite area and apply jetbyjet (see the BackgroundEstimator and Subtractor tools for more generic usages)
Definition at line 440 of file ClusterSequenceAreaBase.cc.

protected
check the selector is suited for the computations i.e. applies jet by jet and has a finite area
Definition at line 454 of file ClusterSequenceAreaBase.cc.

protectedvirtual
Definition at line 206 of file ClusterSequenceAreaBase.cc.

inlineprotectedvirtual
Definition at line 326 of file ClusterSequenceAreaBase.hh.

protectedvirtual
Definition at line 144 of file ClusterSequenceAreaBase.cc.
