#include "fastjet/PseudoJet.hh"
#include "fastjet/ClusterSequence.hh"
#include <iostream>
#include <sstream>
#include <vector>

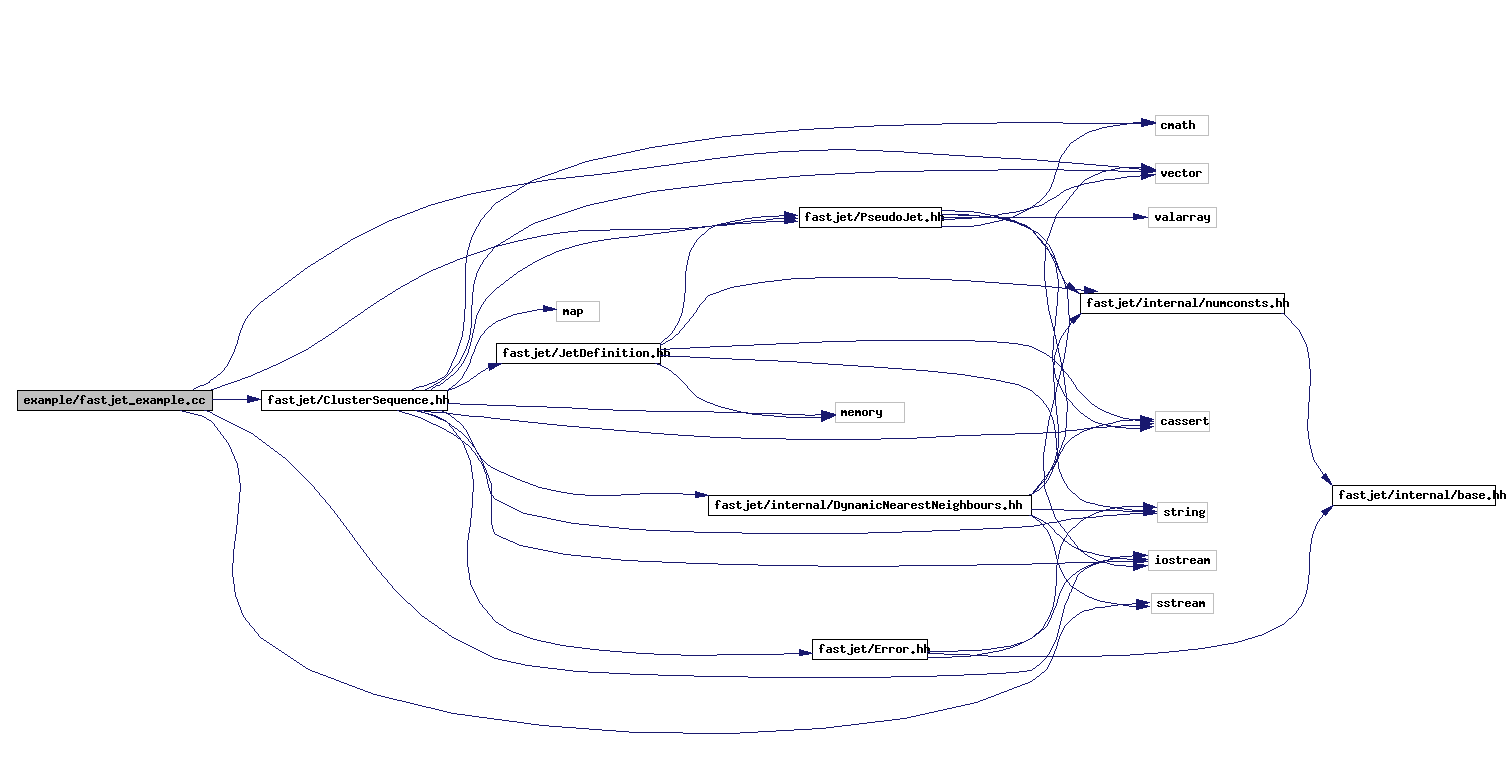

Include dependency graph for fastjet_example.cc:
Go to the source code of this file.
Functions | |
void | print_jets (const fastjet::ClusterSequence &clust_seq, const vector< fastjet::PseudoJet > &jets) |
a function that pretty prints a list of jets | |
int | main (int argc, char **argv) |
an example program showing how to use fastjet |
int main | ( | int | argc, | |
char ** | argv | |||
) |
an example program showing how to use fastjet
Definition at line 55 of file fastjet_example.cc.
References fastjet::Best, fastjet::JetDefinition::description(), fastjet::E_scheme, fastjet::ClusterSequence::exclusive_jets(), fastjet::ClusterSequence::inclusive_jets(), fastjet::kt_algorithm, print_jets(), and fastjet::ClusterSequence::strategy_string().
00055 { 00056 00057 vector<fastjet::PseudoJet> input_particles; 00058 00059 // read in input particles 00060 double px, py , pz, E; 00061 while (cin >> px >> py >> pz >> E) { 00062 // create a fastjet::PseudoJet with these components and put it onto 00063 // back of the input_particles vector 00064 input_particles.push_back(fastjet::PseudoJet(px,py,pz,E)); 00065 } 00066 00067 // create an object that represents your choice of jet algorithm and 00068 // the associated parameters 00069 double Rparam = 1.0; 00070 fastjet::Strategy strategy = fastjet::Best; 00071 fastjet::RecombinationScheme recomb_scheme = fastjet::E_scheme; 00072 fastjet::JetDefinition jet_def(fastjet::kt_algorithm, Rparam, recomb_scheme, strategy); 00073 00074 // run the jet clustering with the above jet definition 00075 fastjet::ClusterSequence clust_seq(input_particles, jet_def); 00076 00077 // tell the user what was done 00078 cout << "Ran " << jet_def.description() << endl; 00079 cout << "Strategy adopted by FastJet was "<< 00080 clust_seq.strategy_string()<<endl<<endl; 00081 00082 // extract the inclusive jets with pt > 5 GeV 00083 double ptmin = 5.0; 00084 vector<fastjet::PseudoJet> inclusive_jets = clust_seq.inclusive_jets(ptmin); 00085 00086 // print them out 00087 cout << "Printing inclusive jets with pt > "<< ptmin<<" GeV\n"; 00088 cout << "---------------------------------------\n"; 00089 print_jets(clust_seq, inclusive_jets); 00090 cout << endl; 00091 00092 // extract the exclusive jets with dcut = 25 GeV^2 00093 double dcut = 25.0; 00094 vector<fastjet::PseudoJet> exclusive_jets = clust_seq.exclusive_jets(dcut); 00095 00096 // print them out 00097 cout << "Printing exclusive jets with dcut = "<< dcut<<" GeV^2\n"; 00098 cout << "--------------------------------------------\n"; 00099 print_jets(clust_seq, exclusive_jets); 00100 00101 00102 }
void print_jets | ( | const fastjet::ClusterSequence & | , | |
const vector< fastjet::PseudoJet > & | ||||
) |
a function that pretty prints a list of jets
Definition at line 107 of file fastjet_example.cc.
References fastjet::ClusterSequence::constituents(), and fastjet::sorted_by_pt().
00108 { 00109 00110 // sort jets into increasing pt 00111 vector<fastjet::PseudoJet> sorted_jets = sorted_by_pt(jets); 00112 00113 // label the columns 00114 printf("%5s %15s %15s %15s %15s\n","jet #", "rapidity", 00115 "phi", "pt", "n constituents"); 00116 00117 // print out the details for each jet 00118 for (unsigned int i = 0; i < sorted_jets.size(); i++) { 00119 int n_constituents = clust_seq.constituents(sorted_jets[i]).size(); 00120 printf("%5u %15.8f %15.8f %15.8f %8u\n", 00121 i, sorted_jets[i].rap(), sorted_jets[i].phi(), 00122 sorted_jets[i].perp(), n_constituents); 00123 } 00124 00125 }
