General class for user to obtain ClusterSequence with additional area information. More...

#include <ClusterSequenceArea.hh>

Inheritance diagram for fastjet::ClusterSequenceArea:

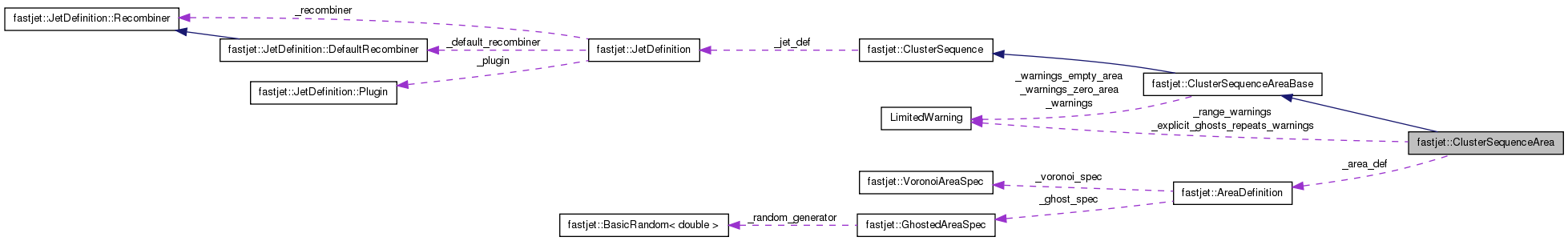

Collaboration diagram for fastjet::ClusterSequenceArea:

Public Member Functions
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const AreaDefinition &area_def_in)
	main constructor
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &ghost_spec)
	constructor with a GhostedAreaSpec
template<class L >
	ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const VoronoiAreaSpec &voronoi_spec)
	constructor with a VoronoiAreaSpec
const AreaDefinition &	area_def () const
	return a reference to the area definition
virtual double	area (const PseudoJet &jet) const
	return the area associated with the given jet
virtual double	area_error (const PseudoJet &jet) const
	return the error (uncertainty) associated with the determination of the area of this jet
virtual PseudoJet	area_4vector (const PseudoJet &jet) const
	return the 4-vector area
virtual double	empty_area (const RangeDefinition &range) const
	return the total area, in the given rap-phi range, that is free of jets
virtual double	n_empty_jets (const RangeDefinition &range) const
	return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.
virtual bool	is_pure_ghost (const PseudoJet &jet) const
	true if a jet is made exclusively of ghosts
virtual bool	has_explicit_ghosts () const
	true if this ClusterSequence has explicit ghosts
virtual void	get_median_rho_and_sigma (const std::vector< PseudoJet > &all_jets, const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma, double &mean_area, bool all_are_incl=false) const
	overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.
virtual void	get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma) const
	overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.
virtual void	get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma, double &mean_area) const
	overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the multi-argument version above, we have to override the 5-argument version too.
virtual void	parabolic_pt_per_unit_area (double &a, double &b, const RangeDefinition &range, double exclude_above=-1.0, bool use_area_4vector=false) const
	overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.
Private Member Functions
void	_warn_if_range_unsuitable (const RangeDefinition &range) const
	print a warning if the range is unsuitable for the current calculation of the area (e.g.
template<class L >
void	initialize_and_run_cswa (const std::vector< L > &pseudojets, const JetDefinition &jet_def)
Private Attributes
std::auto_ptr < ClusterSequenceAreaBase >	_area_base
AreaDefinition	_area_def
Static Private Attributes
static LimitedWarning	_range_warnings
static LimitedWarning	_explicit_ghosts_repeats_warnings

Detailed Description

General class for user to obtain ClusterSequence with additional area information.

Based on the area_def, it automatically dispatches the work to the appropriate actual ClusterSequenceAreaBase-derived-class to do the real work.

Definition at line 49 of file ClusterSequenceArea.hh.

Constructor & Destructor Documentation

template<class L >

fastjet::ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const AreaDefinition &	area_def_in
	)		`[inline]`

main constructor

Definition at line 53 of file ClusterSequenceArea.hh.

                                               : _area_def(area_def_in) {
    initialize_and_run_cswa(pseudojets, jet_def);
  }

template<class L >

fastjet::ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const GhostedAreaSpec &	ghost_spec
	)		`[inline]`

constructor with a GhostedAreaSpec

Definition at line 61 of file ClusterSequenceArea.hh.

                                                : _area_def(ghost_spec){
    initialize_and_run_cswa(pseudojets, jet_def);
  }

template<class L >

fastjet::ClusterSequenceArea::ClusterSequenceArea	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def,
		const VoronoiAreaSpec &	voronoi_spec
	)		`[inline]`

constructor with a VoronoiAreaSpec

Definition at line 69 of file ClusterSequenceArea.hh.

                                                  : _area_def(voronoi_spec){
    initialize_and_run_cswa(pseudojets, jet_def);
  }

Member Function Documentation

void fastjet::ClusterSequenceArea::_warn_if_range_unsuitable ( const RangeDefinition & range ) const [private]

print a warning if the range is unsuitable for the current calculation of the area (e.g.

because ghosts do not extend far enough).

Definition at line 11 of file ClusterSequenceArea.cc.

References fastjet::RangeDefinition::get_rap_limits(), fastjet::kt_algorithm, fastjet::passive_area, and fastjet::voronoi_area.

                                                                                       {
  bool no_ghosts = (_area_def.area_type() == voronoi_area)
    || (_area_def.area_type() == passive_area
        && jet_def().jet_algorithm() == kt_algorithm);
  if (! no_ghosts) {
    double rapmin, rapmax;
    range.get_rap_limits(rapmin, rapmax);
    if (rapmin < -_area_def.ghost_spec().ghost_maxrap()+0.95*jet_def().R() ||
        rapmax >  _area_def.ghost_spec().ghost_maxrap()-0.95*jet_def().R()) {
      _range_warnings.warn("rapidity range for median (rho) extends beyond +-(ghost_maxrap - 0.95*R); this is likely to cause the results to be unreliable; safest option is to increase ghost_maxrap in the area definition");
    }
  }
}

virtual double fastjet::ClusterSequenceArea::area ( const PseudoJet & jet ) const [inline, virtual]

return the area associated with the given jet

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 80 of file ClusterSequenceArea.hh.

                                                          {
    return _area_base->area(jet);}

virtual PseudoJet fastjet::ClusterSequenceArea::area_4vector ( const PseudoJet & jet ) const [inline, virtual]

return the 4-vector area

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 89 of file ClusterSequenceArea.hh.

                                                              {
    return _area_base->area_4vector(jet);}

const AreaDefinition& fastjet::ClusterSequenceArea::area_def ( ) const [inline]

return a reference to the area definition

Definition at line 76 of file ClusterSequenceArea.hh.

{return _area_def;}

virtual double fastjet::ClusterSequenceArea::area_error ( const PseudoJet & jet ) const [inline, virtual]

return the error (uncertainty) associated with the determination of the area of this jet

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 85 of file ClusterSequenceArea.hh.

                                                          {
    return _area_base->area_error(jet);}

virtual double fastjet::ClusterSequenceArea::empty_area ( const RangeDefinition & range ) const [inline, virtual]

return the total area, in the given rap-phi range, that is free of jets

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 105 of file ClusterSequenceArea.hh.

                                                                 {
    return _area_base->empty_area(range);}

virtual void fastjet::ClusterSequenceArea::get_median_rho_and_sigma	(	const std::vector< PseudoJet > &	all_jets,
		const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma,
		double &	mean_area,
		bool	all_are_incl = `false`
	)		const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 131 of file ClusterSequenceArea.hh.

                                                                         {
    _warn_if_range_unsuitable(range);
    ClusterSequenceAreaBase::get_median_rho_and_sigma(
                                 all_jets, range, use_area_4vector,
                                 median, sigma, mean_area, all_are_incl);
  }

virtual void fastjet::ClusterSequenceArea::get_median_rho_and_sigma	(	const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma
	)		const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 147 of file ClusterSequenceArea.hh.

                                                                               {
    ClusterSequenceAreaBase::get_median_rho_and_sigma(range,use_area_4vector,
                                                      median,sigma);
  }

virtual void fastjet::ClusterSequenceArea::get_median_rho_and_sigma	(	const RangeDefinition &	range,
		bool	use_area_4vector,
		double &	median,
		double &	sigma,
		double &	mean_area
	)		const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the multi-argument version above, we have to override the 5-argument version too.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 158 of file ClusterSequenceArea.hh.

                                                                  {
    ClusterSequenceAreaBase::get_median_rho_and_sigma(range,use_area_4vector,
                                                      median,sigma, mean_area);
  }

virtual bool fastjet::ClusterSequenceArea::has_explicit_ghosts ( ) const [inline, virtual]

true if this ClusterSequence has explicit ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 123 of file ClusterSequenceArea.hh.

                                           {
    return _area_base->has_explicit_ghosts();
  }

template<class L >

void fastjet::ClusterSequenceArea::initialize_and_run_cswa	(	const std::vector< L > &	pseudojets,
		const JetDefinition &	jet_def
	)		`[private]`

Definition at line 199 of file ClusterSequenceArea.hh.

References fastjet::active_area, fastjet::active_area_explicit_ghosts, fastjet::one_ghost_passive_area, fastjet::passive_area, and fastjet::voronoi_area.

 {

  ClusterSequenceAreaBase * _area_base_ptr;
  switch(_area_def.area_type()) {
  case active_area:
    _area_base_ptr = new ClusterSequenceActiveArea(pseudojets,
                                                   jet_def,
                                                   _area_def.ghost_spec());
    break;
  case active_area_explicit_ghosts:
    if (_area_def.ghost_spec().repeat() != 1)
      _explicit_ghosts_repeats_warnings.warn("Requested active area with explicit ghosts with repeat != 1; only 1 set of ghosts will be used");
    _area_base_ptr = new ClusterSequenceActiveAreaExplicitGhosts(pseudojets,
                                                   jet_def,
                                                   _area_def.ghost_spec());
    break;
  case voronoi_area:
    _area_base_ptr = new ClusterSequenceVoronoiArea(pseudojets,
                                                   jet_def,
                                                   _area_def.voronoi_spec());
    break;
  case one_ghost_passive_area:
    _area_base_ptr = new ClusterSequence1GhostPassiveArea(pseudojets,
                                                    jet_def,
                                                    _area_def.ghost_spec());
    break;
  case passive_area:
    _area_base_ptr = new ClusterSequencePassiveArea(pseudojets,
                                                    jet_def,
                                                    _area_def.ghost_spec());
    break;
  default:
    std::cerr << "Error: unrecognized area_type in ClusterSequenceArea:"
              << _area_def.area_type() << std::endl;
    exit(-1);
  }
  // now copy across the information from the area base class
  _area_base = std::auto_ptr<ClusterSequenceAreaBase>(_area_base_ptr);
  transfer_from_sequence(*_area_base);
}

virtual bool fastjet::ClusterSequenceArea::is_pure_ghost ( const PseudoJet & jet ) const [inline, virtual]

true if a jet is made exclusively of ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 118 of file ClusterSequenceArea.hh.

                                                          {
    return _area_base->is_pure_ghost(jet);
  }

virtual double fastjet::ClusterSequenceArea::n_empty_jets ( const RangeDefinition & range ) const [inline, virtual]

return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.

For the local implementation we return empty_area/(0.55 pi R^2), based on measured properties of ghost jets with kt and cam. Note that the number returned is a double.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 113 of file ClusterSequenceArea.hh.

                                                                   {
    return _area_base->n_empty_jets(range);
  }

virtual void fastjet::ClusterSequenceArea::parabolic_pt_per_unit_area	(	double &	a,
		double &	b,
		const RangeDefinition &	range,
		double	exclude_above = `-1.0`,
		bool	use_area_4vector = `false`
	)		const `[inline, virtual]`

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 170 of file ClusterSequenceArea.hh.

                                                                             {
    _warn_if_range_unsuitable(range);
    ClusterSequenceAreaBase::parabolic_pt_per_unit_area(
                                a,b,range, exclude_above, use_area_4vector);
  }
