#include <fastjet/SISConeBasePlugin.hh>

Inheritance diagram for fastjet::SISConeBasePlugin:

[legend]

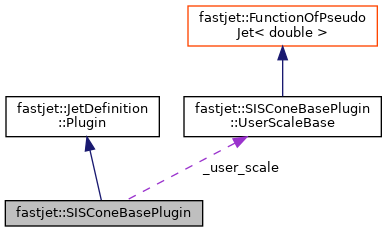

Collaboration diagram for fastjet::SISConeBasePlugin:

[legend]

Classes
class	UserScaleBase
	base class for user-defined ordering of stable cones (used for prorgessive removal) More...

class	UserScaleBaseStructureType
	template class derived from UserScaleBase::StryctureType that works for both SISCone jet classes implemented below More...

Public Member Functions
	SISConeBasePlugin ()
	default ctor More...

	SISConeBasePlugin (const SISConeBasePlugin &plugin)
	copy constructor More...

void	set_progressive_removal (bool progressive_removal_in=true)
	set whether to use SISCone with progressive removal instead of the default split_merge step. More...

bool	progressive_removal () const
	returns true if progressive_removal is enabled More...

double	cone_radius () const
	the cone radius More...

double	overlap_threshold () const
	Fraction of overlap energy in a jet above which jets are merged and below which jets are split. More...

int	n_pass_max () const
	the maximum number of passes of stable-cone searching (<=0 is same as infinity). More...

void	set_split_merge_stopping_scale (double scale)
	set the "split_merge_stopping_scale": if the scale variable for all protojets is below this, then stop the split-merge procedure and keep only those jets found so far. More...

double	split_merge_stopping_scale ()
	return the value of the split_merge_stopping_scale (see set_split_merge_stopping_scale(...) for description) More...

void	set_use_jet_def_recombiner (bool choice)
	allow the user to decide if one uses the jet_def's own recombination scheme More...

bool	use_jet_def_recombiner () const
	indicate if the jet_def's recombination scheme is being used More...

bool	caching () const
	indicates whether caching is turned on or not. More...

virtual double	R () const
	the plugin mechanism's standard way of accessing the jet radius More...

virtual bool	supports_ghosted_passive_areas () const
	return true since there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area. More...

virtual void	set_ghost_separation_scale (double scale) const
	set the ghost separation scale for passive area determinations just in the next run (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable) More...

virtual double	ghost_separation_scale () const

void	set_user_scale (const UserScaleBase *user_scale_in)
	set a user-defined scale for stable-cone ordering in progressive removal More...

const UserScaleBase *	user_scale () const
	returns the user-defined scale in use (0 if none) More...

virtual std::string	description () const =0
	plugin description More...

virtual void	run_clustering (ClusterSequence &) const =0
	really do the clustering work More...

Public Member Functions inherited from fastjet::JetDefinition::Plugin
virtual std::string	description () const =0
	return a textual description of the jet-definition implemented in this plugin More...

virtual void	run_clustering (ClusterSequence &) const =0
	given a ClusterSequence that has been filled up with initial particles, the following function should fill up the rest of the ClusterSequence, using the following member functions of ClusterSequence: More...

virtual double	R () const =0

virtual bool	supports_ghosted_passive_areas () const
	return true if there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area. More...

virtual void	set_ghost_separation_scale (double scale) const
	set the ghost separation scale for passive area determinations in future runs (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable) More...

virtual double	ghost_separation_scale () const

virtual bool	exclusive_sequence_meaningful () const
	if this returns false then a warning will be given whenever the user requests "exclusive" jets from the cluster sequence More...

virtual bool	is_spherical () const
	returns true if the plugin implements an algorithm intended for use on a spherical geometry (e.g. More...

virtual	~Plugin ()
	a destructor to be replaced if necessary in derived classes... More...

Protected Member Functions
virtual void	reset_stored_plugin () const =0
	call the re-clustering itself More...

Protected Attributes
double	_cone_radius

double	_overlap_threshold

int	_n_pass_max

bool	_caching

double	_split_merge_stopping_scale

bool	_use_jet_def_recombiner

bool	_progressive_removal

double	_ghost_sep_scale

const UserScaleBase *	_user_scale

Detailed Description

Definition at line 40 of file SISConeBasePlugin.hh.

Constructor & Destructor Documentation

◆ SISConeBasePlugin() [1/2]

fastjet::SISConeBasePlugin::SISConeBasePlugin ( )

inline

default ctor

Definition at line 43 of file SISConeBasePlugin.hh.

◆ SISConeBasePlugin() [2/2]

fastjet::SISConeBasePlugin::SISConeBasePlugin ( const SISConeBasePlugin & plugin )

inline

copy constructor

Definition at line 49 of file SISConeBasePlugin.hh.

Member Function Documentation

◆ set_progressive_removal()

void fastjet::SISConeBasePlugin::set_progressive_removal ( bool progressive_removal_in = true )

inline

set whether to use SISCone with progressive removal instead of the default split_merge step.

If progressive removal is enabled, the following SISCone variables are not used:

overlap_threshold
caching
split_merge_stopping_scale

The split_merge_scale choice is reinterpreted as the ordering variable for progressive removal. It is also possible for the user to supply his/her own function for the scale that orders progressive removal, with set_user_scale(...)

Definition at line 67 of file SISConeBasePlugin.hh.

◆ progressive_removal()

bool fastjet::SISConeBasePlugin::progressive_removal ( ) const

inline

returns true if progressive_removal is enabled

Definition at line 72 of file SISConeBasePlugin.hh.

◆ cone_radius()

double fastjet::SISConeBasePlugin::cone_radius ( ) const

inline

the cone radius

Definition at line 75 of file SISConeBasePlugin.hh.

◆ overlap_threshold()

double fastjet::SISConeBasePlugin::overlap_threshold ( ) const

inline

Fraction of overlap energy in a jet above which jets are merged and below which jets are split.

Definition at line 79 of file SISConeBasePlugin.hh.

◆ n_pass_max()

int fastjet::SISConeBasePlugin::n_pass_max ( ) const

inline

the maximum number of passes of stable-cone searching (<=0 is same as infinity).

Definition at line 83 of file SISConeBasePlugin.hh.

◆ set_split_merge_stopping_scale()

void fastjet::SISConeBasePlugin::set_split_merge_stopping_scale ( double scale )

inline

set the "split_merge_stopping_scale": if the scale variable for all protojets is below this, then stop the split-merge procedure and keep only those jets found so far.

This is useful in determination of areas of hard jets because it can be used to avoid running the split-merging on the pure ghost-part of the event.

Definition at line 91 of file SISConeBasePlugin.hh.

◆ split_merge_stopping_scale()

double fastjet::SISConeBasePlugin::split_merge_stopping_scale ( )

inline

return the value of the split_merge_stopping_scale (see set_split_merge_stopping_scale(...) for description)

Definition at line 96 of file SISConeBasePlugin.hh.

◆ set_use_jet_def_recombiner()

void fastjet::SISConeBasePlugin::set_use_jet_def_recombiner ( bool choice )

inline

allow the user to decide if one uses the jet_def's own recombination scheme

Definition at line 99 of file SISConeBasePlugin.hh.

◆ use_jet_def_recombiner()

bool fastjet::SISConeBasePlugin::use_jet_def_recombiner ( ) const

inline

indicate if the jet_def's recombination scheme is being used

Definition at line 102 of file SISConeBasePlugin.hh.

◆ caching()

bool fastjet::SISConeBasePlugin::caching ( ) const

inline

indicates whether caching is turned on or not.

Definition at line 105 of file SISConeBasePlugin.hh.

◆ R()

virtual double fastjet::SISConeBasePlugin::R ( ) const

inlinevirtual

the plugin mechanism's standard way of accessing the jet radius

Implements fastjet::JetDefinition::Plugin.

Definition at line 108 of file SISConeBasePlugin.hh.

◆ supports_ghosted_passive_areas()

virtual bool fastjet::SISConeBasePlugin::supports_ghosted_passive_areas ( ) const

inlinevirtual

return true since there is specific support for the measurement of passive areas, in the sense that areas determined from all particles below the ghost separation scale will be a passive area.

Reimplemented from fastjet::JetDefinition::Plugin.

Reimplemented in fastjet::SISConeSphericalPlugin.

Definition at line 114 of file SISConeBasePlugin.hh.

◆ set_ghost_separation_scale()

virtual void fastjet::SISConeBasePlugin::set_ghost_separation_scale ( double scale ) const

inlinevirtual

set the ghost separation scale for passive area determinations just in the next run (strictly speaking that makes the routine a non const, so related internal info must be stored as a mutable)

Reimplemented from fastjet::JetDefinition::Plugin.

Definition at line 121 of file SISConeBasePlugin.hh.

◆ ghost_separation_scale()

virtual double fastjet::SISConeBasePlugin::ghost_separation_scale ( ) const

inlinevirtual

Reimplemented from fastjet::JetDefinition::Plugin.

Definition at line 125 of file SISConeBasePlugin.hh.

◆ set_user_scale()

void fastjet::SISConeBasePlugin::set_user_scale ( const UserScaleBase * user_scale_in )

inline

set a user-defined scale for stable-cone ordering in progressive removal

Definition at line 183 of file SISConeBasePlugin.hh.

◆ user_scale()

const UserScaleBase * fastjet::SISConeBasePlugin::user_scale ( ) const

inline

returns the user-defined scale in use (0 if none)

Definition at line 186 of file SISConeBasePlugin.hh.

◆ description()

virtual std::string fastjet::SISConeBasePlugin::description ( ) const

pure virtual

plugin description

Implements fastjet::JetDefinition::Plugin.

Implemented in fastjet::SISConePlugin, and fastjet::SISConeSphericalPlugin.

◆ run_clustering()

virtual void fastjet::SISConeBasePlugin::run_clustering ( ClusterSequence & ) const

pure virtual

really do the clustering work

Implements fastjet::JetDefinition::Plugin.

Implemented in fastjet::SISConePlugin, and fastjet::SISConeSphericalPlugin.

◆ reset_stored_plugin()

virtual void fastjet::SISConeBasePlugin::reset_stored_plugin ( ) const

protectedpure virtual

call the re-clustering itself

Implemented in fastjet::SISConePlugin, and fastjet::SISConeSphericalPlugin.

Member Data Documentation

◆ _cone_radius

double fastjet::SISConeBasePlugin::_cone_radius

protected

Definition at line 199 of file SISConeBasePlugin.hh.

◆ _overlap_threshold

double fastjet::SISConeBasePlugin::_overlap_threshold

protected

Definition at line 199 of file SISConeBasePlugin.hh.

◆ _n_pass_max

int fastjet::SISConeBasePlugin::_n_pass_max

protected

Definition at line 200 of file SISConeBasePlugin.hh.

◆ _caching

bool fastjet::SISConeBasePlugin::_caching

protected

Definition at line 201 of file SISConeBasePlugin.hh.

◆ _split_merge_stopping_scale

double fastjet::SISConeBasePlugin::_split_merge_stopping_scale

protected

Definition at line 202 of file SISConeBasePlugin.hh.

◆ _use_jet_def_recombiner

bool fastjet::SISConeBasePlugin::_use_jet_def_recombiner

protected

Definition at line 203 of file SISConeBasePlugin.hh.

◆ _progressive_removal

bool fastjet::SISConeBasePlugin::_progressive_removal

protected

Definition at line 204 of file SISConeBasePlugin.hh.

◆ _ghost_sep_scale

double fastjet::SISConeBasePlugin::_ghost_sep_scale

mutableprotected

Definition at line 206 of file SISConeBasePlugin.hh.

◆ _user_scale

const UserScaleBase* fastjet::SISConeBasePlugin::_user_scale

protected

Definition at line 212 of file SISConeBasePlugin.hh.

The documentation for this class was generated from the following file:

plugins/SISCone/fastjet/SISConeBasePlugin.hh
