template class derived from UserScaleBase::StryctureType that works for both SISCone jet classes implemented below
More...
#include <fastjet/SISConeBasePlugin.hh>
Inheritance diagram for fastjet::SISConeBasePlugin::UserScaleBaseStructureType< Tjet >:

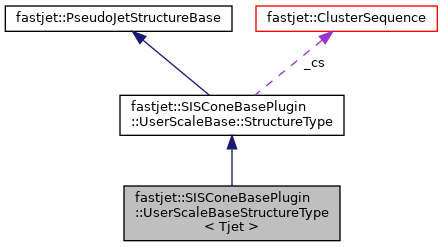

Collaboration diagram for fastjet::SISConeBasePlugin::UserScaleBaseStructureType< Tjet >:
Public Member Functions | |
| UserScaleBaseStructureType (const Tjet &jet, const ClusterSequence &cs) | |
| virtual | ~UserScaleBaseStructureType () |
| empty virtual dtor More... | |
| virtual unsigned int | size () const |
| returns the number of constituents More... | |
| virtual int | constituent_index (unsigned int i) const |
| returns the index (in the original particle list) of the ith constituent More... | |
| virtual double | ordering_var2 () const |
| returns the sm_var2 (signed ordering variable squared) for this stable cone More... | |
 Public Member Functions inherited from fastjet::SISConeBasePlugin::UserScaleBase::StructureType | |
| StructureType (const ClusterSequence &cs) | |
| base ctor (constructed from a ClusterSequence tin order to have access to the initial particles More... | |
| virtual | ~StructureType () |
| empty virtual dtor More... | |
| virtual std::string | description () const |
| the textual descripotion More... | |
| virtual bool | has_constituents () const |
| this structure has constituents More... | |
| virtual std::vector< PseudoJet > | constituents (const PseudoJet &) const |
| retrieve the constituents More... | |
| virtual unsigned int | size () const =0 |
| returns the number of constituents More... | |
| virtual int | constituent_index (unsigned int i) const =0 |
| returns the index (in the original particle list) of the ith constituent More... | |
| const PseudoJet & | constituent (unsigned int i) const |
| returns the ith constituent (as a PseusoJet) More... | |
| virtual double | ordering_var2 () const =0 |
| returns the sm_var2 (signed ordering variable squared) for this stable cone More... | |
| Public Member Functions inherited from fastjet::PseudoJetStructureBase | |
| PseudoJetStructureBase () | |
| default ctor More... | |
| virtual | ~PseudoJetStructureBase () |
| default (virtual) dtor More... | |
| virtual std::string | description () const |
| description More... | |
| virtual bool | has_associated_cluster_sequence () const |
| returns true if there is an associated ClusterSequence More... | |
| virtual const ClusterSequence * | associated_cluster_sequence () const |
| get a (const) pointer to the parent ClusterSequence (NULL if inexistent) More... | |
| virtual bool | has_valid_cluster_sequence () const |
| returns true if this PseudoJet has an associated and still valid ClusterSequence. More... | |
| virtual const ClusterSequence * | validated_cs () const |
| if the jet has a valid associated cluster sequence then return a pointer to it; otherwise throw an error More... | |
| virtual const ClusterSequenceAreaBase * | validated_csab () const |
| if the jet has valid area information then return a pointer to the associated ClusterSequenceAreaBase object; otherwise throw an error More... | |
| virtual bool | has_partner (const PseudoJet &reference, PseudoJet &partner) const |
| check if it has been recombined with another PseudoJet in which case, return its partner through the argument. More... | |
| virtual bool | has_child (const PseudoJet &reference, PseudoJet &child) const |
| check if it has been recombined with another PseudoJet in which case, return its child through the argument. More... | |
| virtual bool | has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const |
| check if it is the product of a recombination, in which case return the 2 parents through the 'parent1' and 'parent2' arguments. More... | |
| virtual bool | object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const |
| check if the reference PseudoJet is contained the second one passed as argument. More... | |
| virtual bool | has_exclusive_subjets () const |
| return true if the structure supports exclusive_subjets. More... | |
| virtual std::vector< PseudoJet > | exclusive_subjets (const PseudoJet &reference, const double &dcut) const |
| return a vector of all subjets of the current jet (in the sense of the exclusive algorithm) that would be obtained when running the algorithm with the given dcut. More... | |
| virtual int | n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const |
| return the size of exclusive_subjets(...); still n ln n with same coefficient, but marginally more efficient than manually taking exclusive_subjets.size() More... | |
| virtual std::vector< PseudoJet > | exclusive_subjets_up_to (const PseudoJet &reference, int nsub) const |
| return the list of subjets obtained by unclustering the supplied jet down to nsub subjets (or all constituents if there are fewer than nsub). More... | |
| virtual double | exclusive_subdmerge (const PseudoJet &reference, int nsub) const |
| return the dij that was present in the merging nsub+1 -> nsub subjets inside this jet. More... | |
| virtual double | exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const |
| return the maximum dij that occurred in the whole event at the stage that the nsub+1 -> nsub merge of subjets occurred inside this jet. More... | |
| virtual bool | has_pieces (const PseudoJet &) const |
| return true if the structure supports pieces. More... | |
| virtual std::vector< PseudoJet > | pieces (const PseudoJet &) const |
| retrieve the pieces building the jet. More... | |
| virtual bool | has_area () const |
| check if it has a defined area More... | |
| virtual double | area (const PseudoJet &reference) const |
| return the jet (scalar) area. More... | |
| virtual double | area_error (const PseudoJet &reference) const |
| return the error (uncertainty) associated with the determination of the area of this jet. More... | |
| virtual PseudoJet | area_4vector (const PseudoJet &reference) const |
| return the jet 4-vector area. More... | |
| virtual bool | is_pure_ghost (const PseudoJet &reference) const |
| true if this jet is made exclusively of ghosts. More... | |
Protected Attributes | |
| const Tjet & | _jet |
| a reference to the internal jet in SISCone More... | |
| Protected Attributes inherited from fastjet::SISConeBasePlugin::UserScaleBase::StructureType | |
| const ClusterSequence & | _cs |
| a reference to the CS (for access to the particles) More... | |
Detailed Description
template<class Tjet>
class fastjet::SISConeBasePlugin::UserScaleBaseStructureType< Tjet >
class fastjet::SISConeBasePlugin::UserScaleBaseStructureType< Tjet >
template class derived from UserScaleBase::StryctureType that works for both SISCone jet classes implemented below
Definition at line 342 of file SISConeBasePlugin.hh.
Constructor & Destructor Documentation
◆ UserScaleBaseStructureType()
template<class Tjet >
|
inline |
Definition at line 344 of file SISConeBasePlugin.hh.
◆ ~UserScaleBaseStructureType()
template<class Tjet >
|
inlinevirtual |
empty virtual dtor
Definition at line 348 of file SISConeBasePlugin.hh.
Member Function Documentation
◆ size()
template<class Tjet >
|
inlinevirtual |
returns the number of constituents
Implements fastjet::SISConeBasePlugin::UserScaleBase::StructureType.
Definition at line 354 of file SISConeBasePlugin.hh.
◆ constituent_index()
template<class Tjet >
|
inlinevirtual |
returns the index (in the original particle list) of the ith constituent
Implements fastjet::SISConeBasePlugin::UserScaleBase::StructureType.
Definition at line 360 of file SISConeBasePlugin.hh.
◆ ordering_var2()
template<class Tjet >
|
inlinevirtual |
returns the sm_var2 (signed ordering variable squared) for this stable cone
Implements fastjet::SISConeBasePlugin::UserScaleBase::StructureType.
Definition at line 370 of file SISConeBasePlugin.hh.
Member Data Documentation
◆ _jet
template<class Tjet >
|
protected |
a reference to the internal jet in SISCone
Definition at line 375 of file SISConeBasePlugin.hh.
The documentation for this class was generated from the following file:
- plugins/SISCone/fastjet/SISConeBasePlugin.hh
